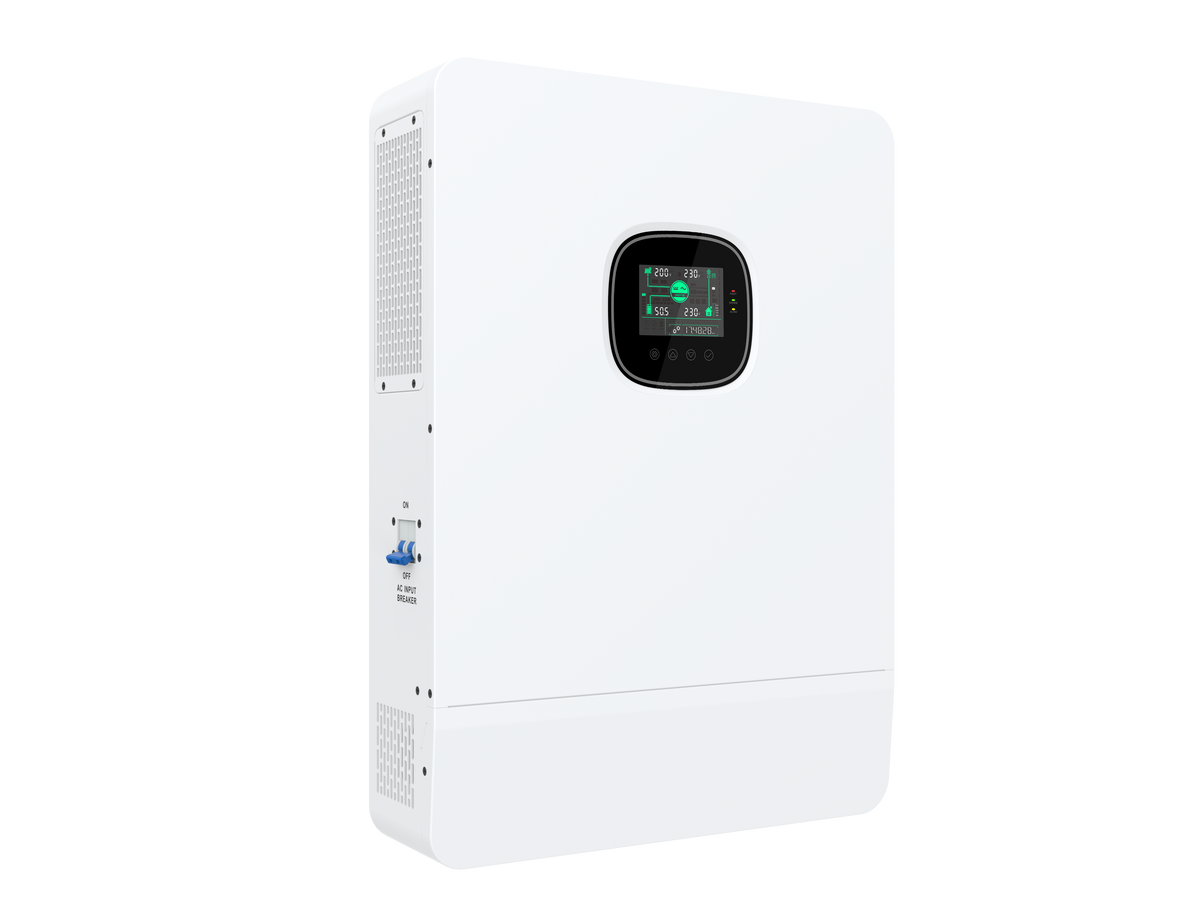

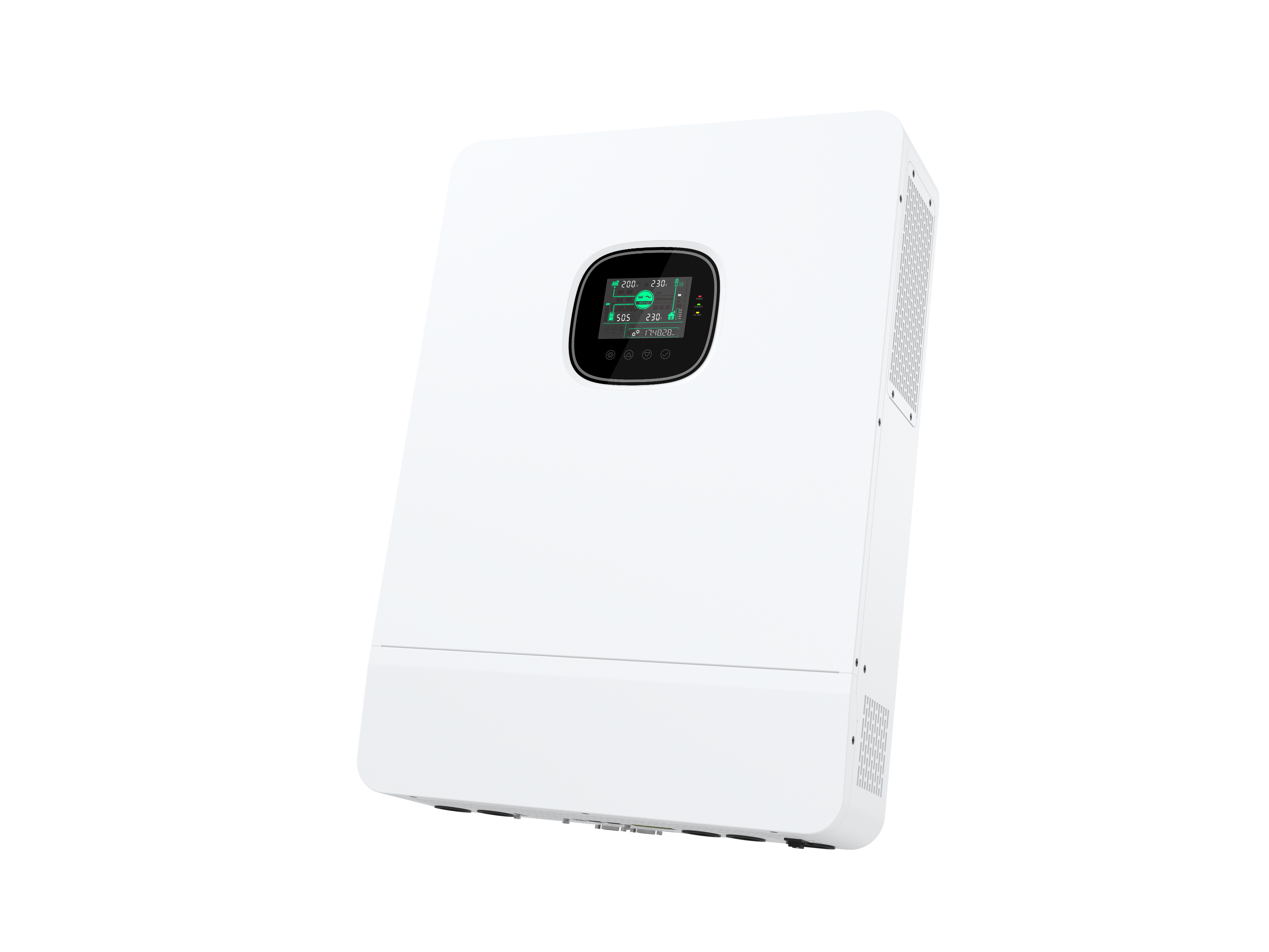

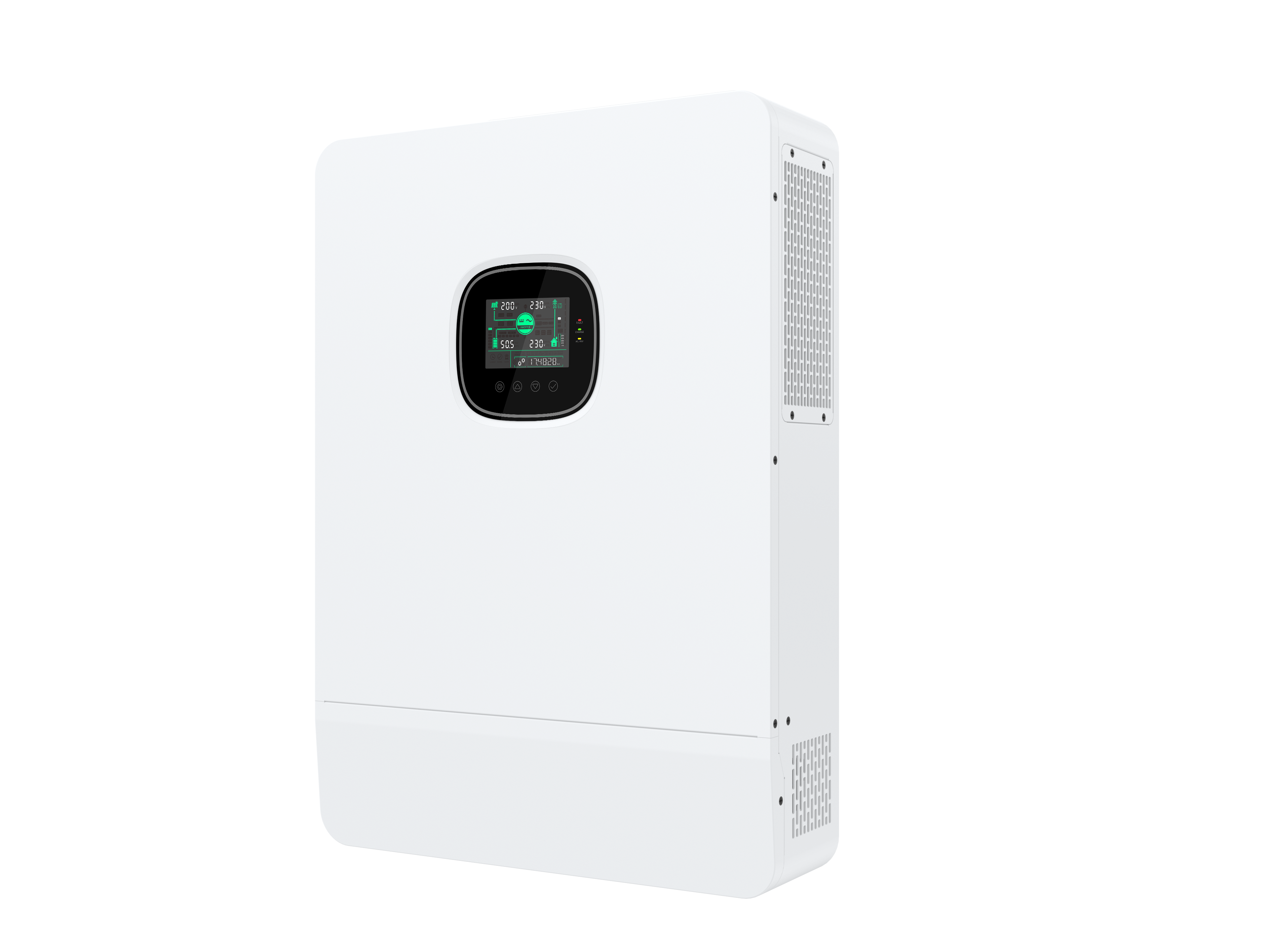

The SPI-10K-H3P 10kw hybrid solar inverter delivers efficient energy conversion with a European efficiency of 97.5% and supports diverse battery types including Li-ion and Lead-Acid.
Certified with IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3, and RoHS compliance, it ensures safety, electromagnetic compatibility, and market access for global buyers.

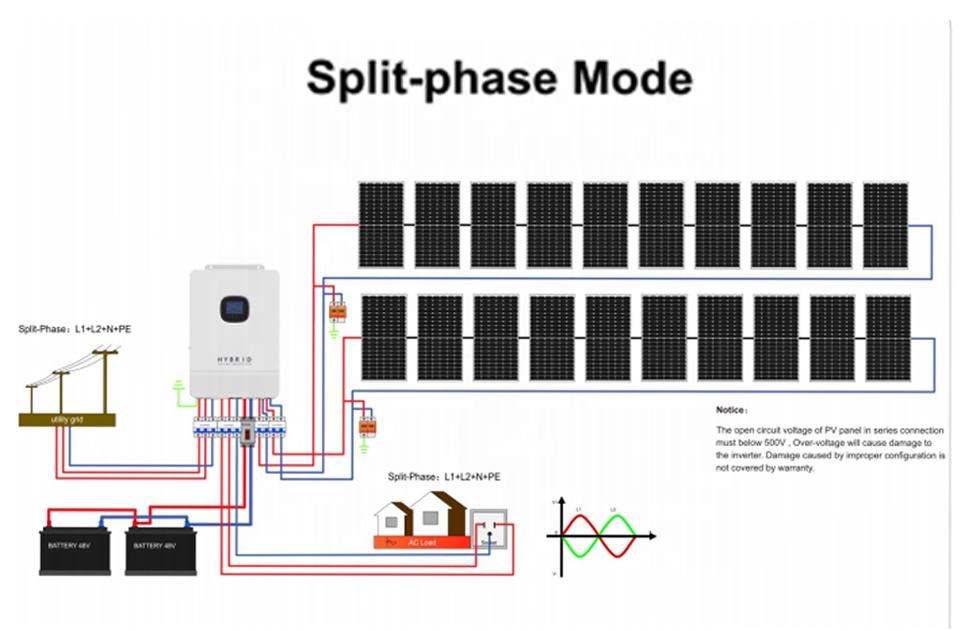

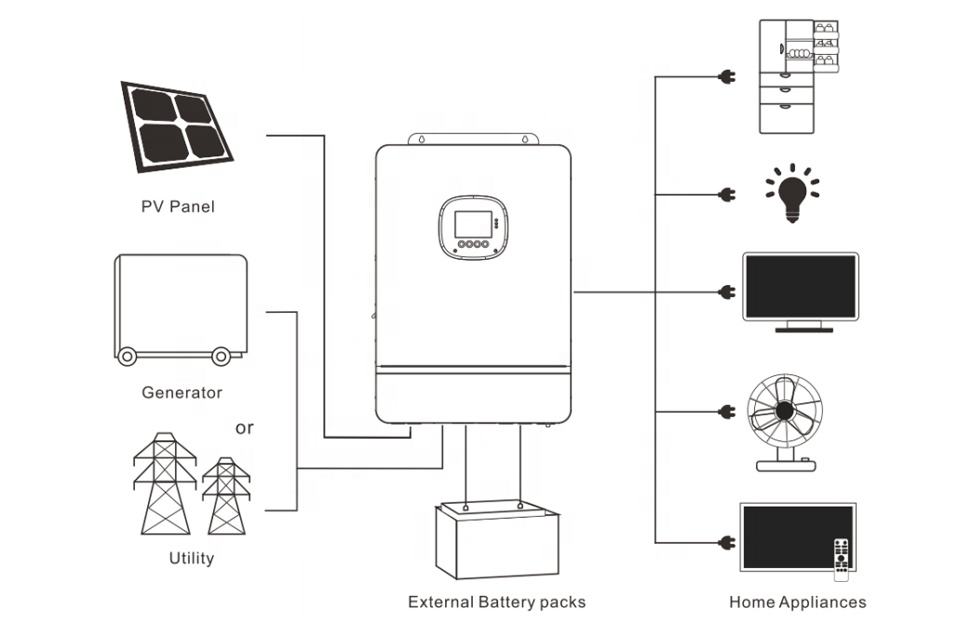

Supports connection to grid power, solar PV, and generators, with configurable time-of-use charging and discharging functionality.
Specification:
| MODEL | SPI-10K-H3P | SPI-12K-H3P | Can Be Set |
| INVERTER OUTPUT | |||
| Rated Output Power | 10,000W | 12,000W | |
| Max.Peak Power | 20,000W | 24,000W | |
| Rated Output Voltage | 400Vac, three-phase | √ | |
| Capacity of Motor Load | 6HP | 6HP | |
| Rated Frequency | 60Hz | √ | |
| Output Waveform | pure sine wave | ||
| Switching Time | 10ms (typical) | ||
| BATTERY | |||
| Battery Types | Li-ion /Lead-Acid /User Defined | √ | |
| Rated Battery Voltage | 48Vdc | ||
| Voltage Range | 40～60Vdc |
√ |
|
| Max.PV Charging Current | 220A | 260A |
√ |
| Max.Utility /Generator Charging Current | 120A | 120A | √ |
| Max.Hybrid Charging Current | 220A | 260A | √ |
| PV INPUT | |||
| No.of MPPT | 2 | ||
| Max.Input Power | 7,500W/7,500W | 9,000W/9,000W | |
| Max.Input Current | 22A/22A | ||
| Max.Open-circuit Voltage | 800Vdc/800Vdc | ||
| MPPT Operating Voltage Range | 200～650Vdc/200～650Vdc | ||
| UTILITY /GENERATOR INPUT | |||
| Input Voltage Range | phase voltage 170~280V,line voltage 305~485V | ||
| Input Frequency Range | 50/60Hz | ||
| Bypass Overload Current | 63A | ||
| EFFICIENCY | |||
| MPPT Tracking Effciency | 99.9% | ||
| Max.Battery Inverter Effciency | ≥92% | ||
| European Efficiency | 97.5% | 97.5% | |
| GENERAL | |||
| Dimensions | 620*445*130mm | ||
| Weight | 27kg | ||
| Protection Degree | IP20,indoor only | ||
| Ambient Temp | -10~55℃,>45℃ derated | ||
| Noise | <60dB | ||
| Cooling Method | air cooling | ||
| Warranty | 18 months | ||
| COMMUNICATION | |||

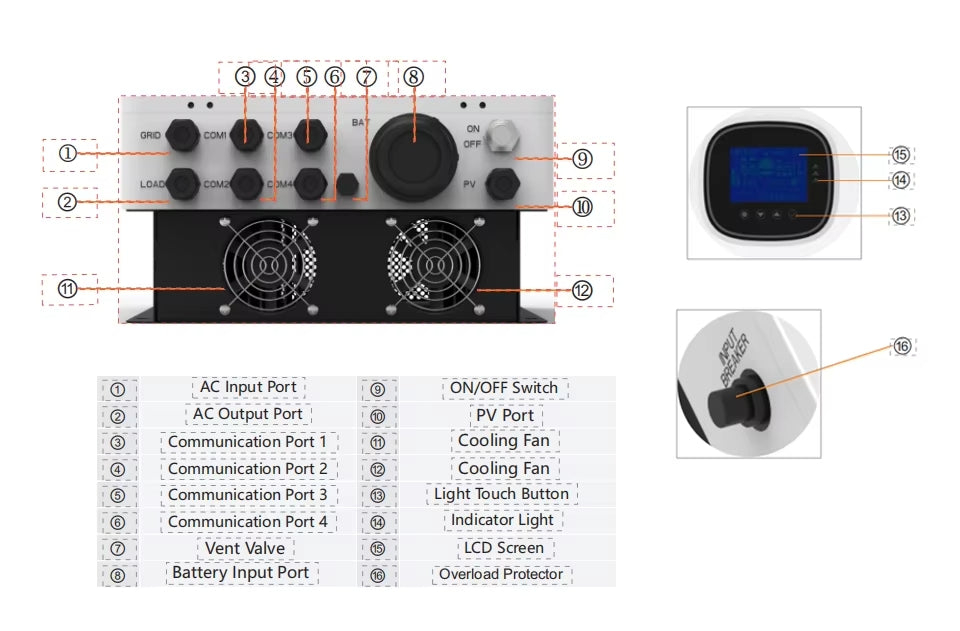

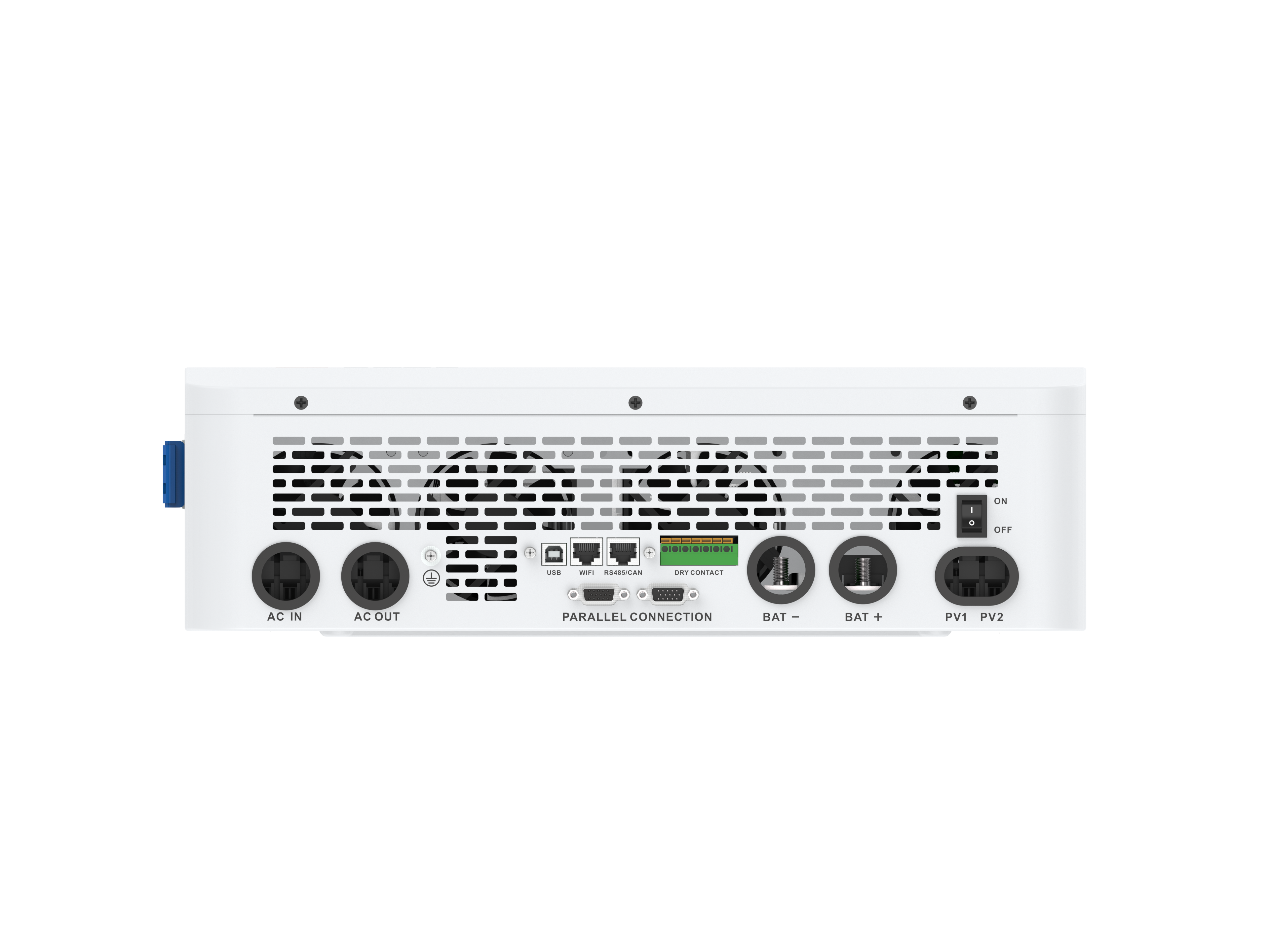

| Internal Interface | RS485/CAN/USB /Dry contact | √ | |
| External Module (optional) | Wi-Fi/GPRS | √ | |
| CERTIFICATION | |||
| Safety | IEC62109-1,IEC62109-2,UL1741 | ||
| EMC | EN61000-6-1,EN61000-6-3,FCC15 classB | ||
| RoHS | Yes | ||
