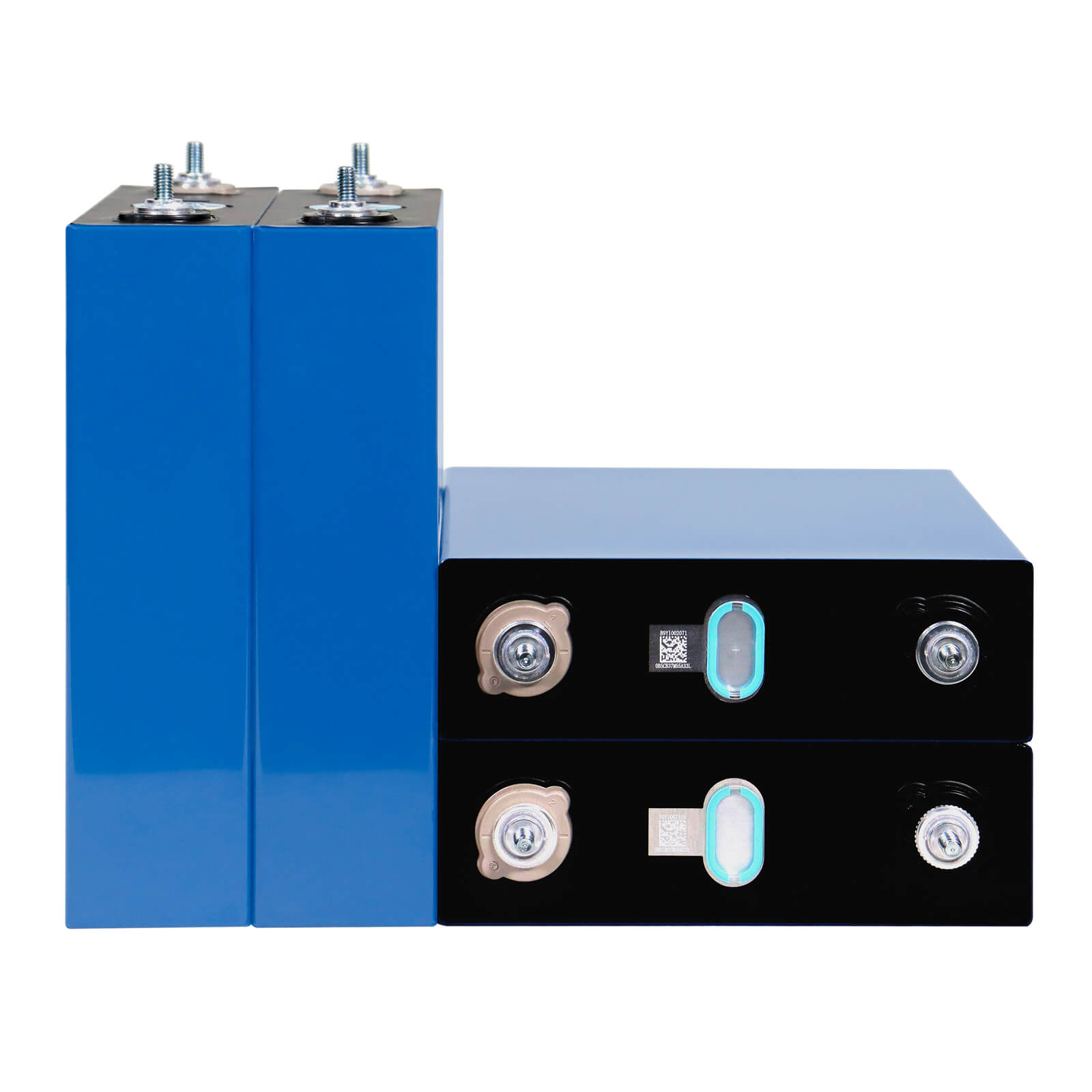

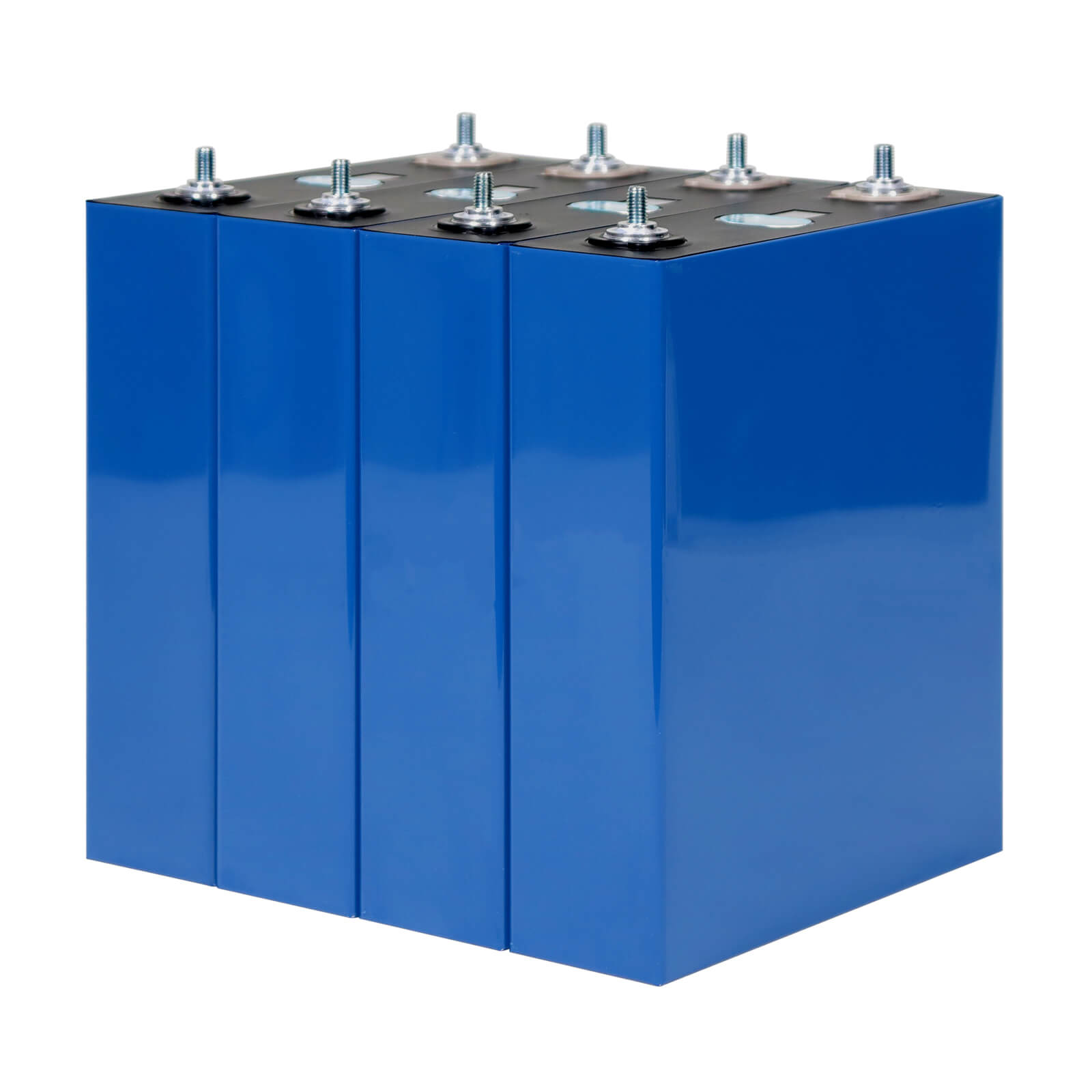

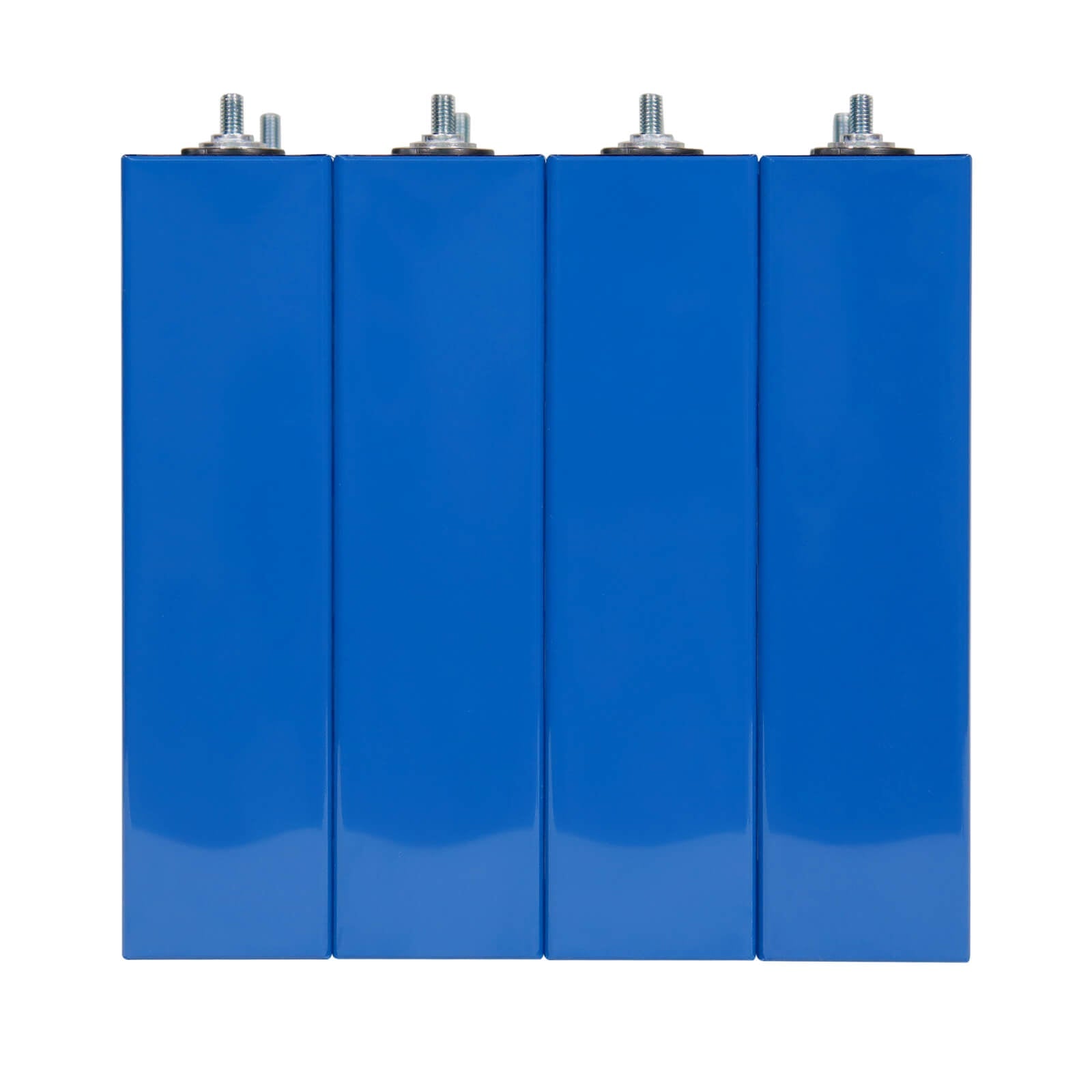

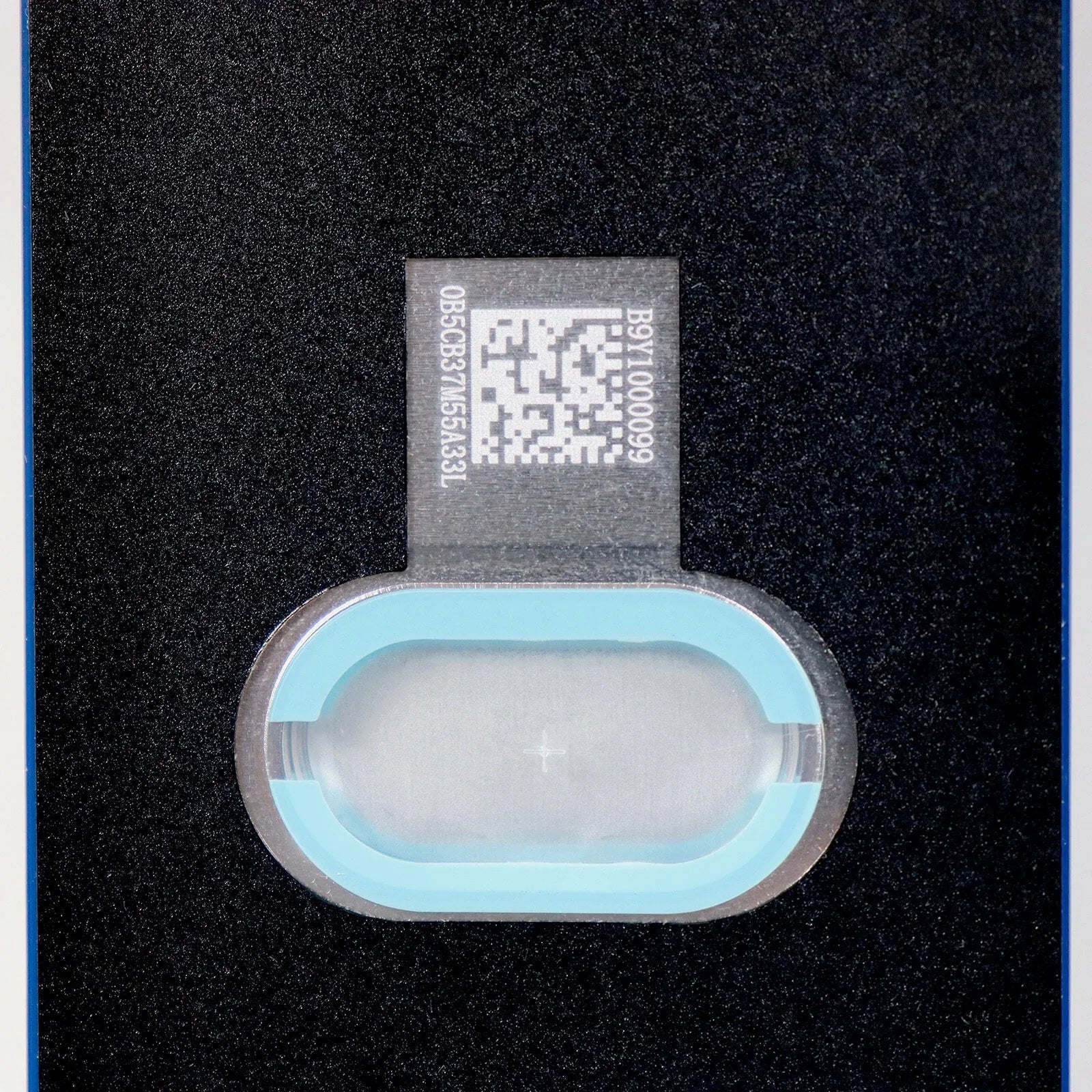

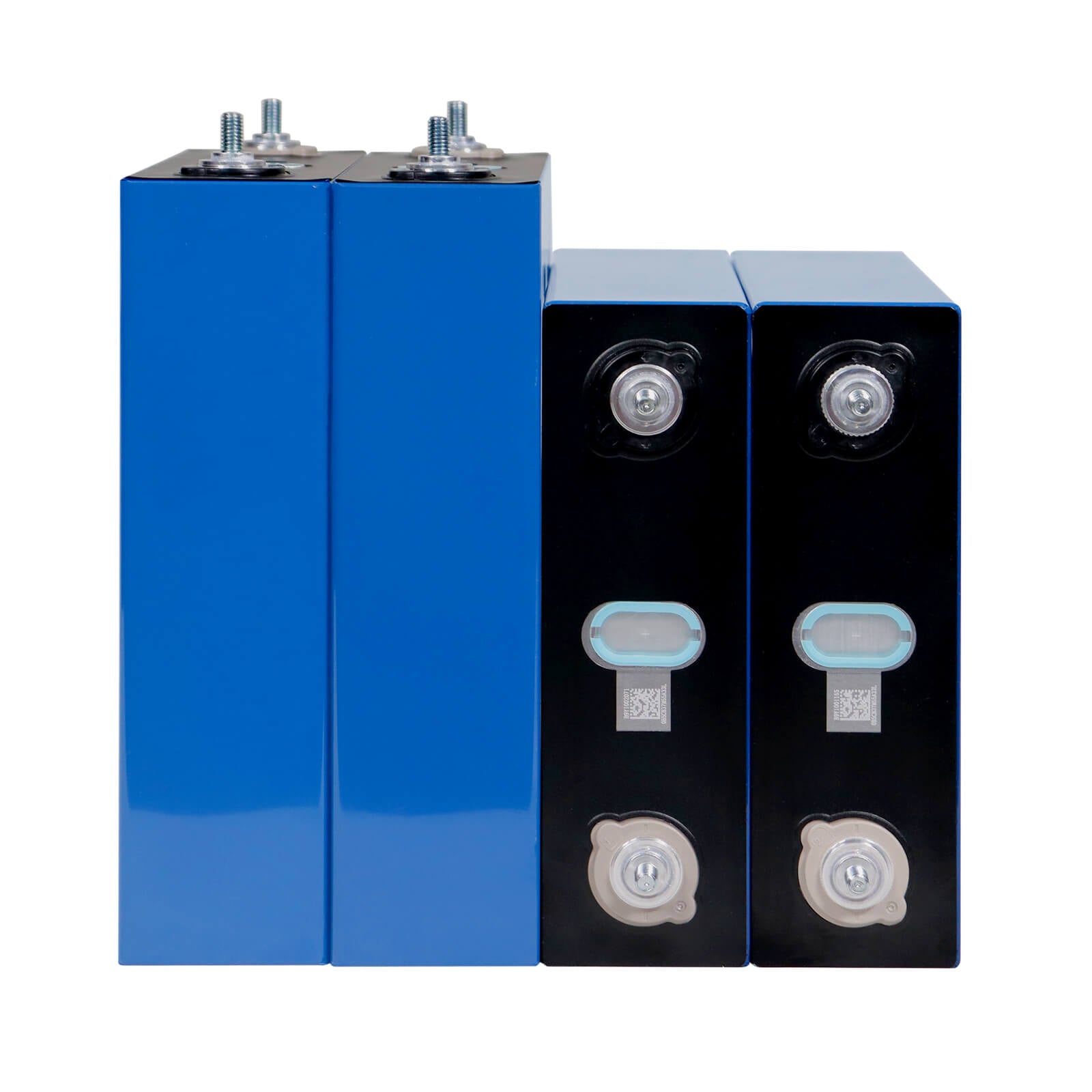

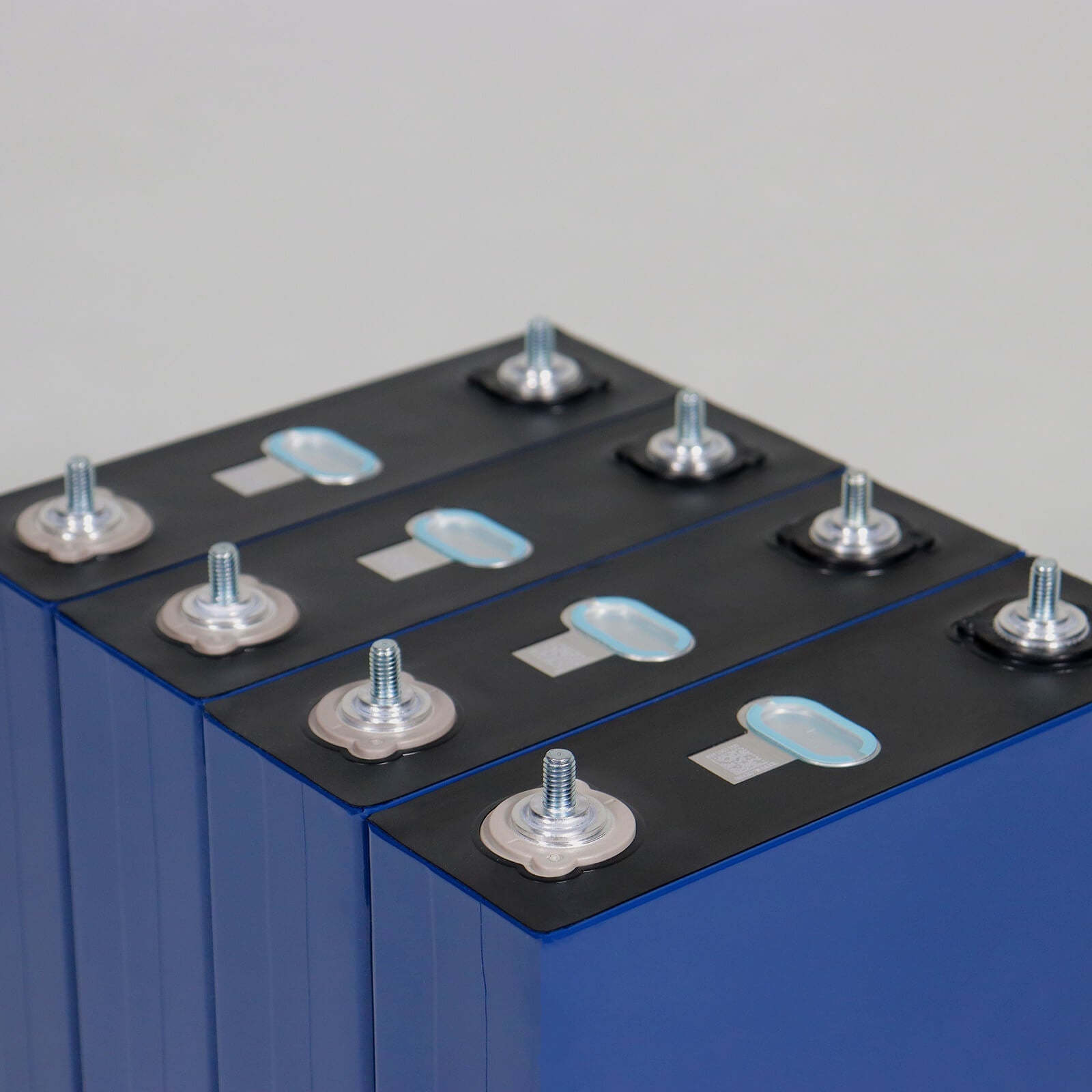

CALB 3.2V 230Ah LiFePO4 Battery Cells - Brand New Grade A with QR Code

1. Free Shipping (Free standard shipping on all orders)

2. 5-Year Warranty (Backed up by technical support within 24hrs)

3. Free Returns (30 Days Hassle Free Return to Our EU Warehouse)

4. 100% Payment Secure (We ensure secure payment with PayPal and credit card)

Note: The Selling Price is the final price, with Free Tax, Free Shipping, and Free Customs! You don't need to pay any other fees. No tax is collected, and you do not need to pay any additional taxes.

Specification

Battery brand: CALB
Battery model: L173F230
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5 V – 3.65 V
Nominal capacity: 230Ah
AC. 1kHz Impedance Resistance: ≤0.3mΩ (Fresh Cell, 30% SOC)
Weight: 4.17±0.16kg

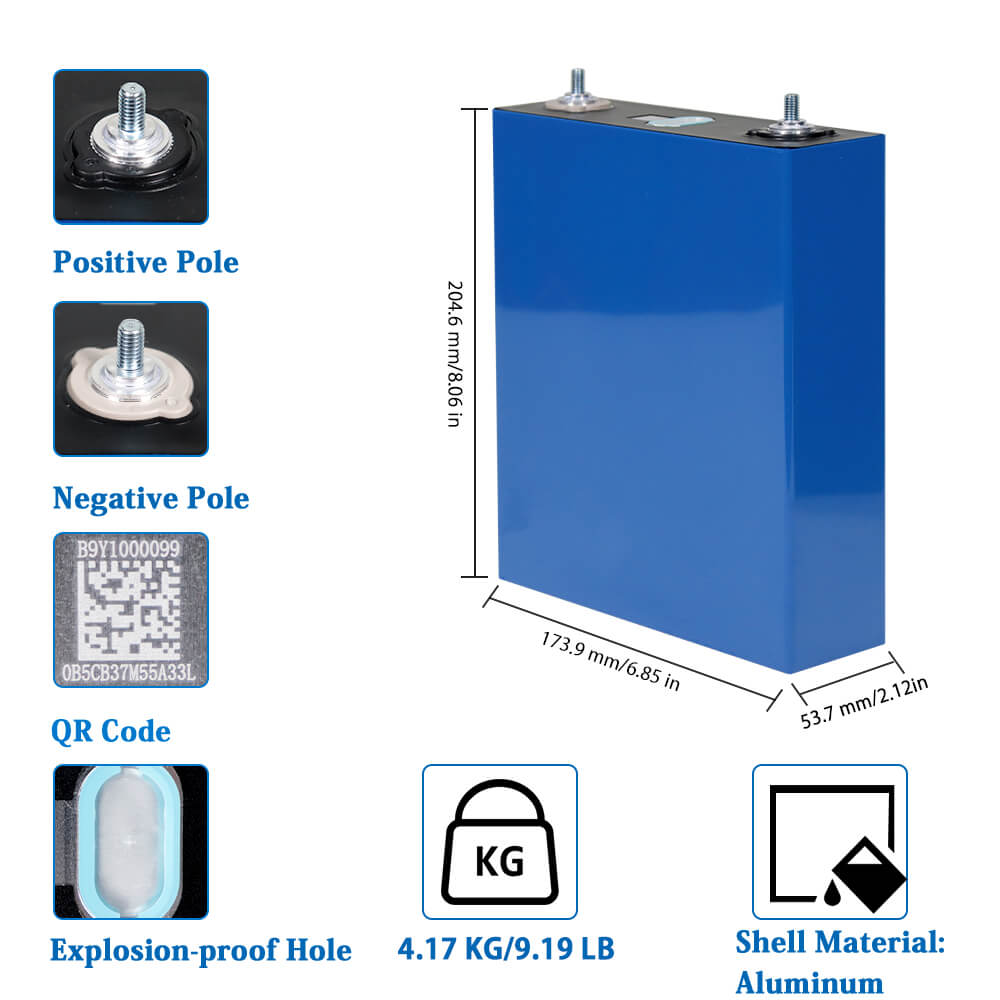

Dimensions L*W*H (mm): 207.2(with Pole)*173.9*53.72

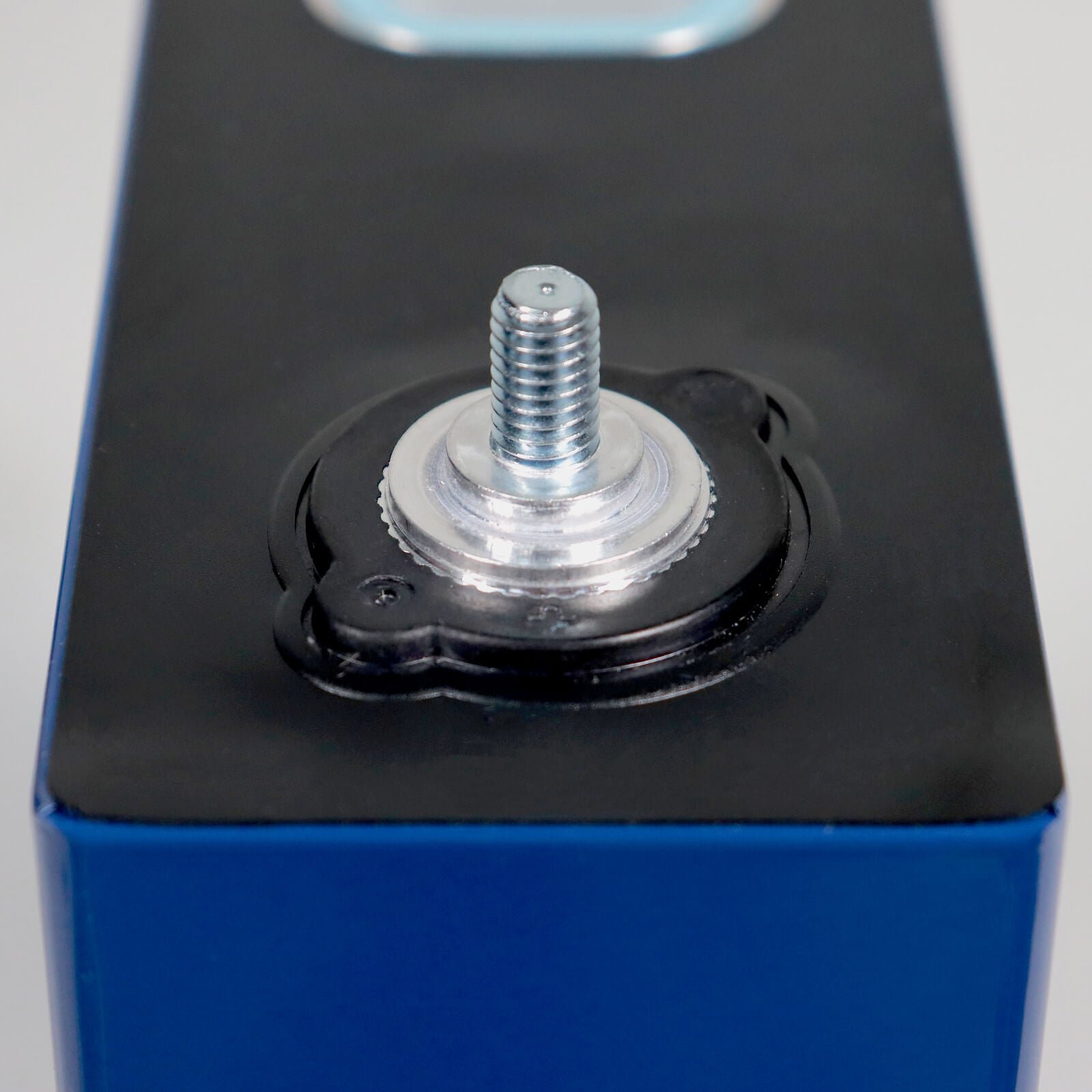

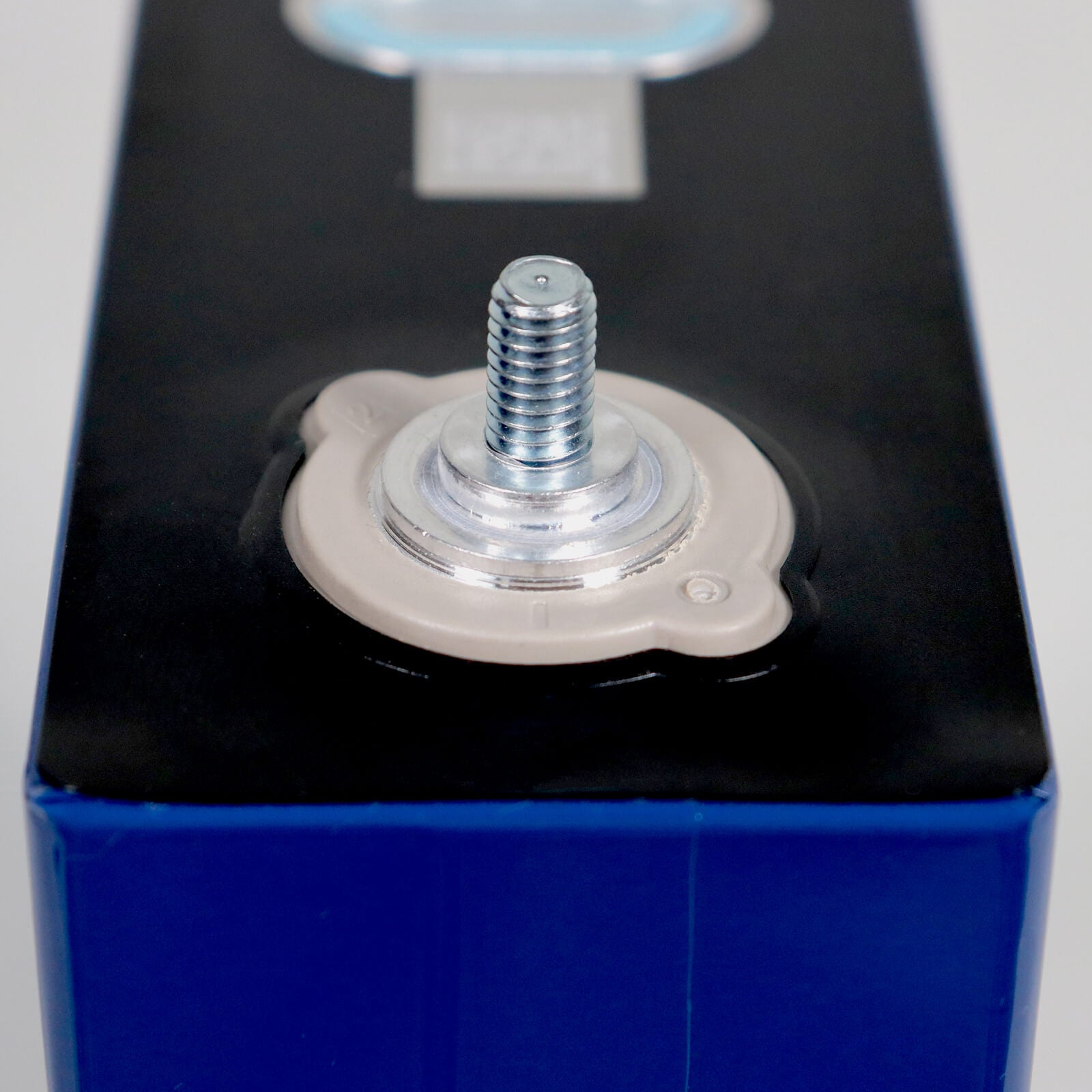

Terminal: M6 Screw Hole
Cycle life: ≥4000Cycles(1C/1C, 25±5°C, SOC 80%)
Standard Charge/Discharge Current: 1C/1C
Standard Charge/Discharge Cut-off Voltage: 3.65V/2.5V
Continuous Charge/Discharge Current: 1C/1C
Max Pulse Charge/Discharge Ccurrent(10s): 690A/690A
Recommended SOC window: 10%～90%
Charging Temperature: 0℃~55℃
Discharging Temperature: -36℃~65℃
Storage Temperature: -20°C~45°C

Download Document:

CALB 230Ah LiFePO4 Cell Product Specification
