Details：
Capacity: 105 Ah
Maximum discharge rate: 1C (105Ah)
Dimensions: 50.1±0.5 mm x 128.5±0.5 mm x 160±0.8 mm

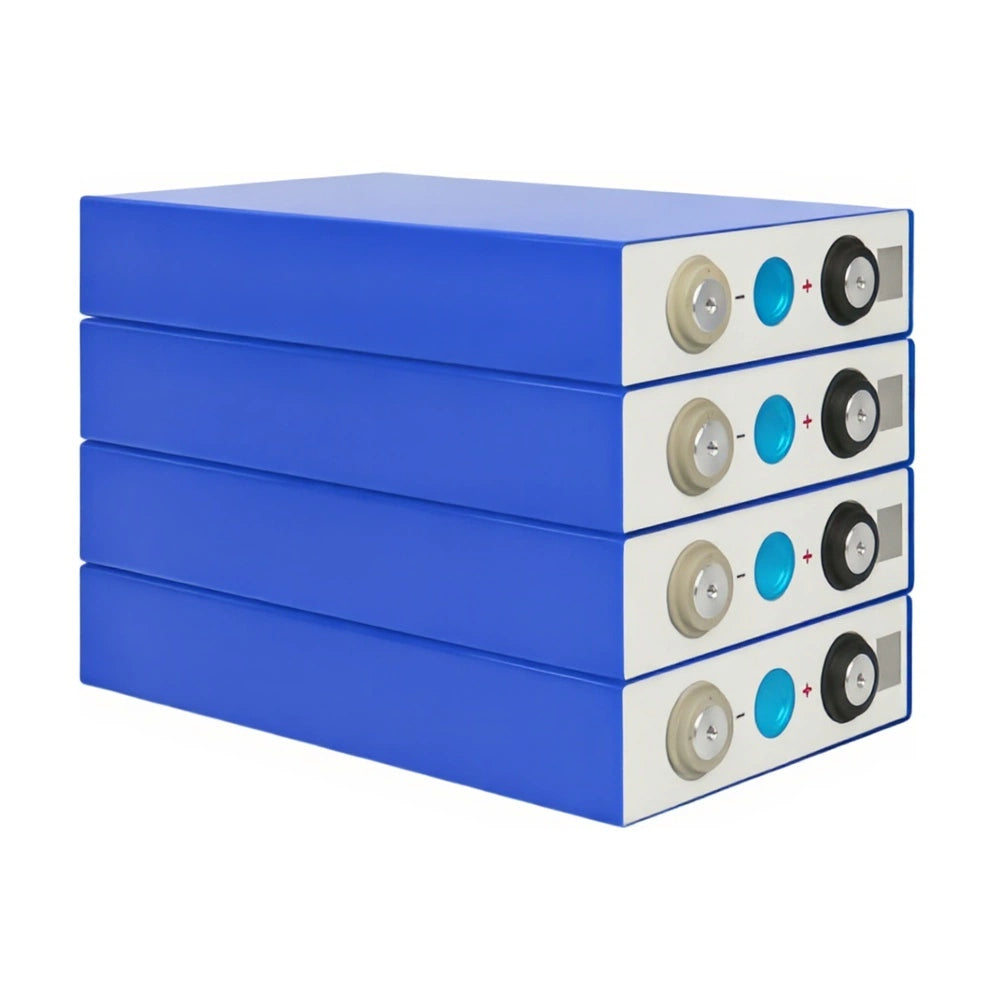

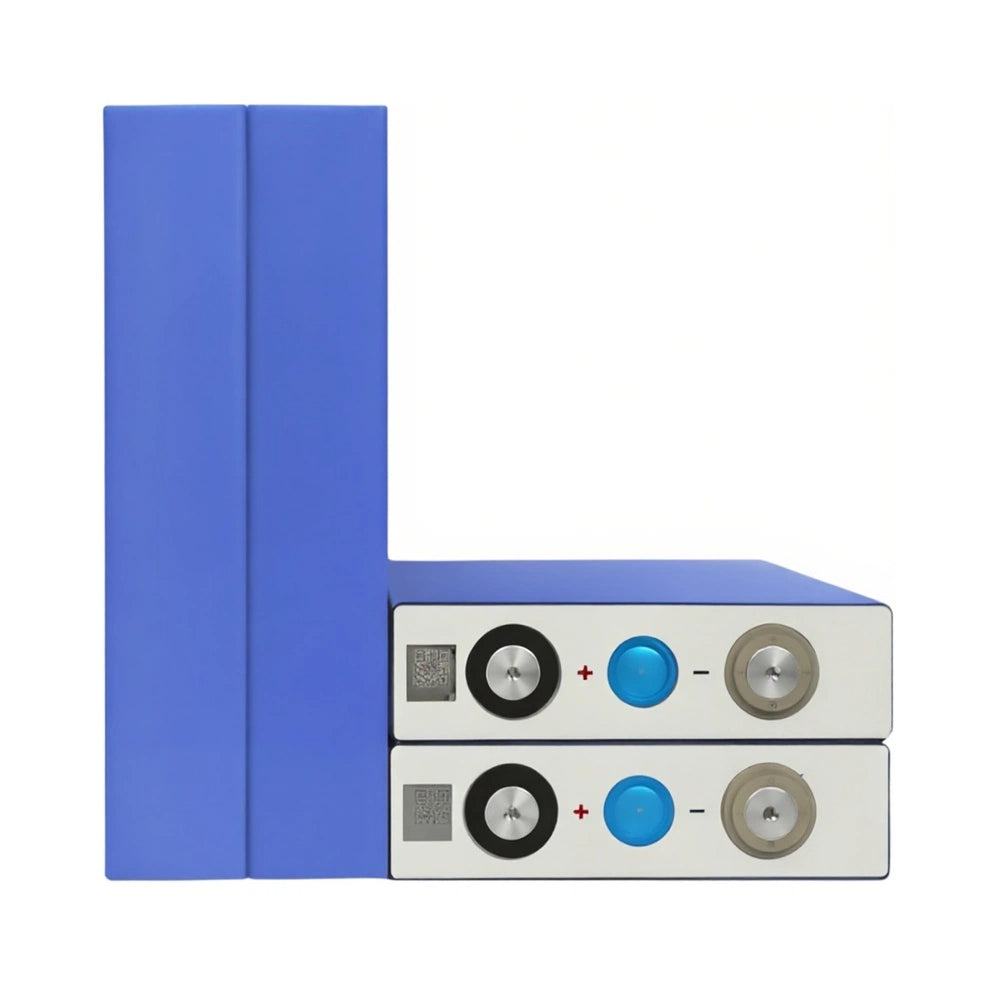

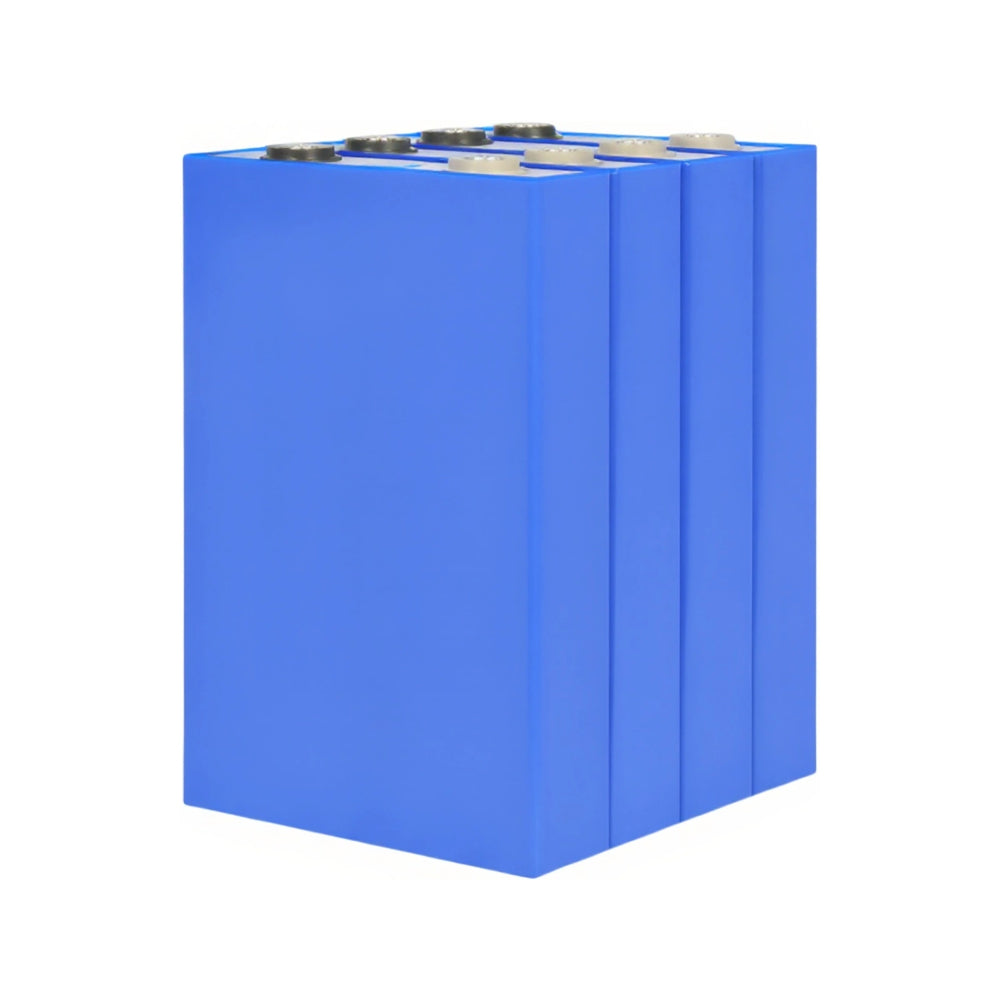

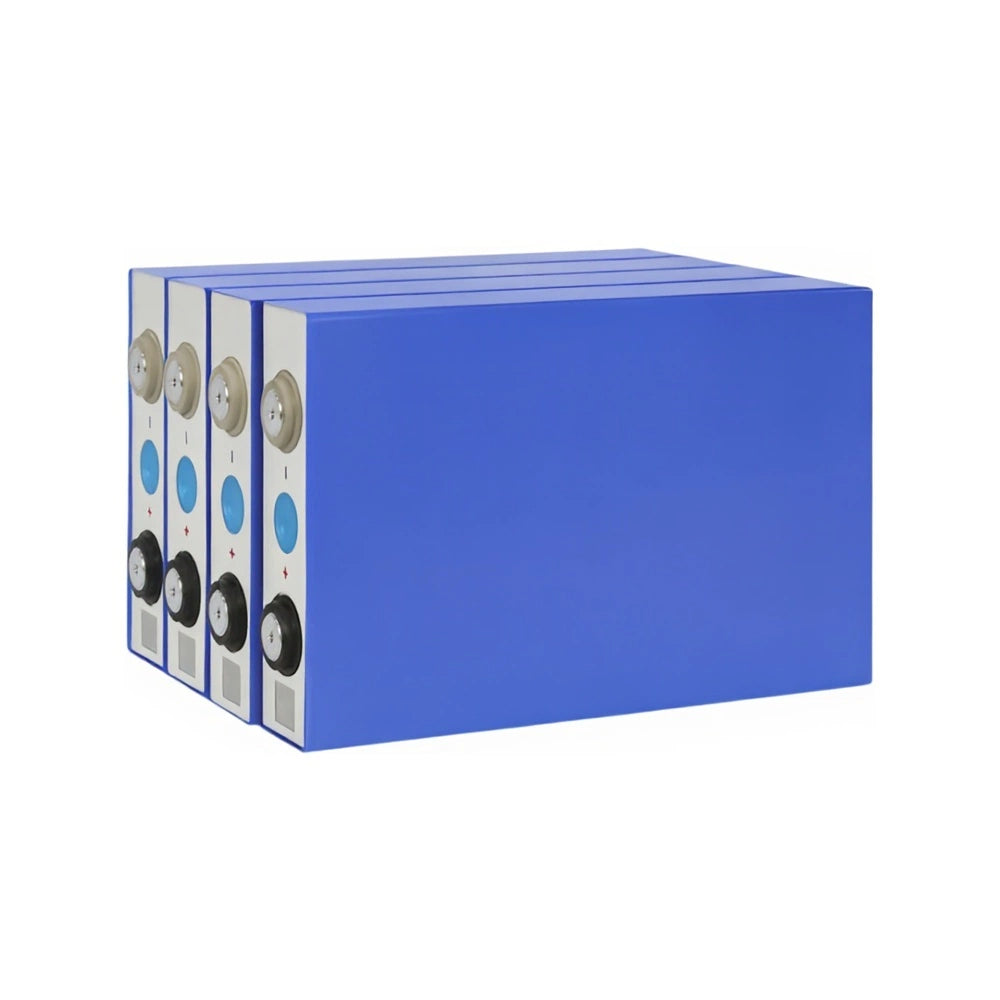

This is a 3.2V LiFePO4 cell.
The cells have a lifespan (up to 80% capacity) of 4000 cycles when used with a pressure of 300 kg and charged at 1C (1C termination current up to 3.65V)
1C discharge (down to 2.5V)

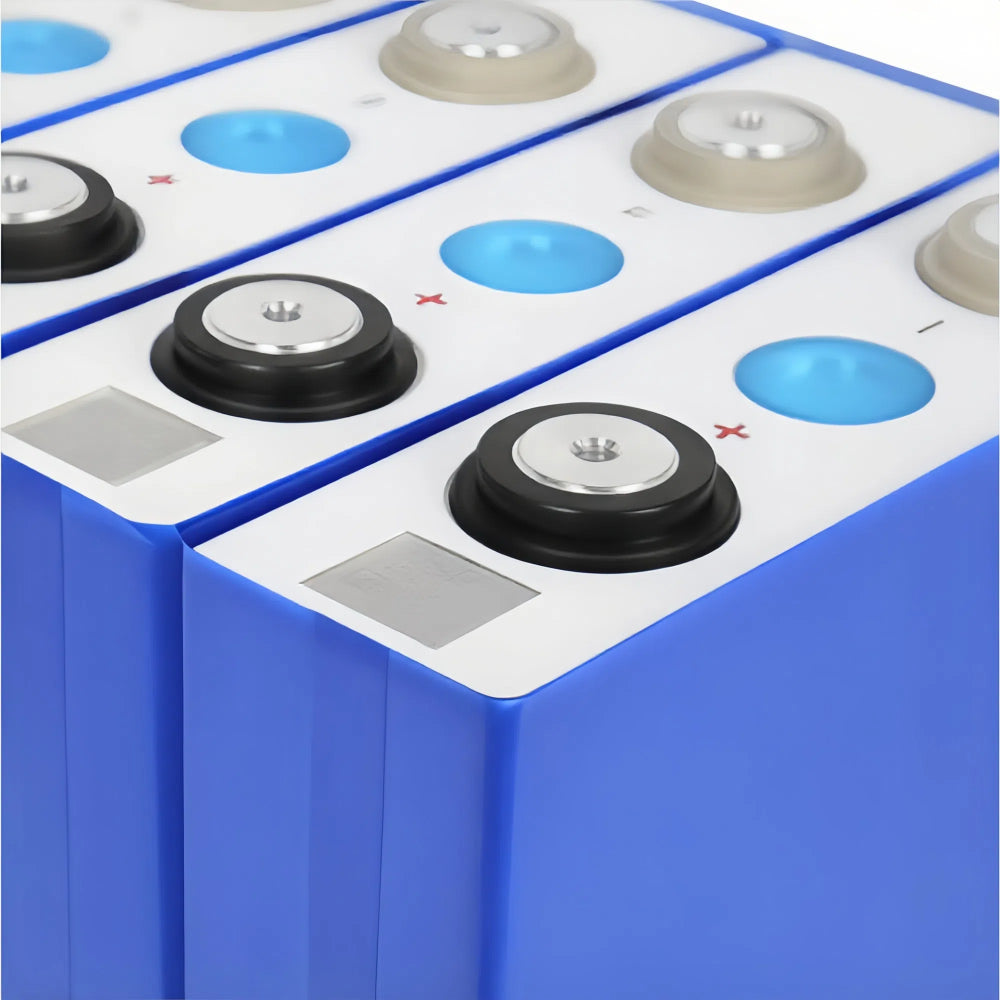

They are equipped with studs with M6 screw holes for better electrical conductivity.
Busbars and bolts are also included.
Download Document:
EVE 105Ah LiFePO4 Cell Product Specification
Warranty
The warranty period is 5 years from the date you receive.
We only replace new cell for free due to the failure of manufacturing.
Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week, if you found problems please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.
Remark
Please read carefully all the description before taking orders, the battery is suitable for DIY lovers with experience, people who are not familiar with the safe use of lithium battery knowledge, please go to our shop to buy the finished product.
DIY battery pack must get the cells balanced (same voltage ) before assembly.
And we don’t accept refund for buyers who don’t know how to assembled or unbalanced assembly.
Please use the correct BMS during assembly. We don’t accept refund for the problem caused during assembly process or after the assembly. Such as not use the BMS, the BMS connected to the wrong wire lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
Before assembling, please make sure use the same capacity cell and use the same brand of the cell. It is forbidden to mix cells with different capacity and brand in the same battery system. Otherwise, we will not be responsible for quality assurance.
Application
Solar energy storage, solar power system, UPS supply, Engine starting battery, Electric bicycle/motorcycle/scooter, Golf trolley/carts, RV, EV, Caravan So on.
Contact us :
More any questions about the BetterESS Power Battery?
Email: service@better-ess.com
| Battery Specifications | |
|---|---|
| Battery brand | EVE |
| Battery model | LF105 |
| Chemistry | Lithium Iron Phosphate (LiFePO4 or LFP) |
| Nominal voltage | 3.2V |
| Operational voltage | 2.5 V – 3.65 V |
| Nominal capacity | 105Ah |
| AC Impedance Resistance | ≤0.5mΩ |
| Weight | 1.98±0.1kg |
| Dimensions (mm) | 200.5×130.3×36.7±0.5mm |
| Terminal | M4 Screw Hole |
| Cycle life | ≥3500 cycles (1C/1C, 25±2℃, SOC≥80%) |
| Standard Charge/Discharge Current | 0.5C/0.5C |
| Standard Charge/Discharge Cut-off Voltage | 3.65V/2.5V |
| Continuous Charge/Discharge Current | 1C/1C |
| Pulse Charge/Discharge Current (30s) | 2C/2C |
| Recommended SOC window | 10%～90% |
| Charging Temperature | 0℃~55℃ |
| Discharging Temperature | -20℃~55℃ |
Q1: What are the environmental features of this battery?
The battery is made from lithium iron phosphate (LiFePO4), an environmentally friendly material that does not contain heavy metals or rare metals. It is safe and stable, not prone to burning or exploding under high temperatures, impacts, or short circuit conditions.
Q2: How should this battery be maintained to prolong its lifespan?
Regularly check the battery's exterior and connections to keep them clean and dry. Avoid keeping the battery in a state of overcharge or deep discharge for extended periods. Be mindful of the ambient temperature during use; avoid charging in extremely cold conditions.
Q3: What are the installation requirements for this battery?
The battery can be installed in any position as it does not contain acid. Ensure that the battery is securely mounted to prevent vibrations and impacts during movement.
Q4: How long do BetterESS batteries last?
Our LiFePO4 lithium iron batteries can provide 2000+ cycles, which is significantly more compared to the 300–500 cycles typically found in lead-acid batteries. The service life of LiFePO4 batteries is 8 to 10 times longer than standard lead-acid batteries.
Q5: Are your batteries safe?
Yes, our LiFePO4 batteries are designed with safety in mind. They are manufactured using Automotive Grade LiFePO4 Cells, offering higher energy density, no memory effect, and more stable performance. The stable chemical structure of LiFePO4 ensures they do not burn or explode, even under high temperatures, short circuits, impact, or drops.
Q6: Are there any special handling or maintenance tips for this battery?
The LiFePO4 battery requires minimal maintenance. However, it is recommended to regularly check connections and ensure the battery is kept in a dry and ventilated space. Avoid exposure to extreme temperatures to prolong battery life.
