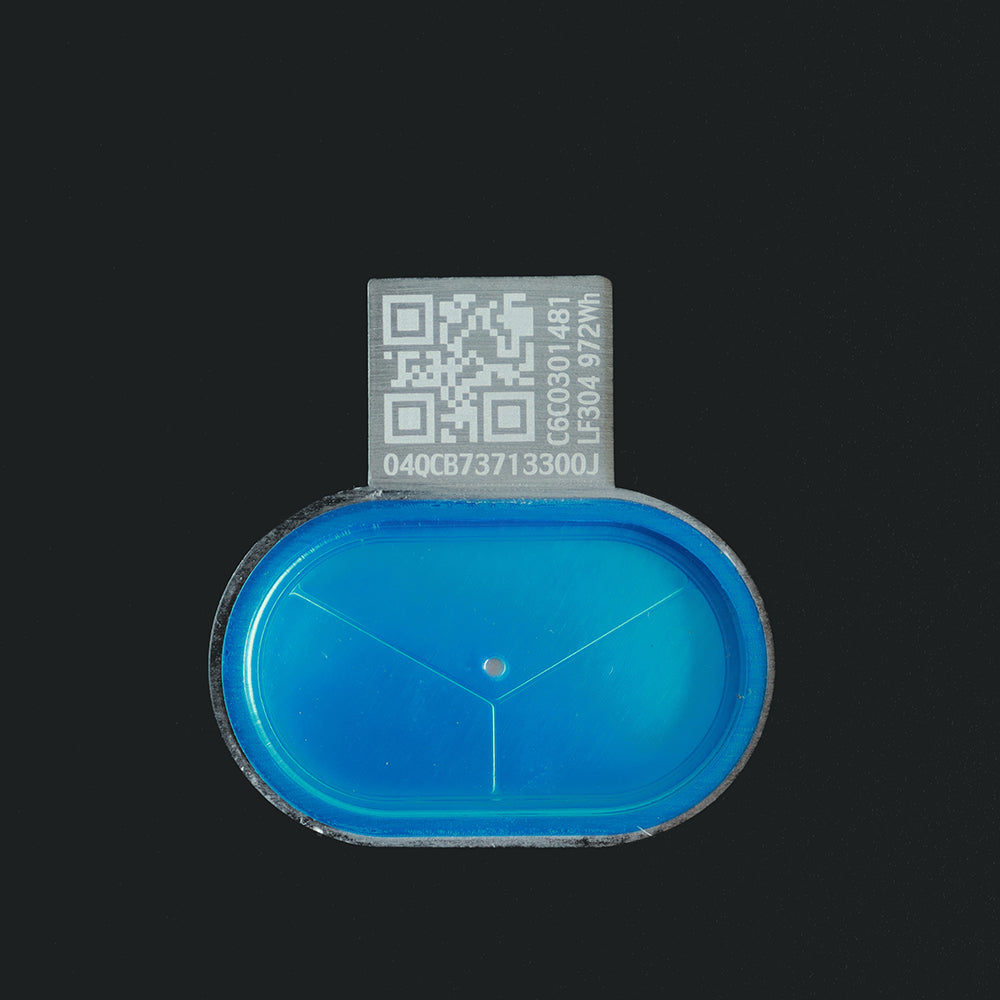

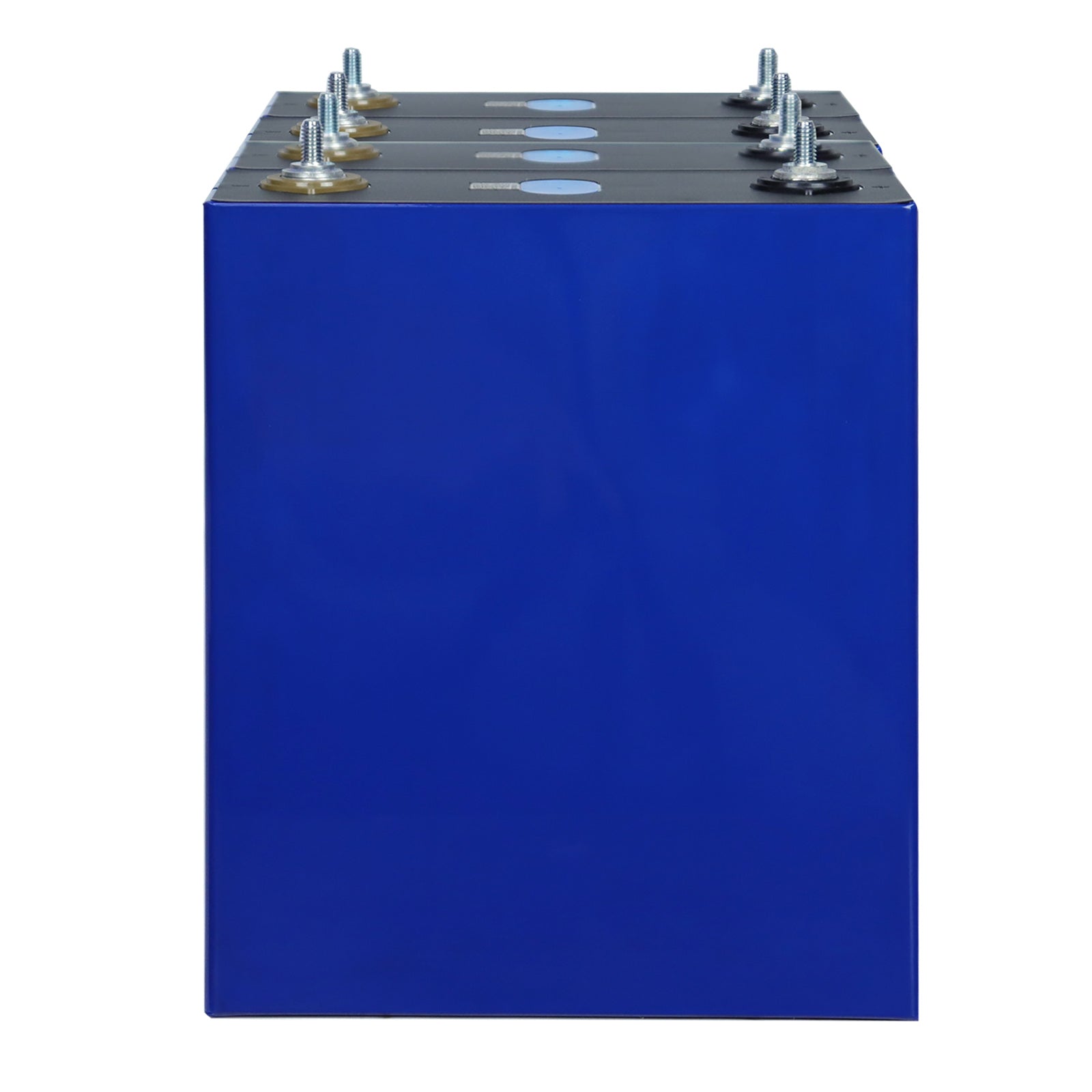

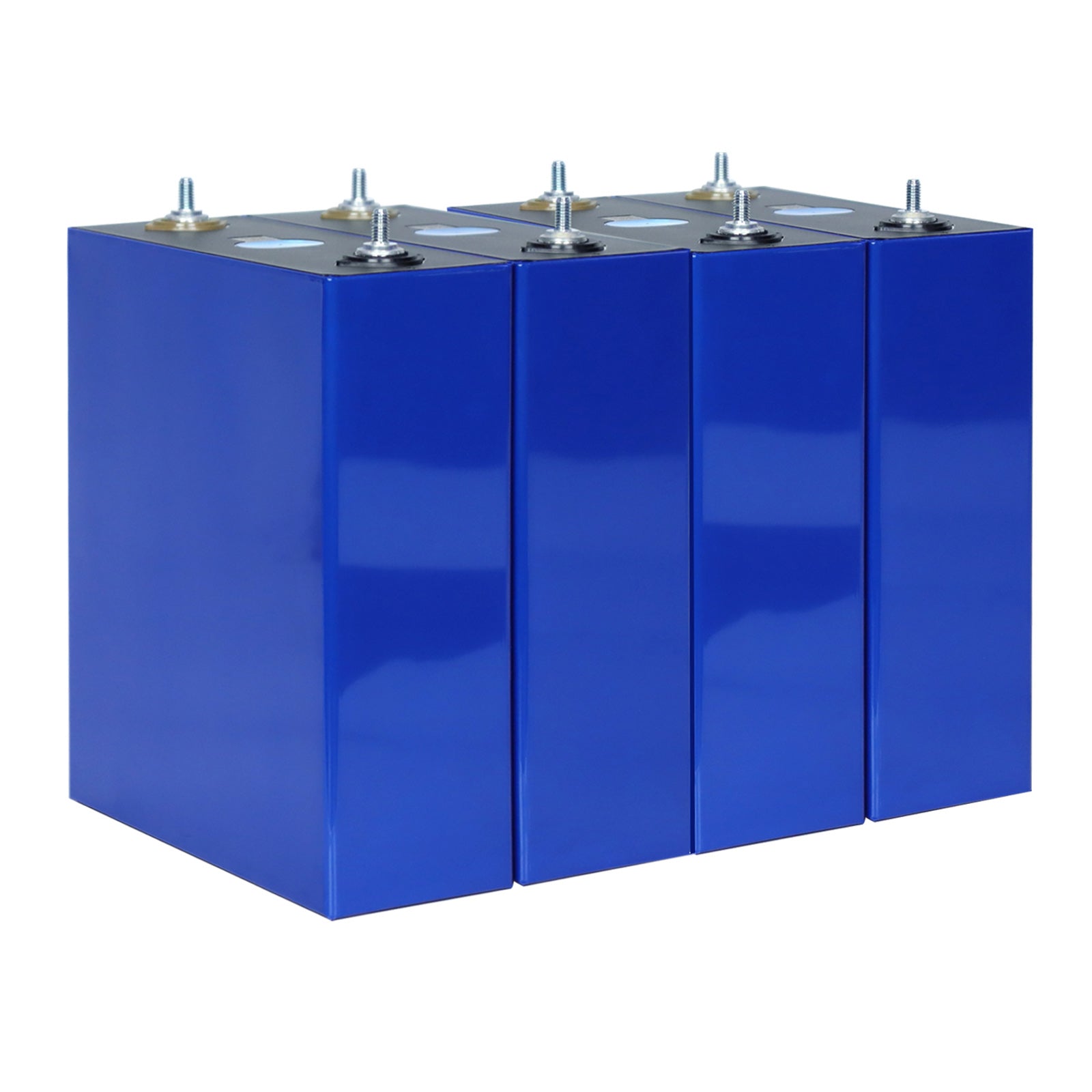

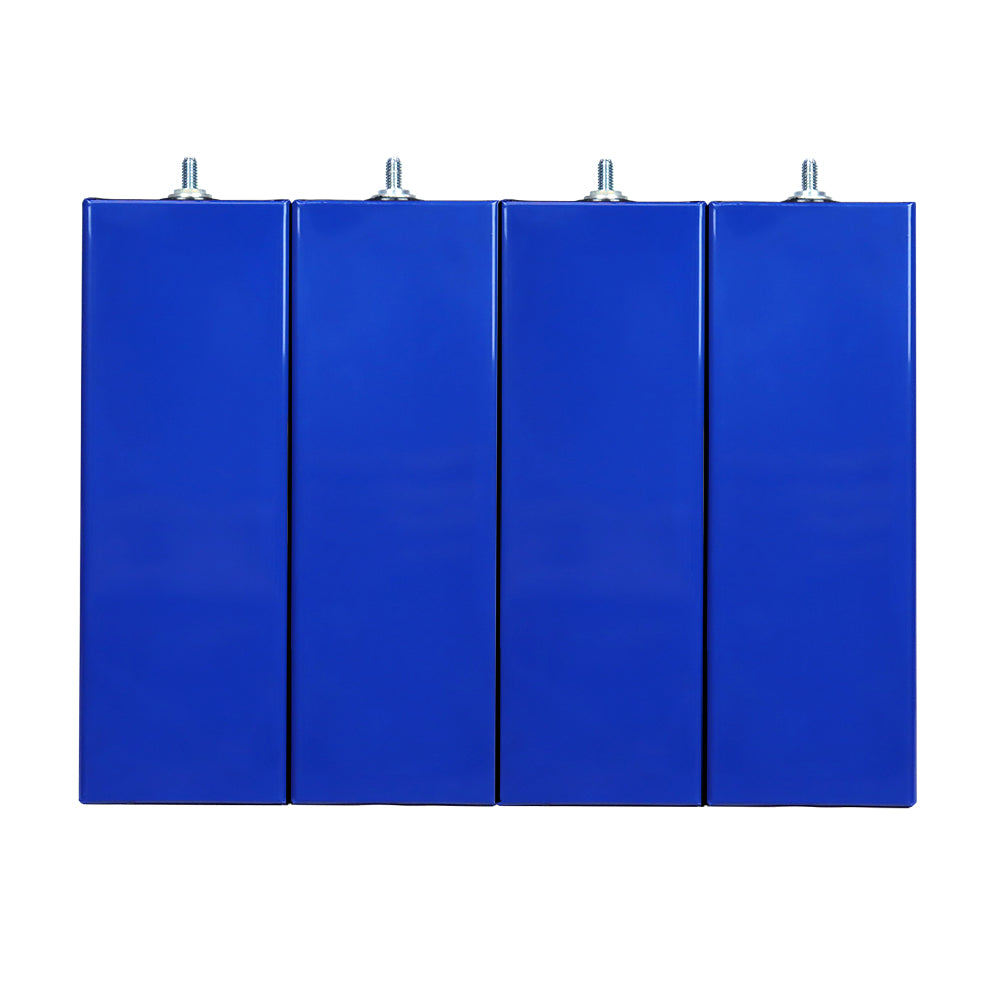

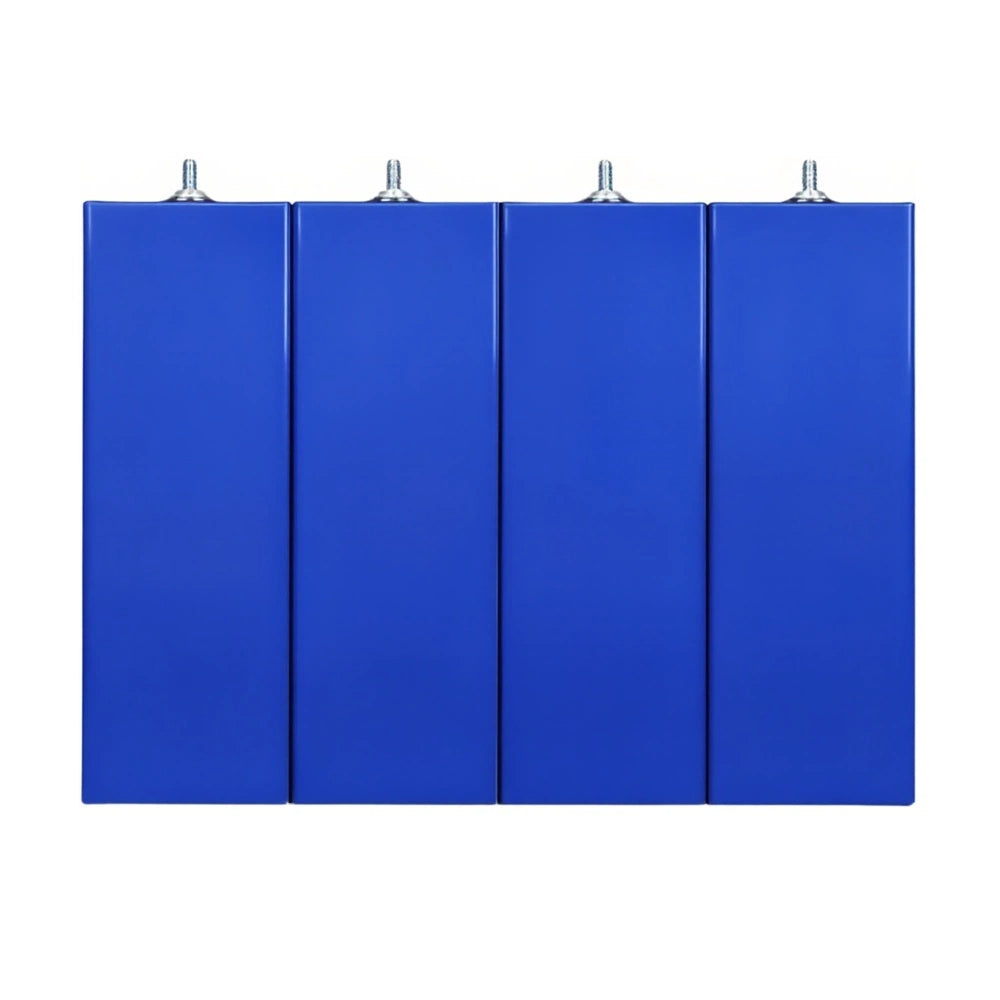

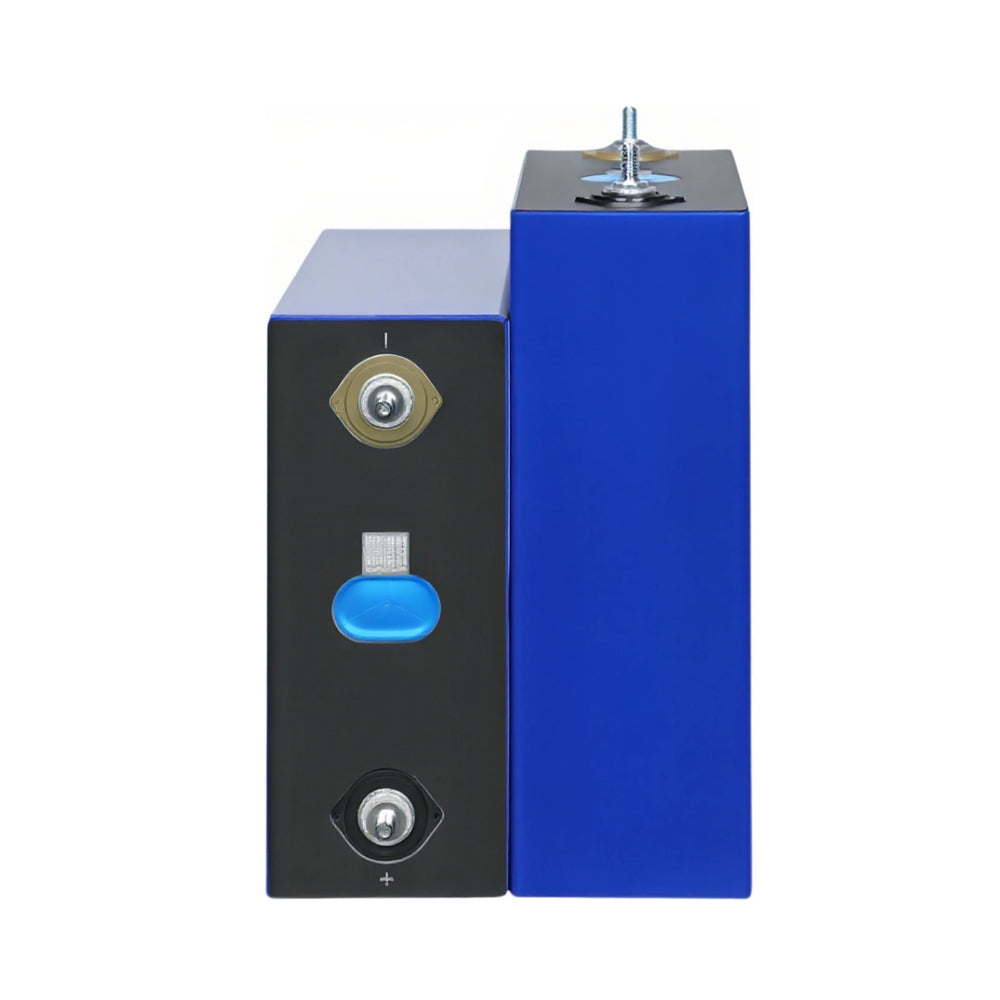

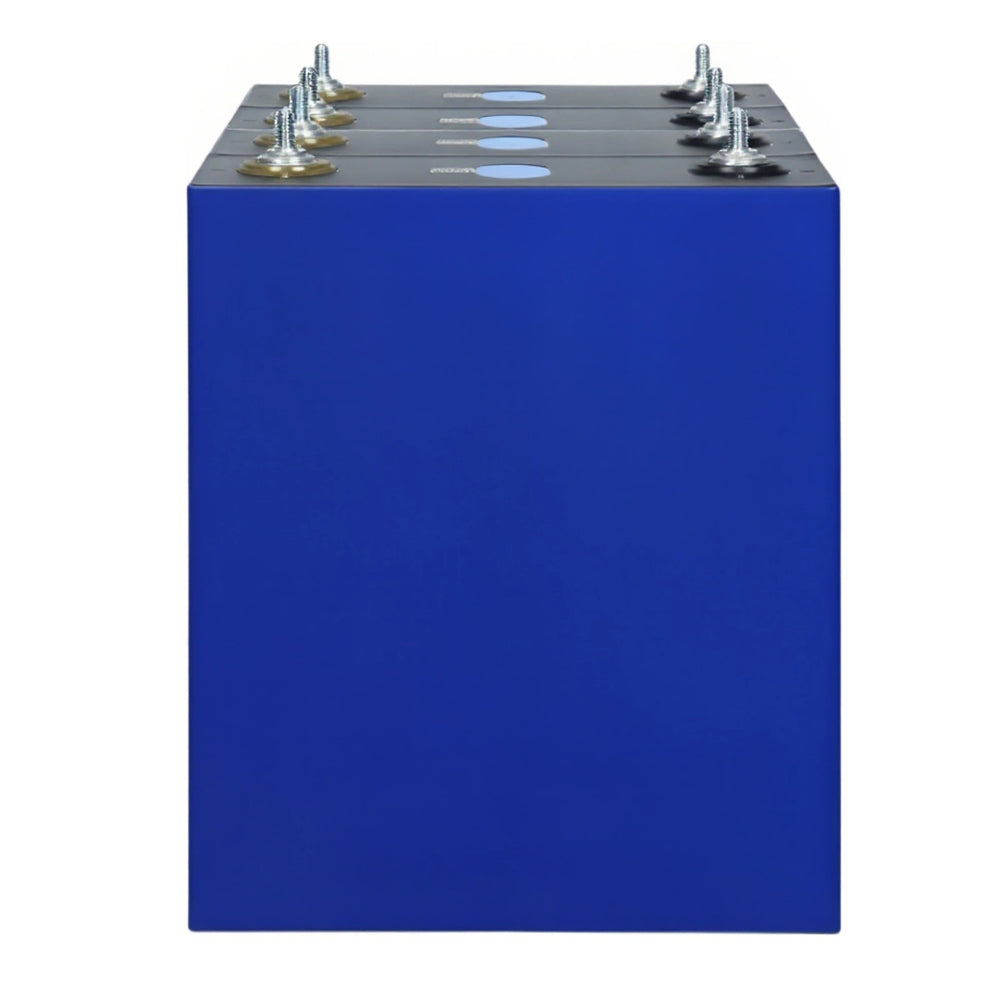

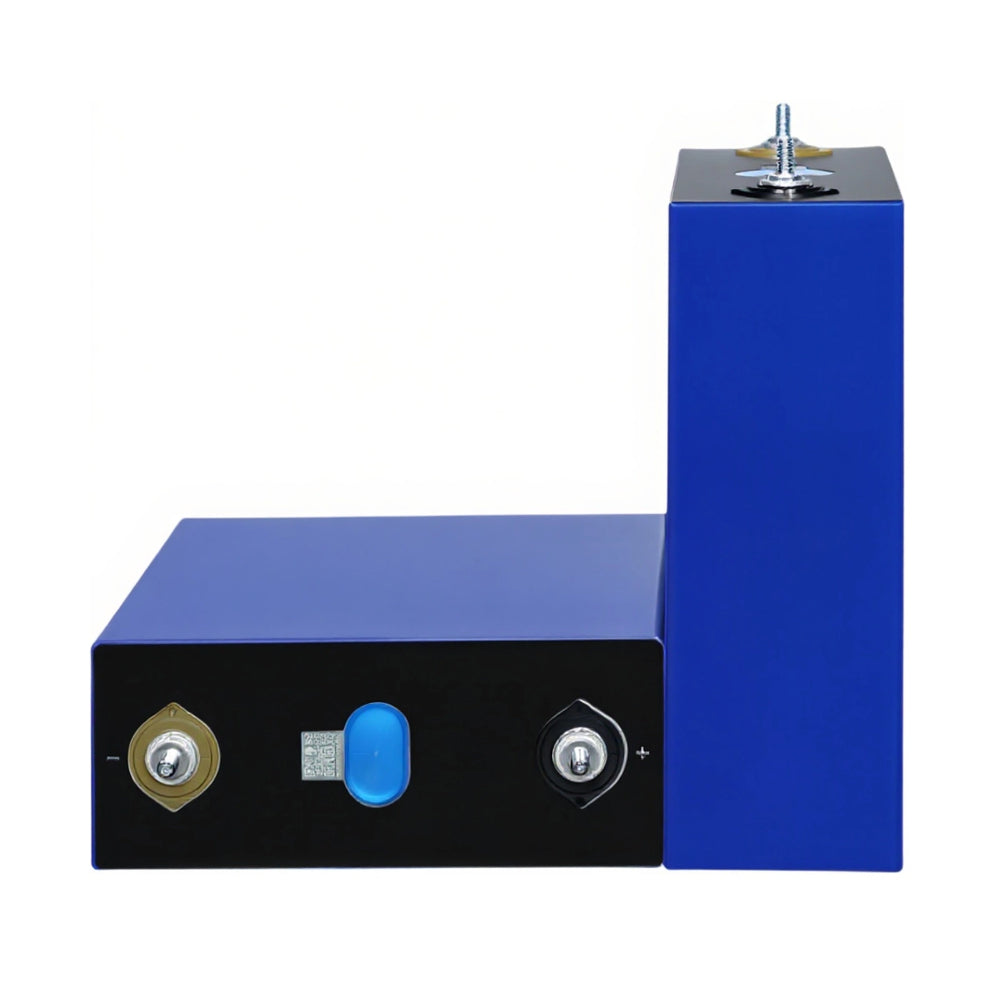

EVE 3.2V 304Ah LiFePO4 Battery Cells - Brand New Grade A with QR Code

1. Free Shipping (Free standard shipping on all orders)

2. 5-Year Warranty (Backed up by technical support within 24hrs)

3. Free Returns (30 Days Hassle Free Return to Our EU Warehouse)

4. 100% Payment Secure (We ensure secure payment with PayPal and credit card)

Note: The Selling Price is the final price, with Free Tax, Free Shipping, and Free Customs! You don't need to pay any other fees. No tax is collected, and you do not need to pay any additional taxes.

Specification

Battery brand: EVE
Battery model: LF304
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5 V – 3.65 V
Nominal capacity: 304Ah

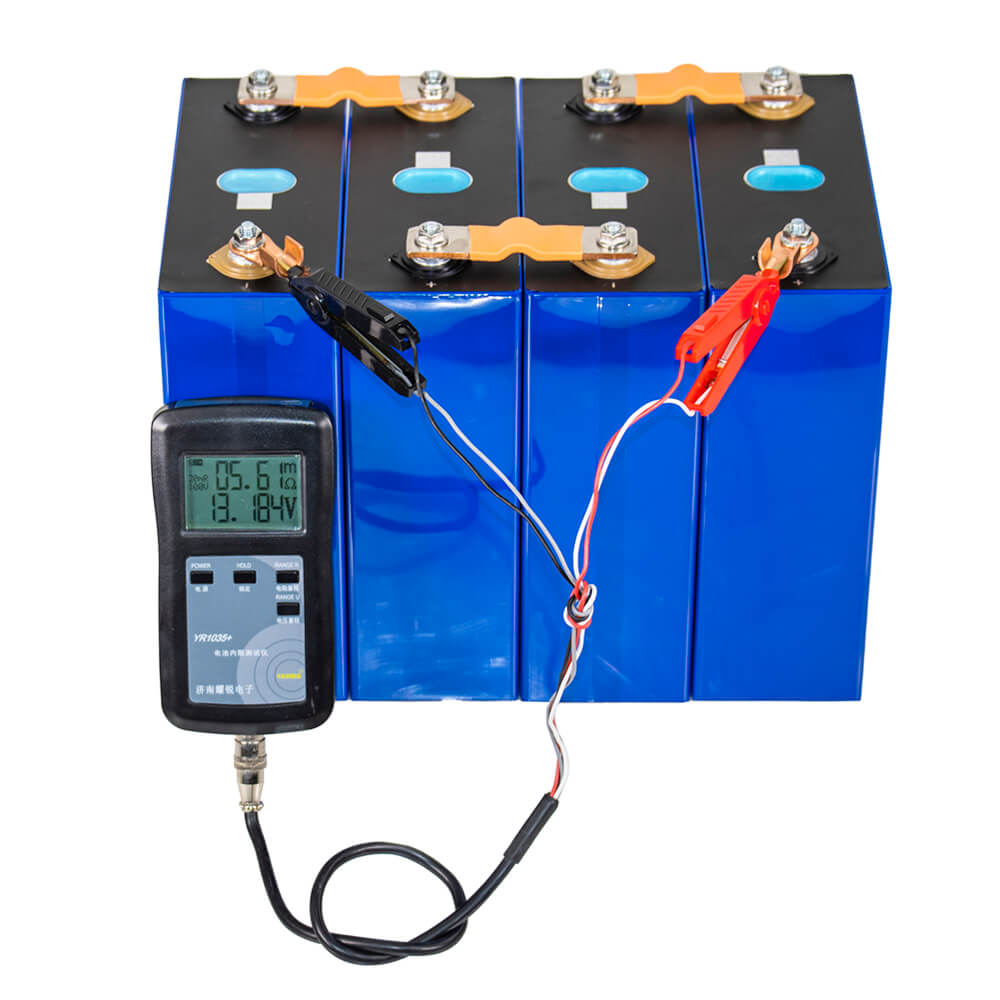

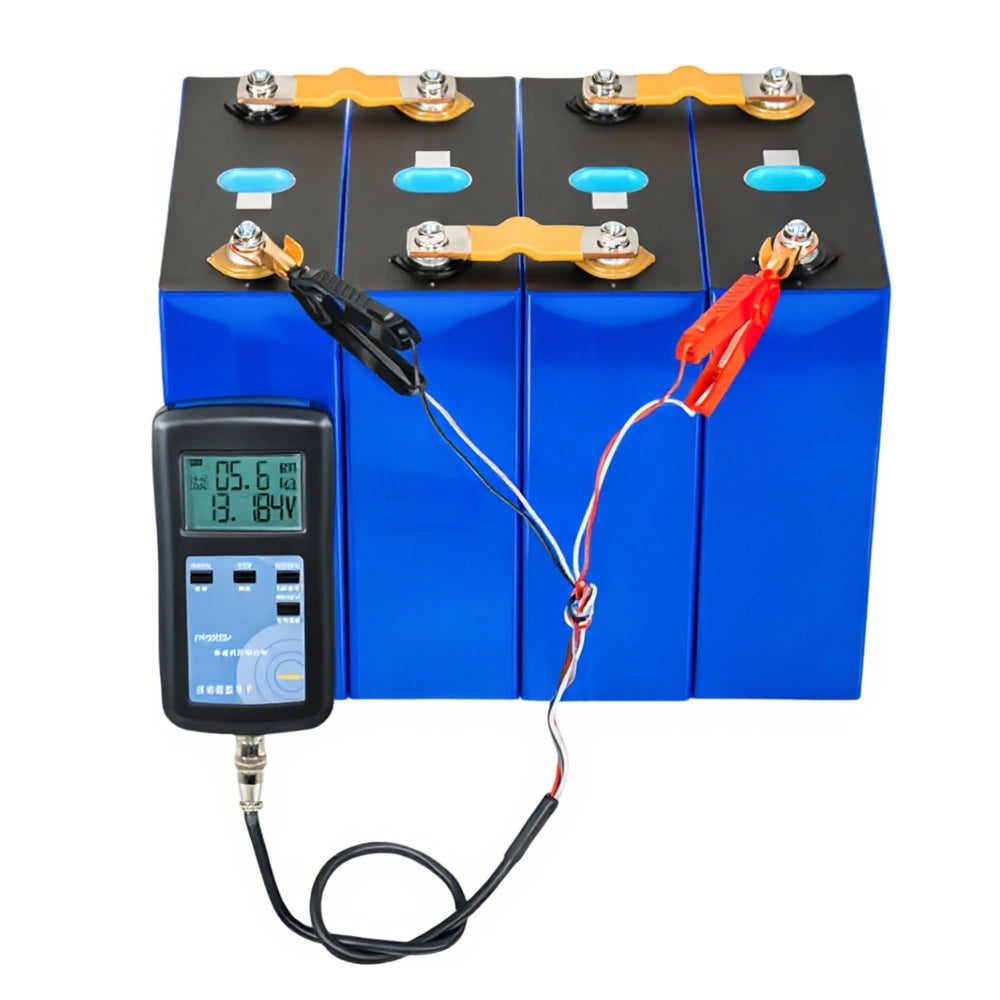

AC impedance resistance: ≤0.5mΩ
Weight: 5.49±0.3kg

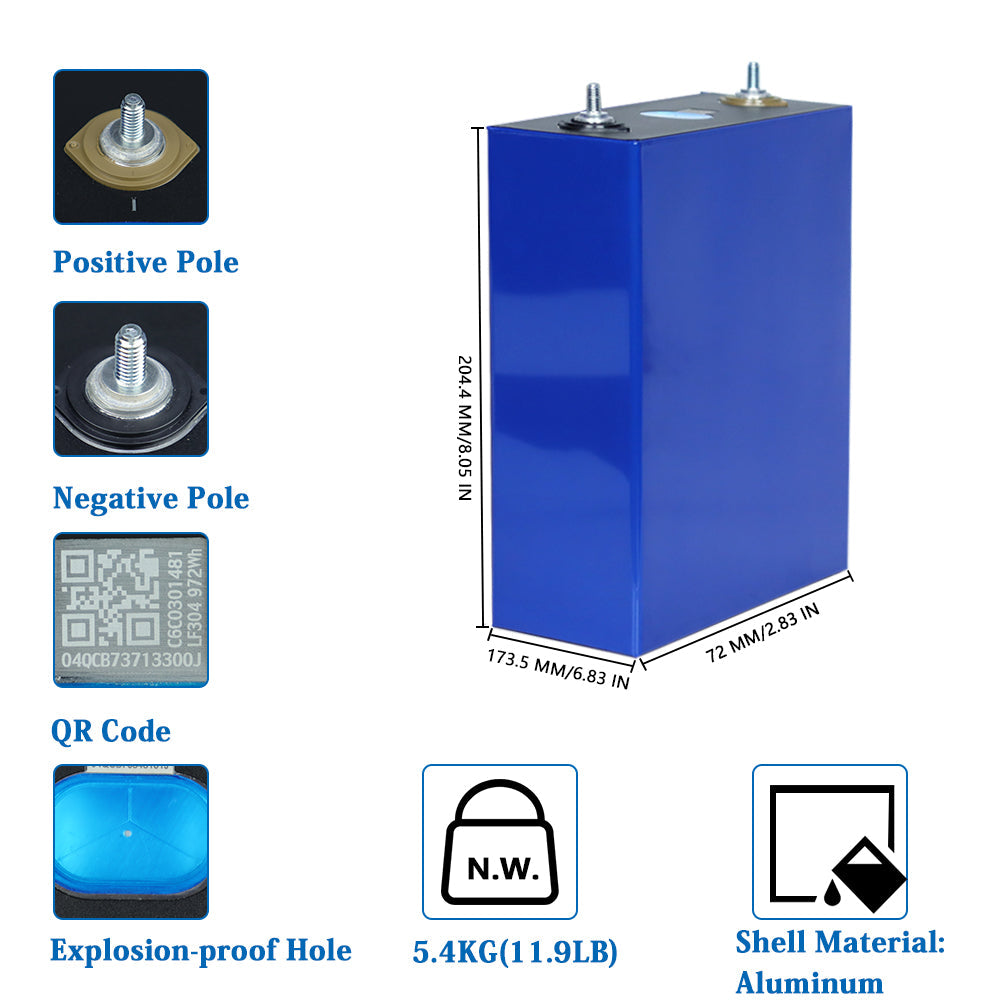

Dimensions (mm): 208.8(Pole included)*173.5*72±1

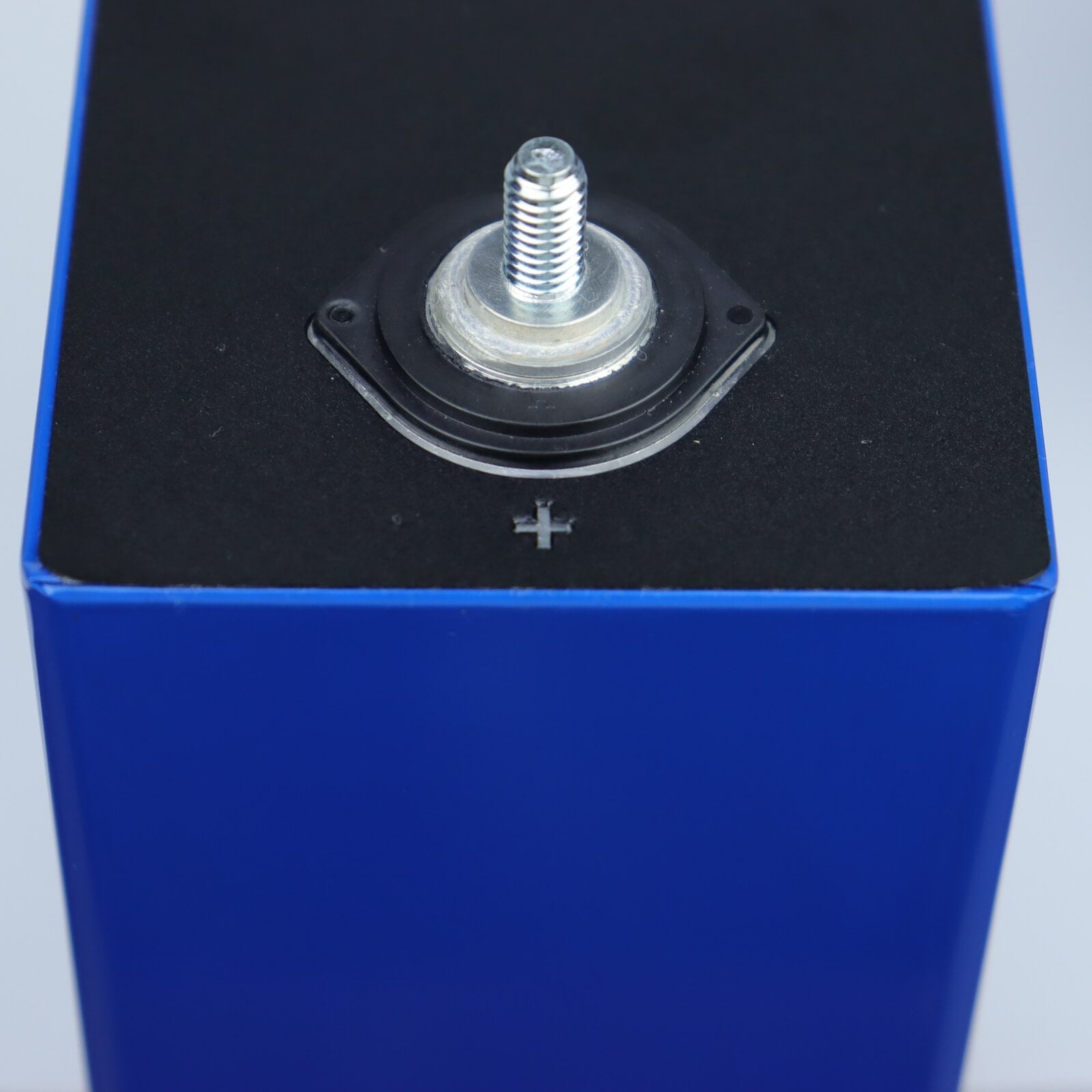

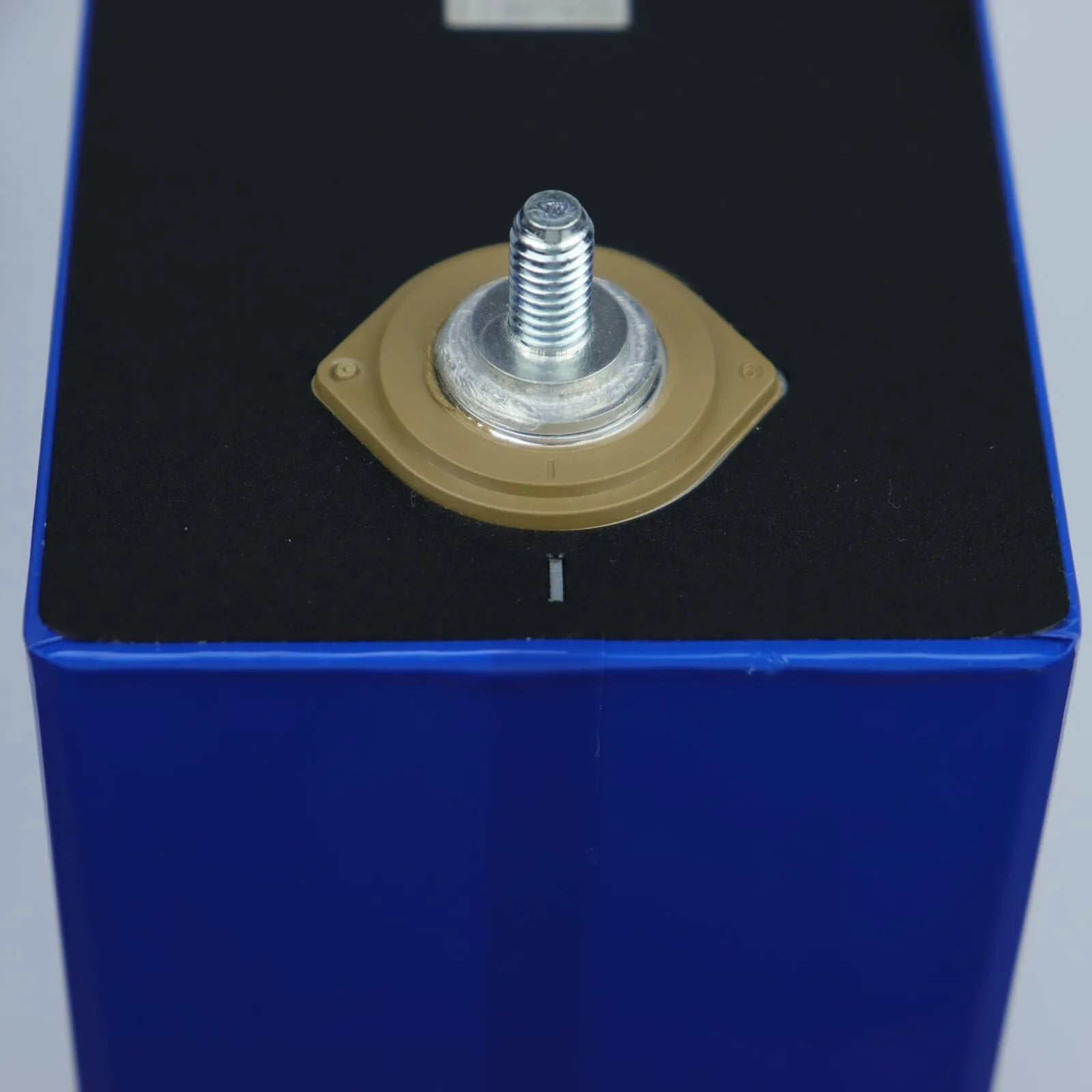

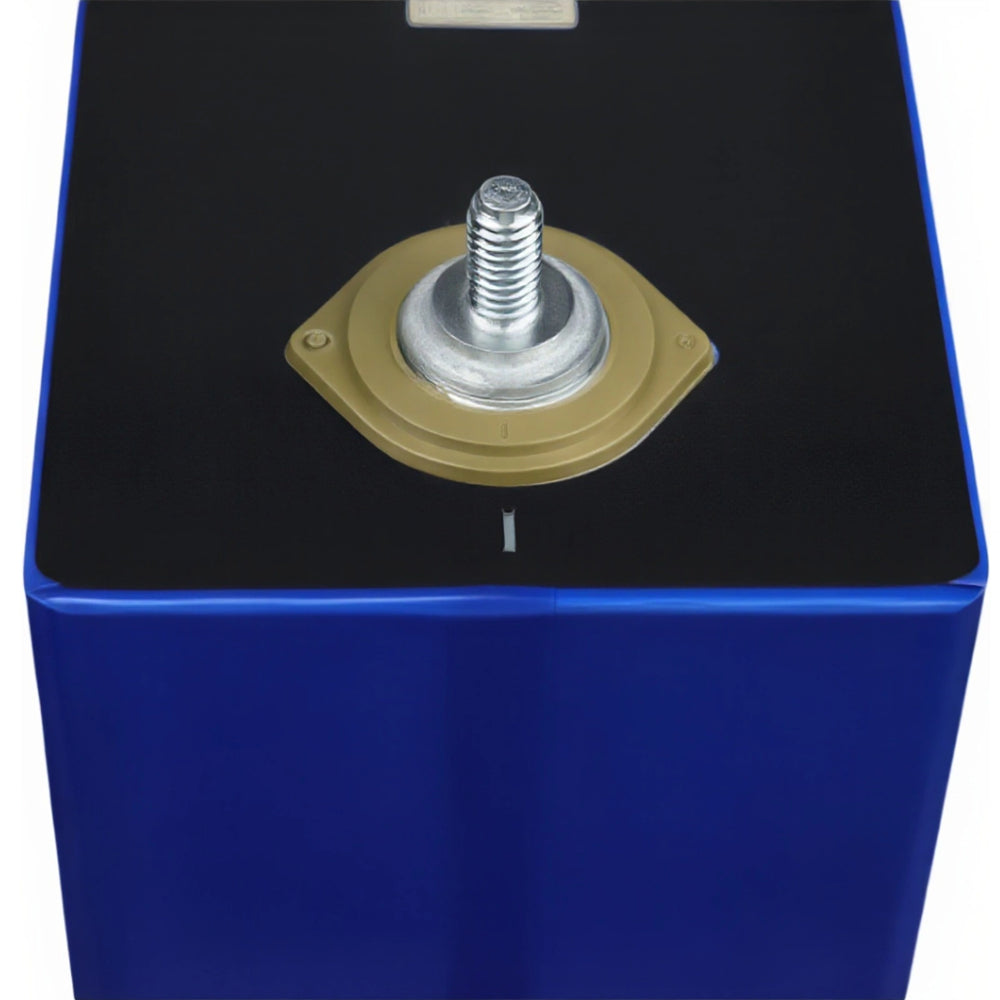

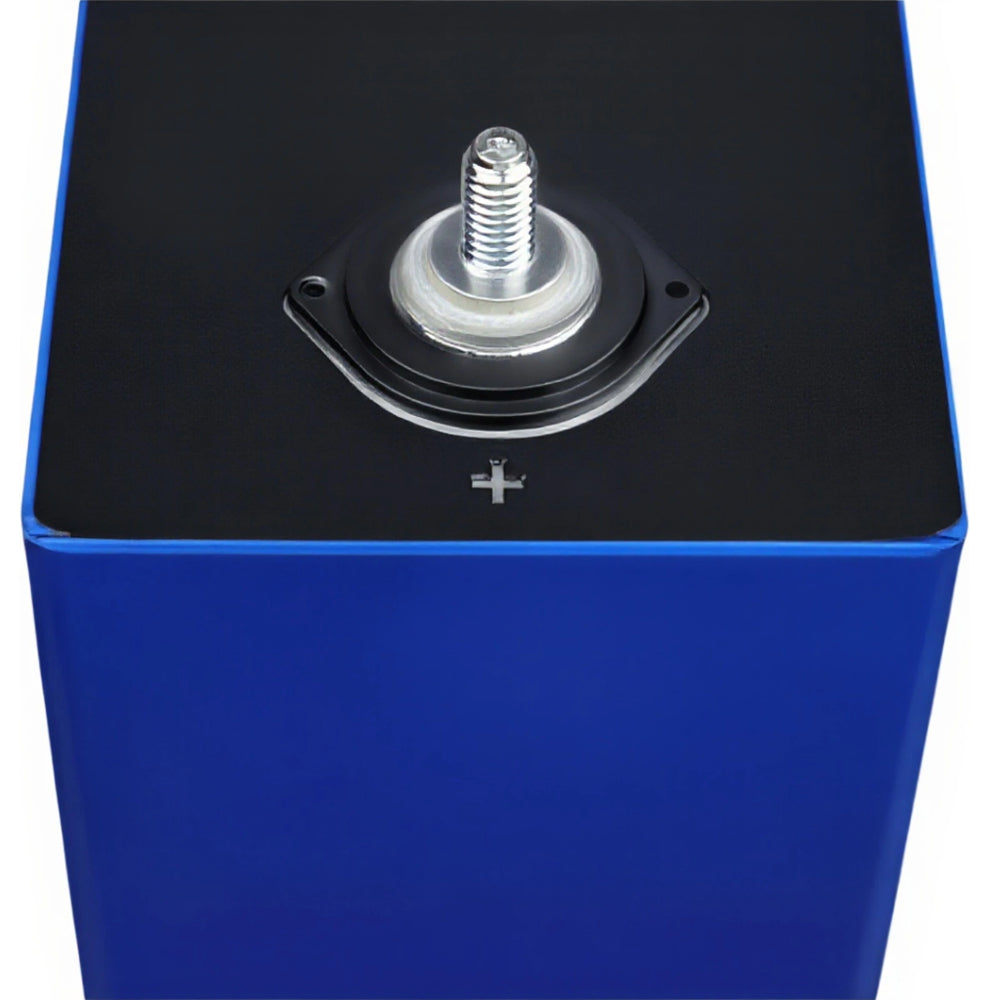

Terminal: M6 Laser Welding Screw Hole
Cycle life: ≥3500 cycles (1C/1C, 25±2℃, SOC≥80%)
Standard charge/discharge current: 0.5C/0.5C
Standard charge/discharge cut-off Voltage: 3.65V/2.5V
Max Continuous charge/discharge current: 250A/250A
Max Pulse charge/discharge current(30s): 2C/2C
Recommended SOC window: 10%～90%
Residual Capacity loss: Per month≤3.0%
Charging temperature: 0℃~60℃
Discharging temperature: -30℃~60℃

Download Document:

EVE 304Ah LiFePO4(LFP) Battery Cell Product Specification.pdf
