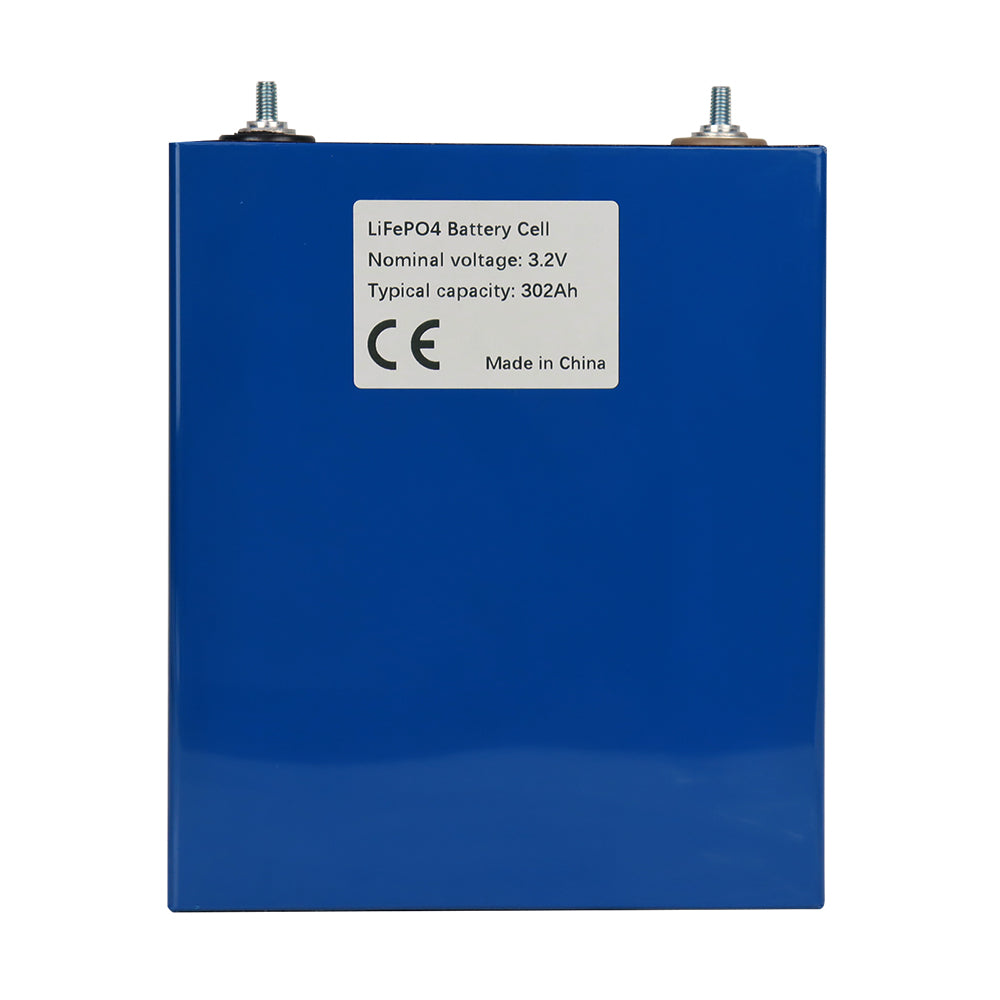

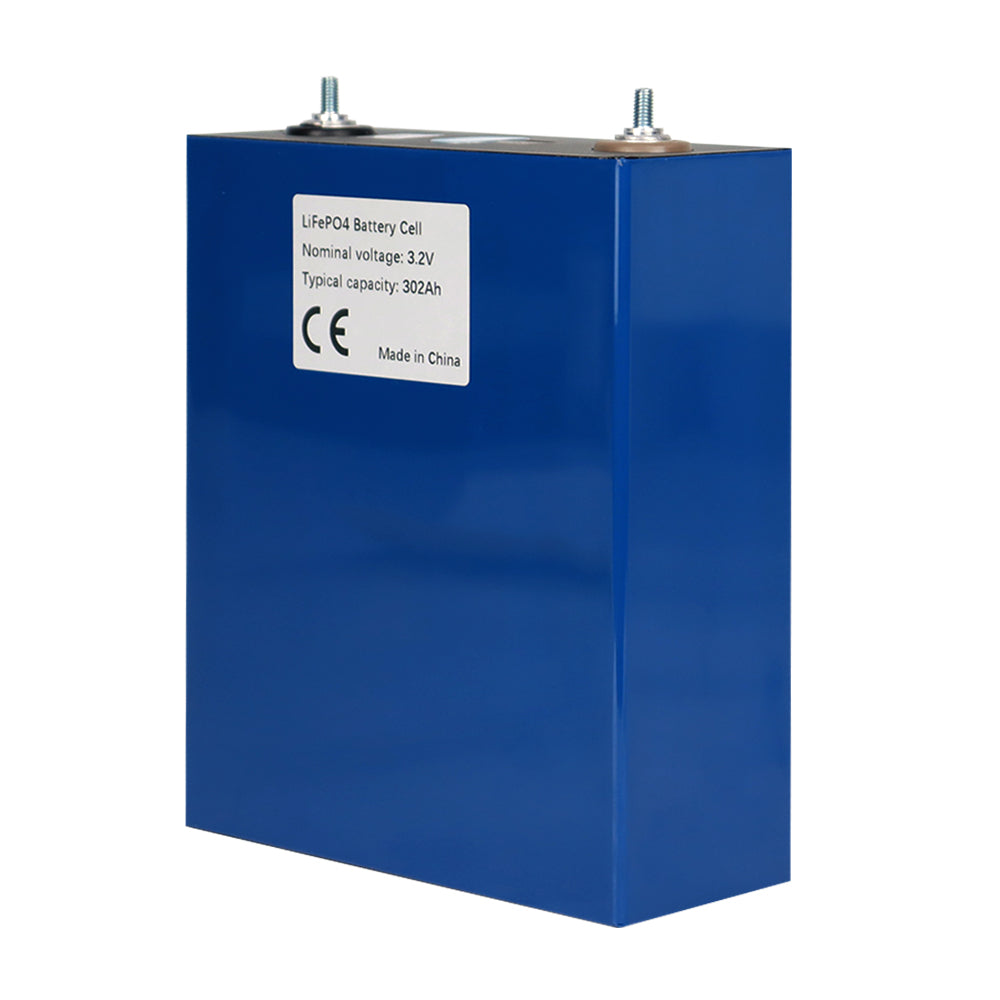

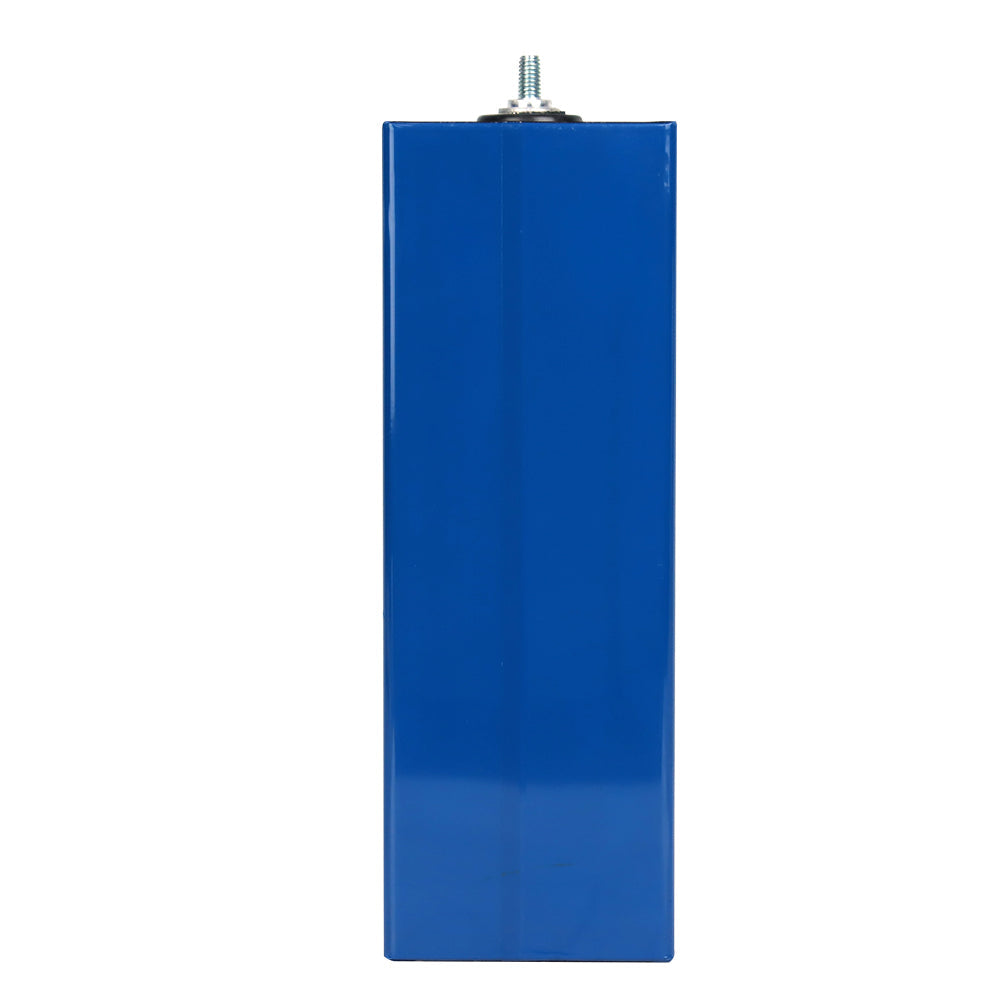

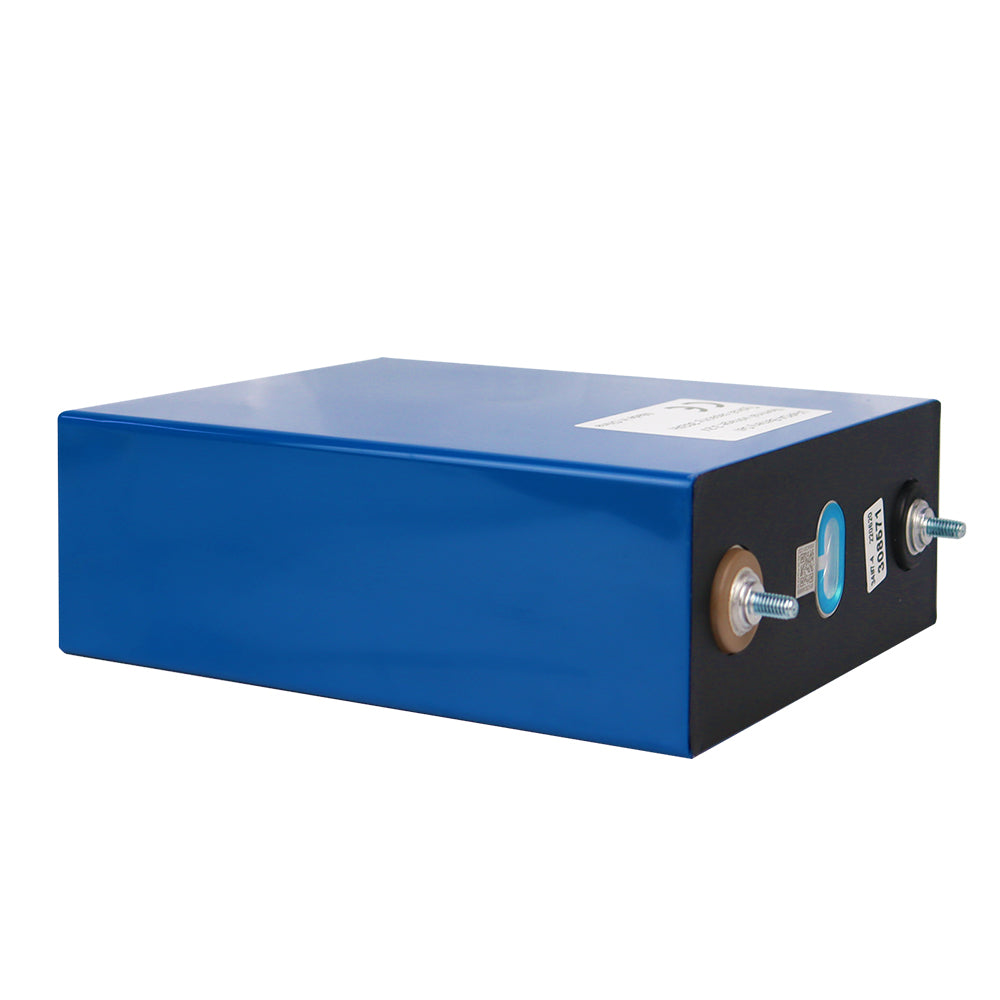

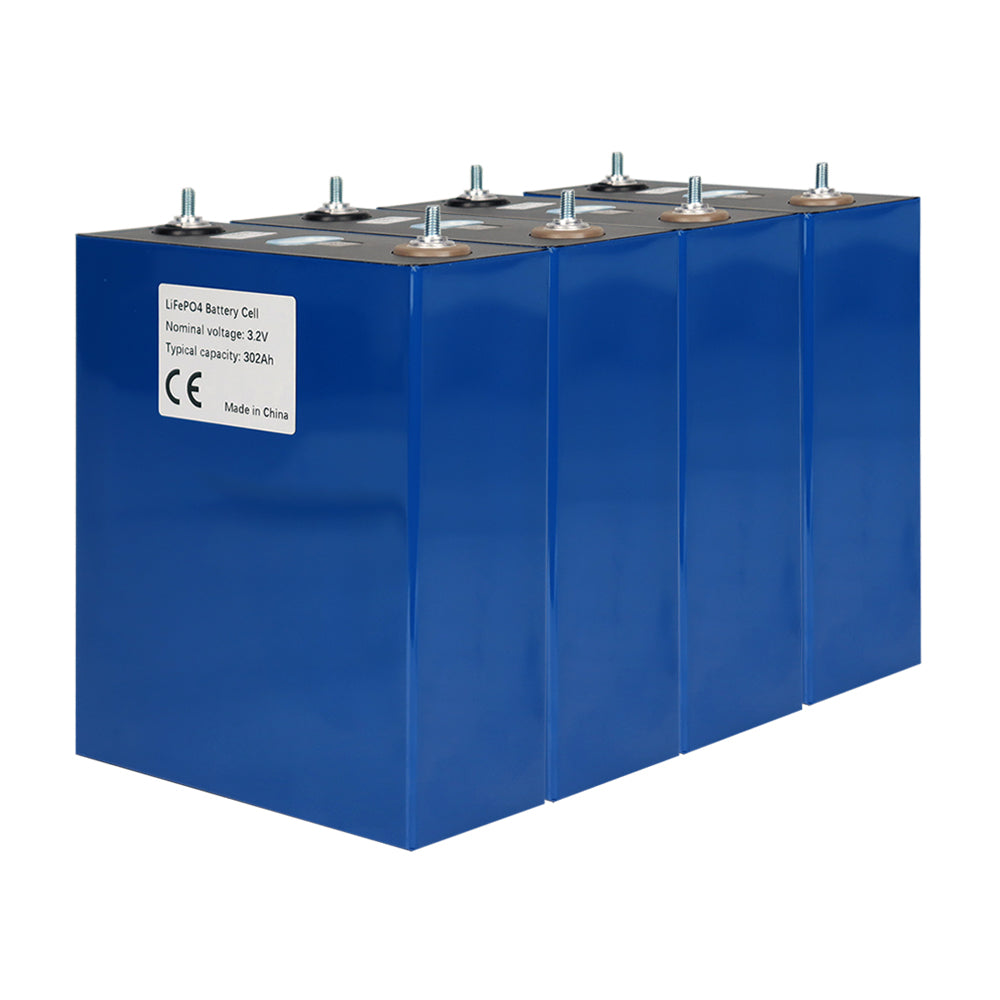

CATL 3.2V 302Ah LiFePO4 Battery Cells - Brand New Grade A with QR Code

1. Free Shipping (Free standard shipping on all orders)

2. 5-Year Warranty (Backed up by technical support within 24hrs)

3. Free Returns (30 Days Hassle Free Return to Our EU Warehouse)

4. 100% Payment Secure (We ensure secure payment with PayPal and credit card)

Note: The Selling Price is the final price, with Free Tax, Free Shipping, and Free Customs! You don't need to pay any other fees. No tax is collected, and you do not need to pay any additional taxes.

Specification

Cell Brand: CATL
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal Voltage: 3.2V
Operational Voltage: 2.5V – 3.65V
Nominal Capacity: 302Ah

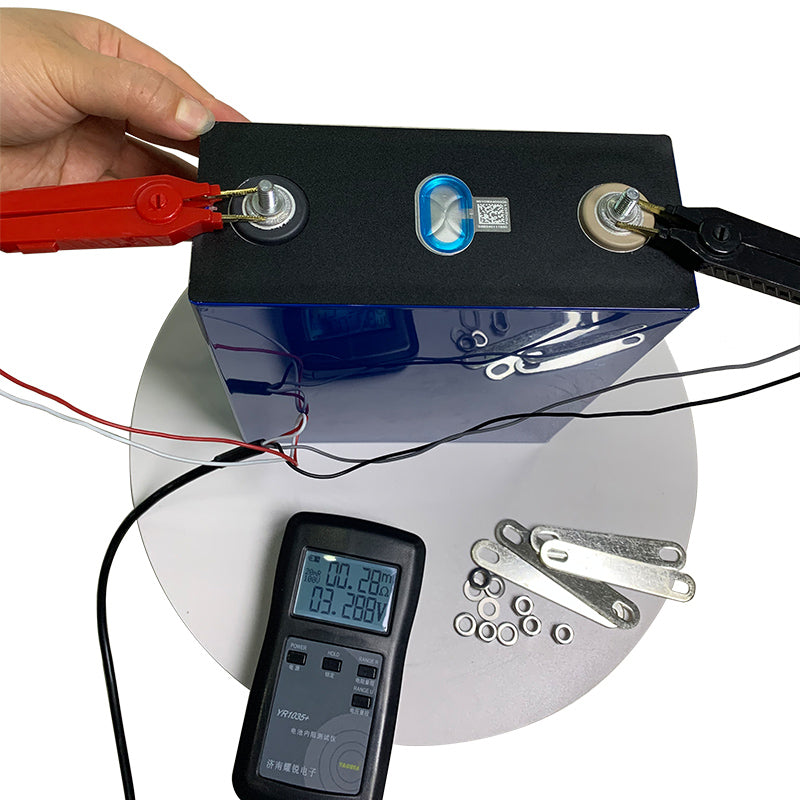

Impedance (1KHz): ≤0.18±0.05mΩ
Weight: 5.51±0.3kg

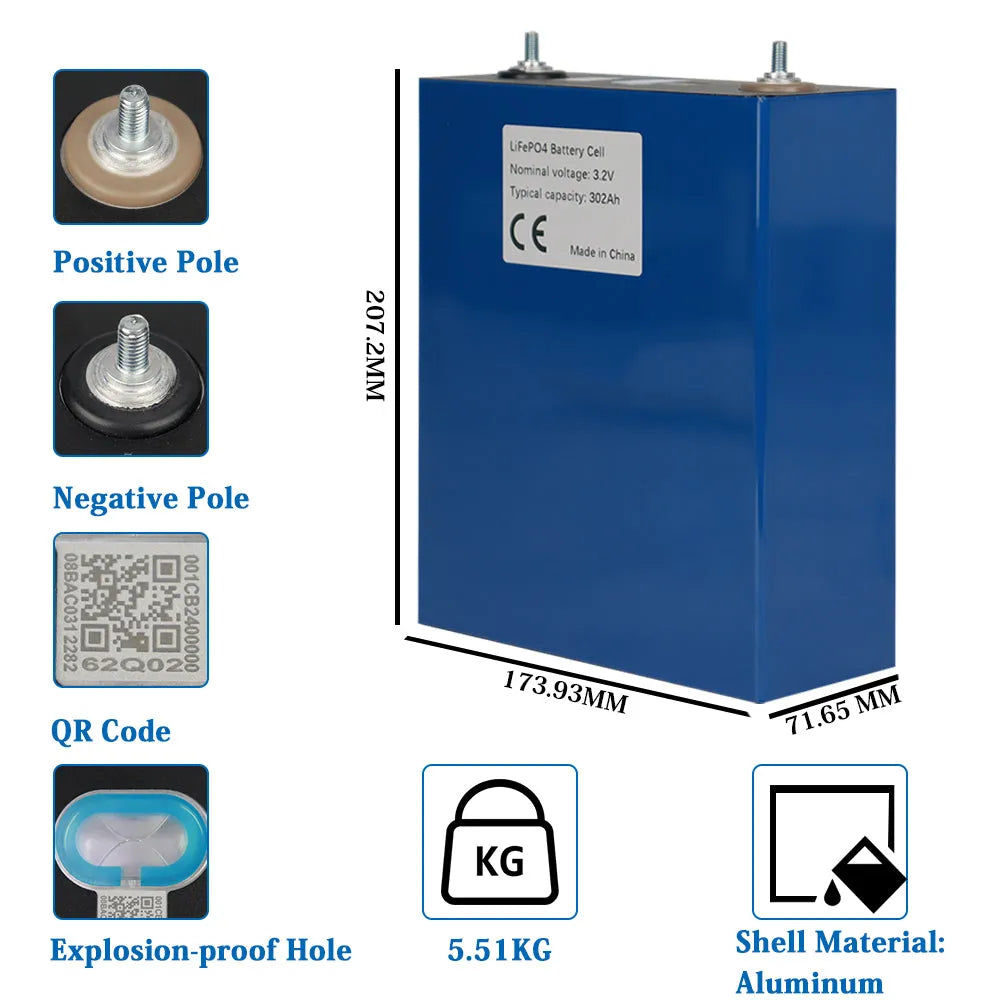

Dimensions (mm): 207.2*173.93*71.65±0.5mm

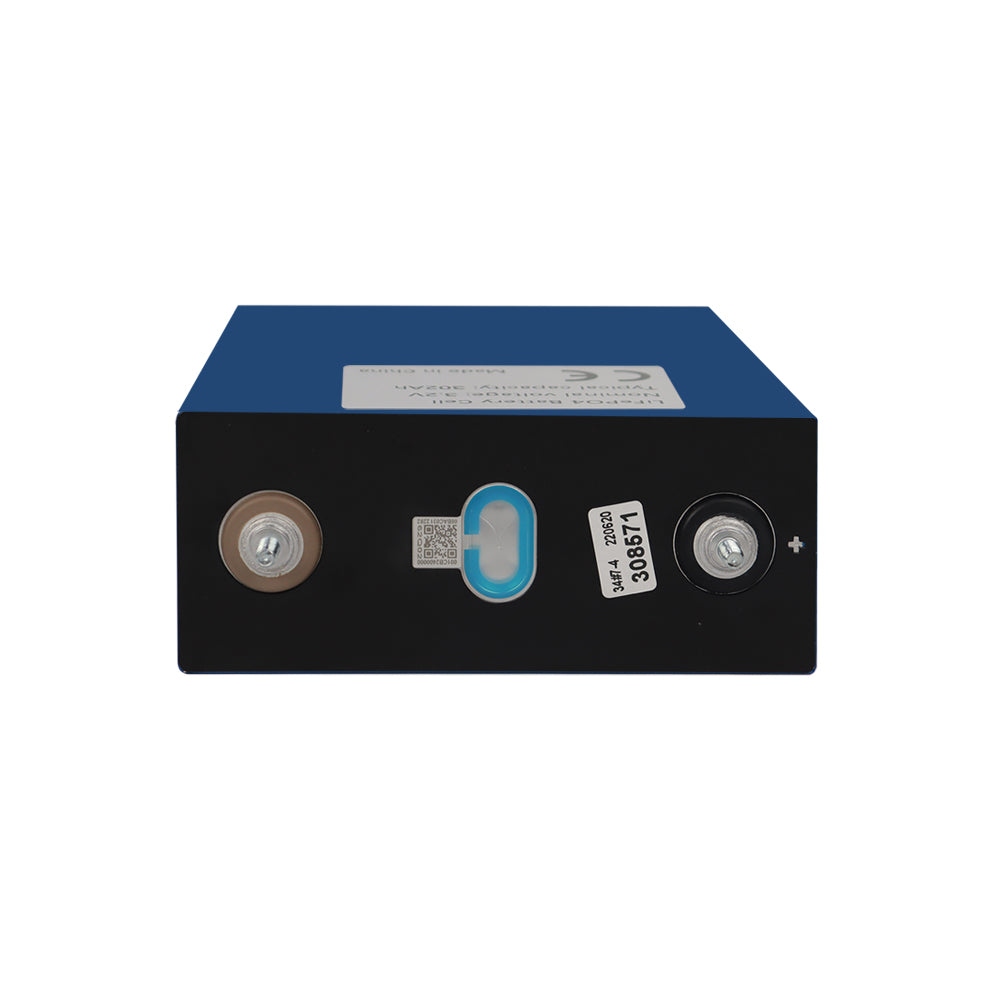

Terminal: M6 Laser Welding Screw Hole
Cycle Performance: ≥4000 Cycles(0.5C/0.5C, 25±2°C, SOC≥80%)
Standard Charge/Discharge Current: 0.5C/0.5C
Standard Charge/Discharge Cut-off Voltage: 3.65V/2.5V
Max Continuous Charge/Discharge Current: 1C/1C
Recommended SOC window: 10%～90%
Residual Capacity Loss: Per month ≤3.5%
Charging Temperature: 0℃~65℃
Discharging Temperature: -30℃~65℃
Storage Temperature: -30~60°C

Document Download:

CATL 302Ah LiFePO4 Battery Cell Product Specification.pdf
