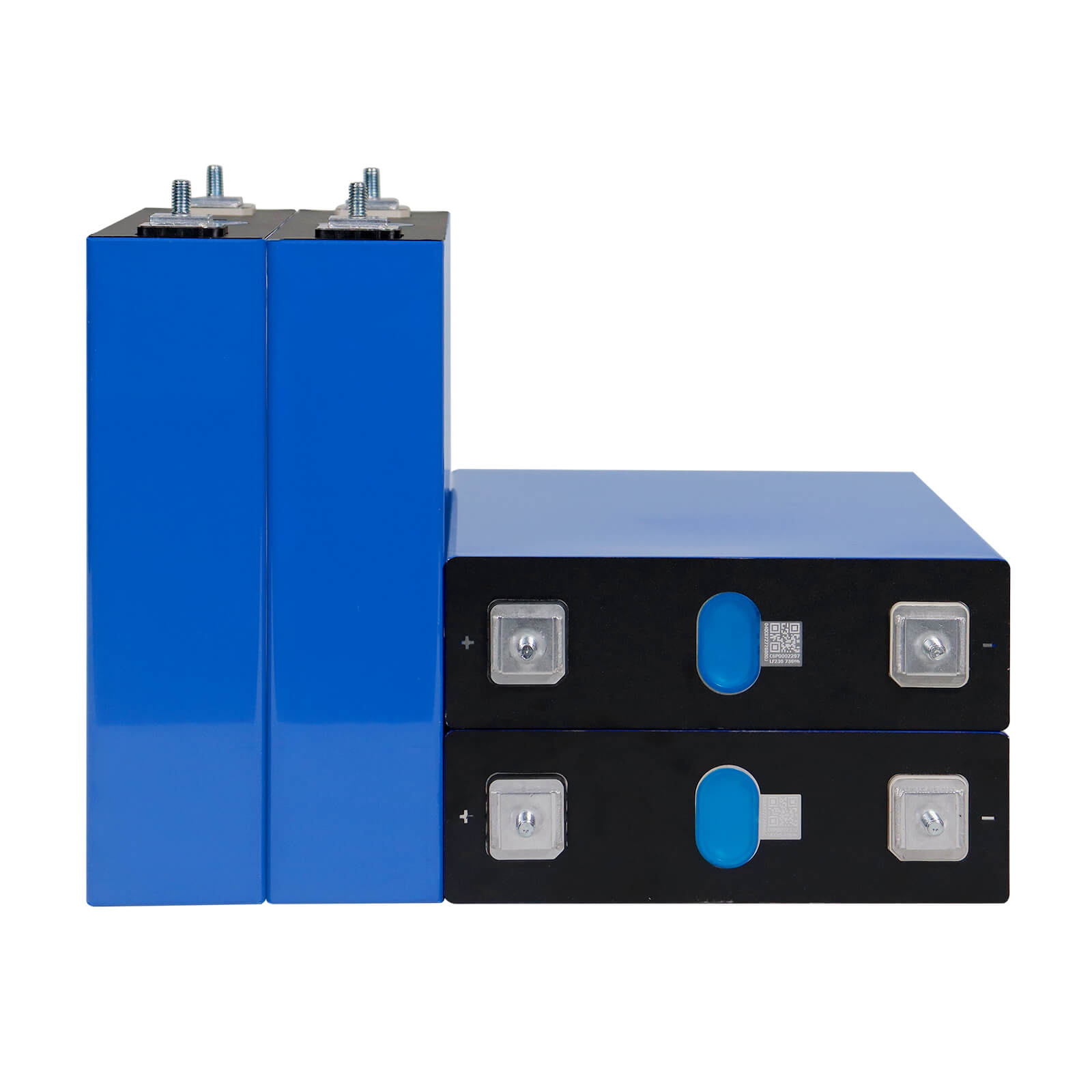

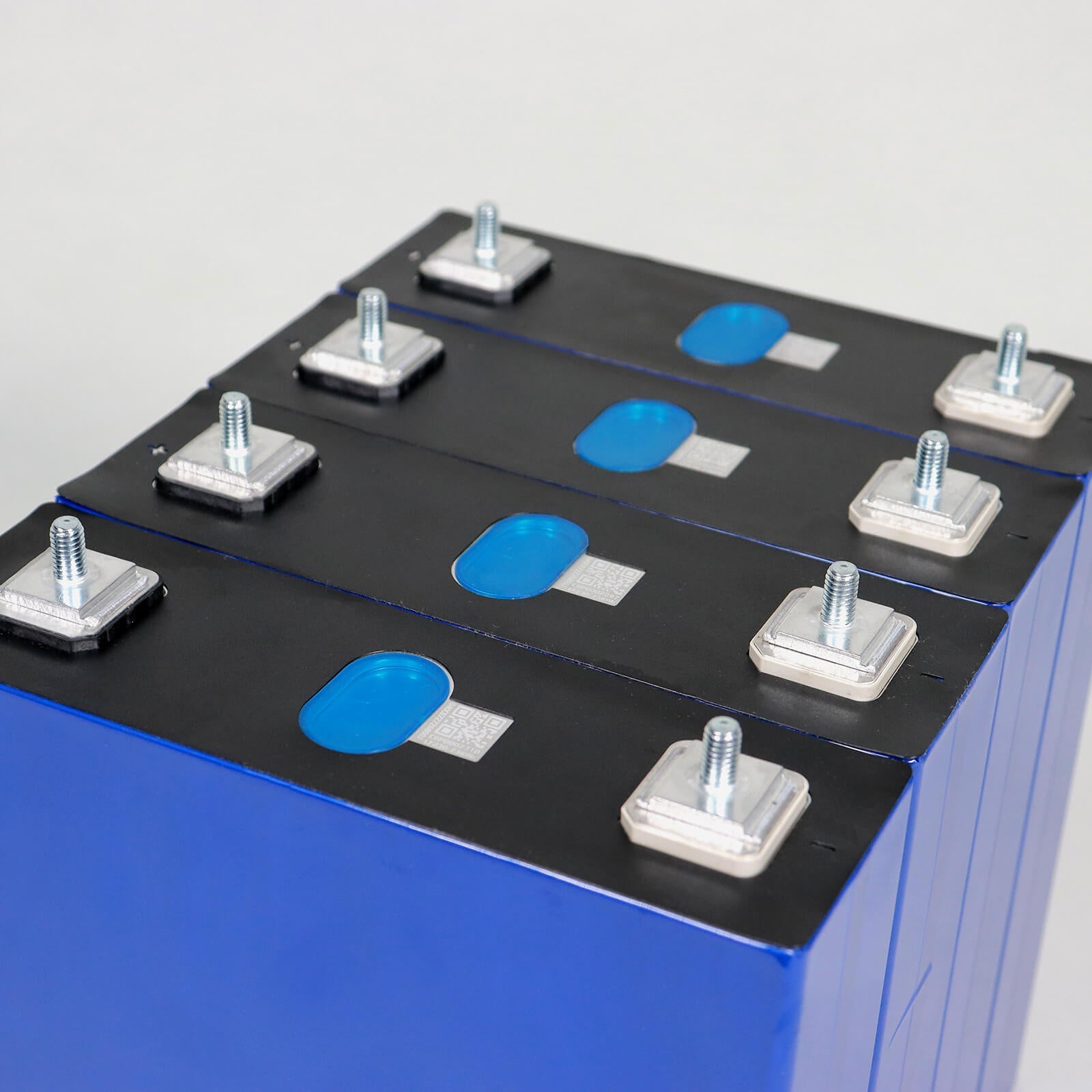

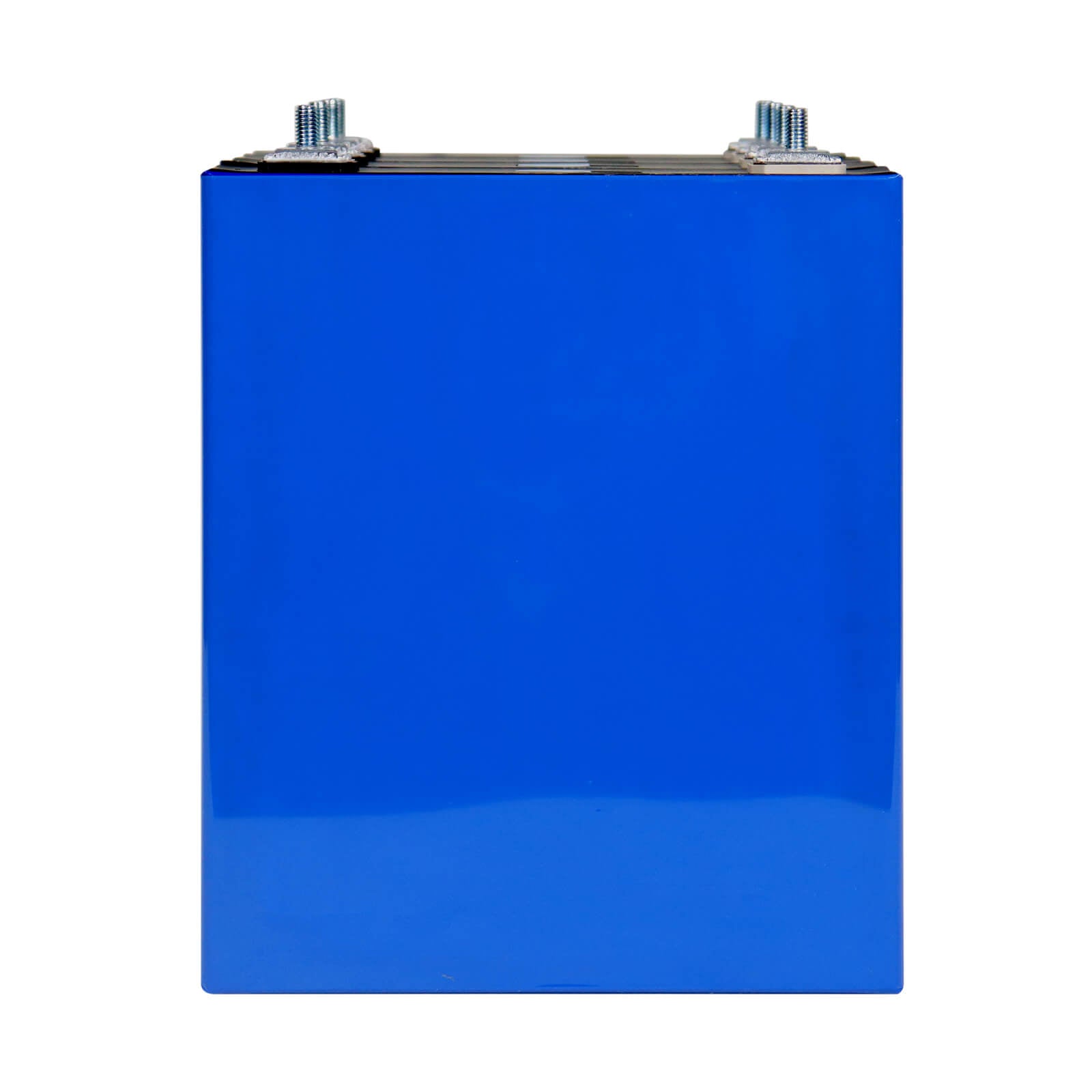

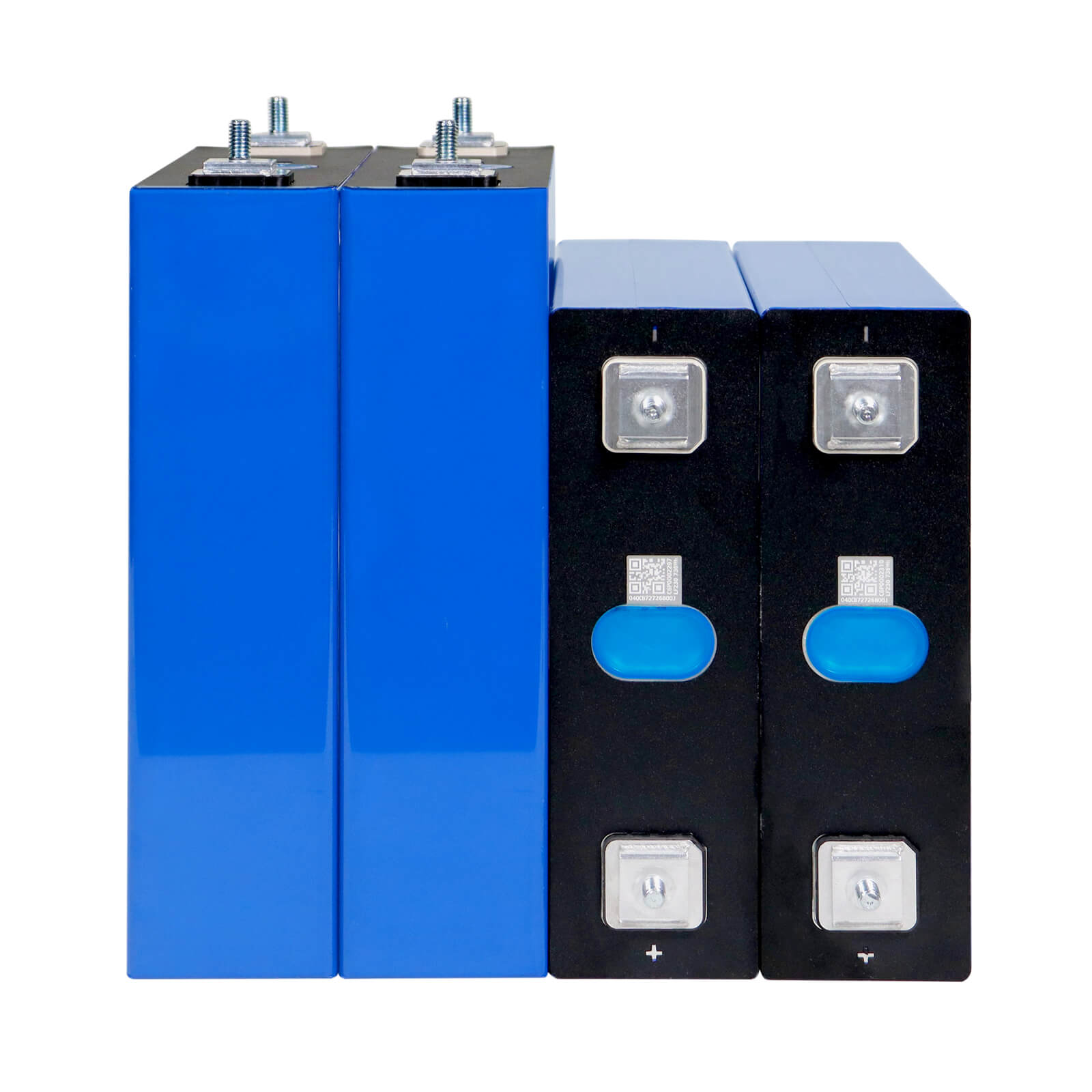

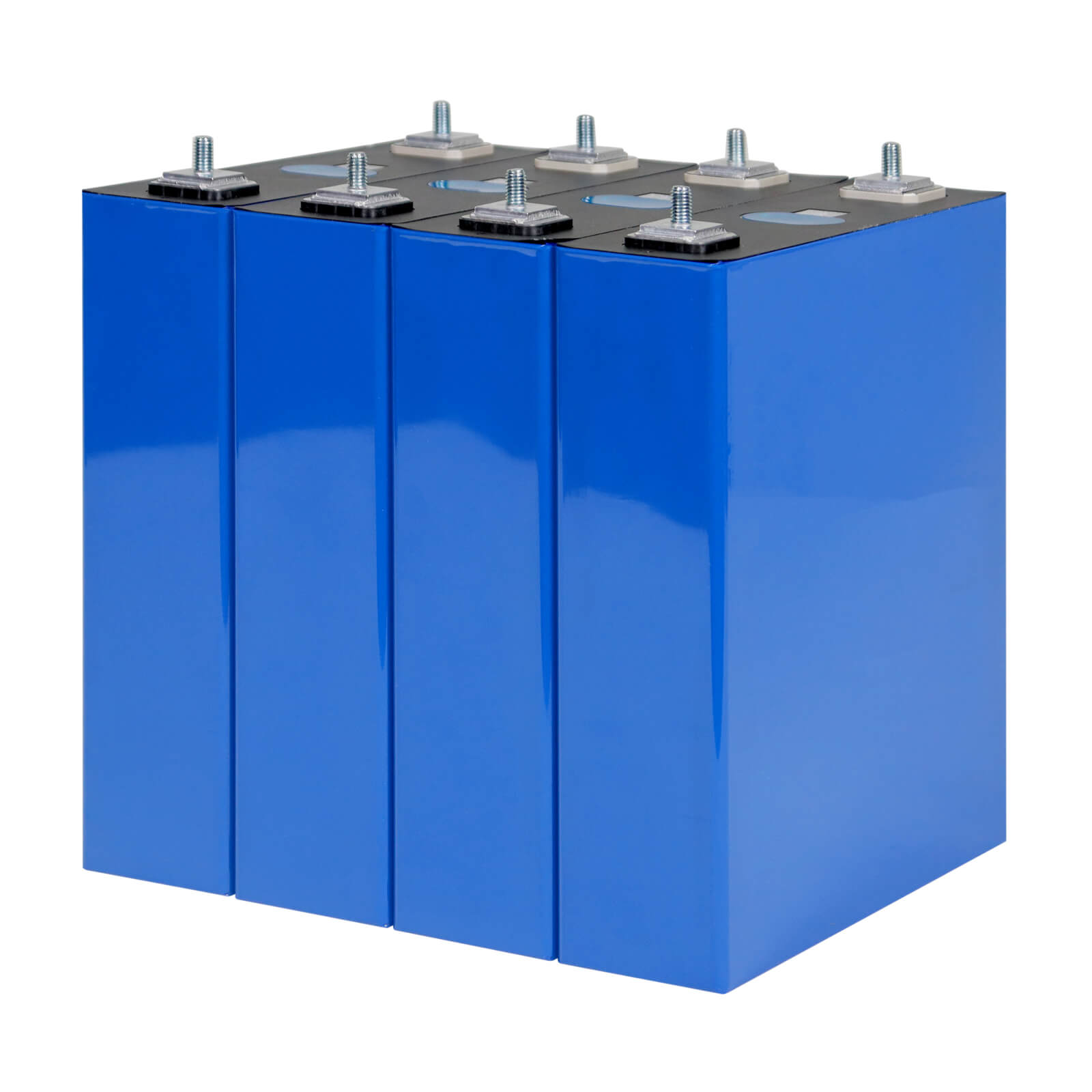

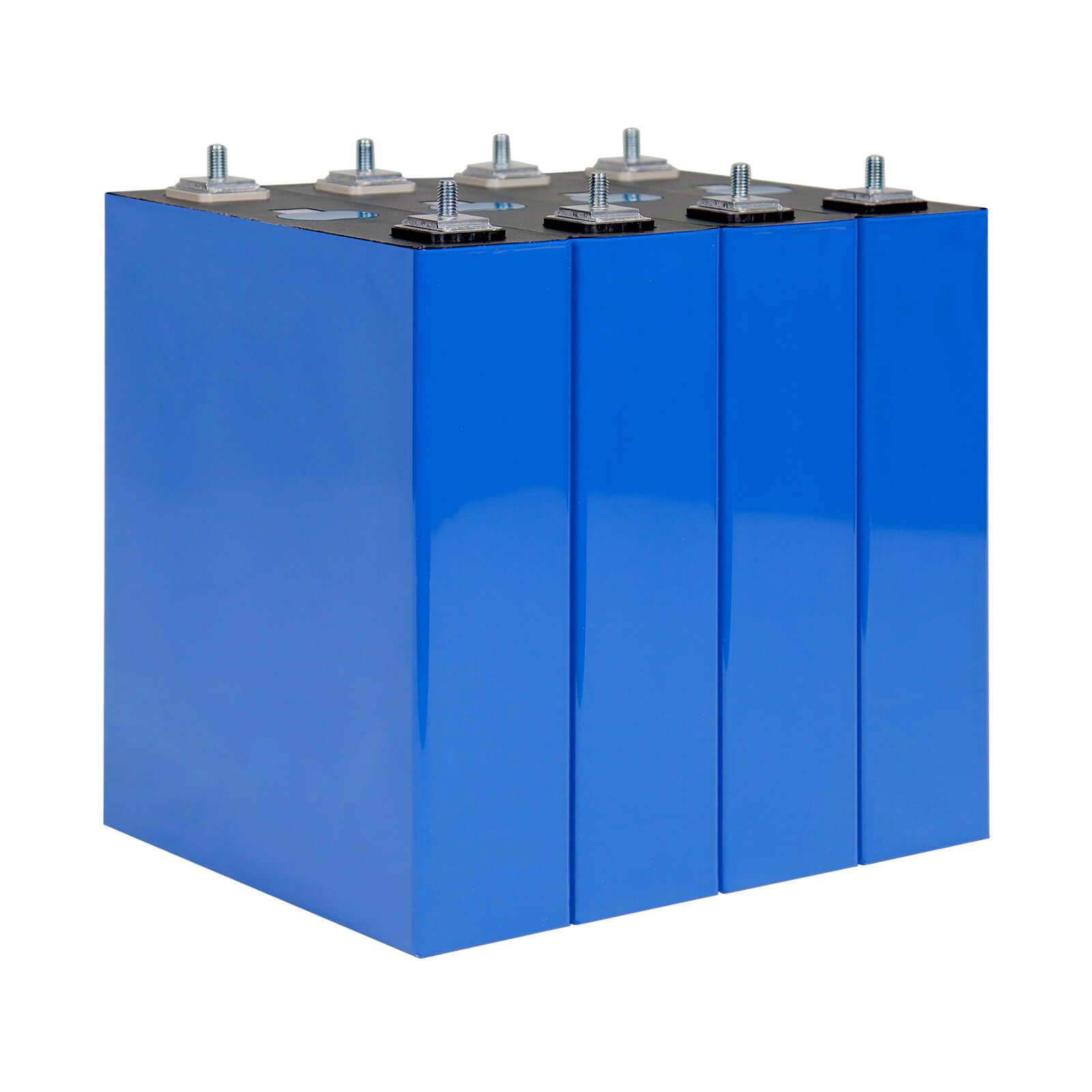

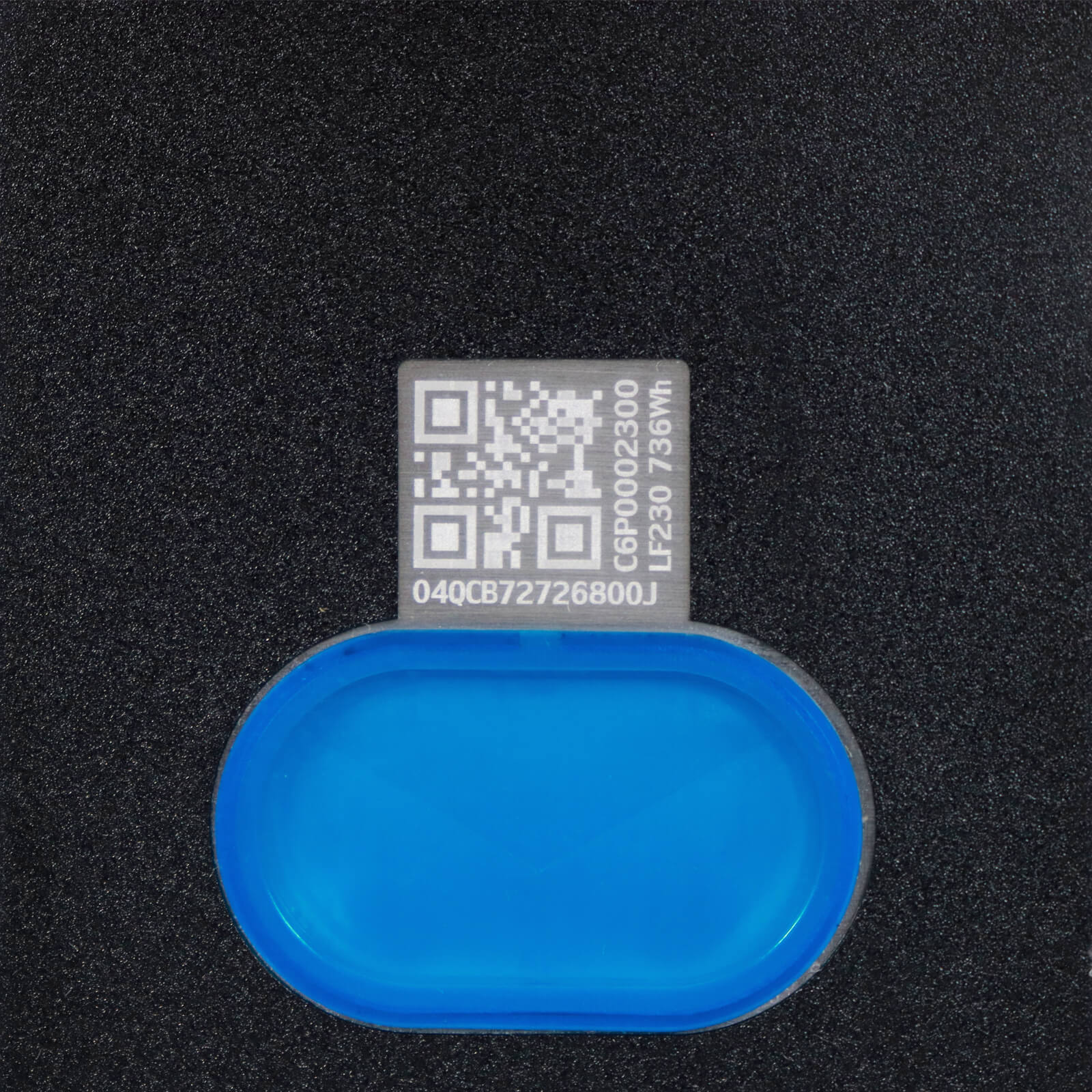

EVE 3.2V 230Ah LiFePO4 Battery Cells - Brand New Grade A with QR Code
Vendor: better-ess
EVE 3.2V 230Ah LiFePO4 Battery Cells - Brand New Grade A with QR Code
1. Free Shipping (Free standard shipping on all orders)
2. 5-Year Warranty (Backed up by technical support within 24hrs)
3. Free Returns (30 Days Hassle Free Return to Our EU Warehouse)
4. 100% Payment Secure (We ensure secure payment with PayPal and credit card)
Note: The Selling Price is the final price, with Free Tax, Free Shipping, and Free Customs! You don't need to pay any other fees. No tax is collected, and you do not need to pay any additional taxes.
Download Document:
EVE 230Ah LiFePO4 Battery Cell Product Specification
| EVE LF230 Battery Specifications | |
|---|---|
| Battery Brand | EVE |
| Battery Model | LF230 |
| Chemistry | Lithium Iron Phosphate (LiFePO4 or LFP) |
| Nominal Voltage | 3.2V |
| Operational Voltage | 2.5 V – 3.65 V |
| Nominal Capacity | 230Ah |
| AC 1kHz Impedance Resistance | ≤0.3mΩ |
| Weight | 4.11±0.1kg |

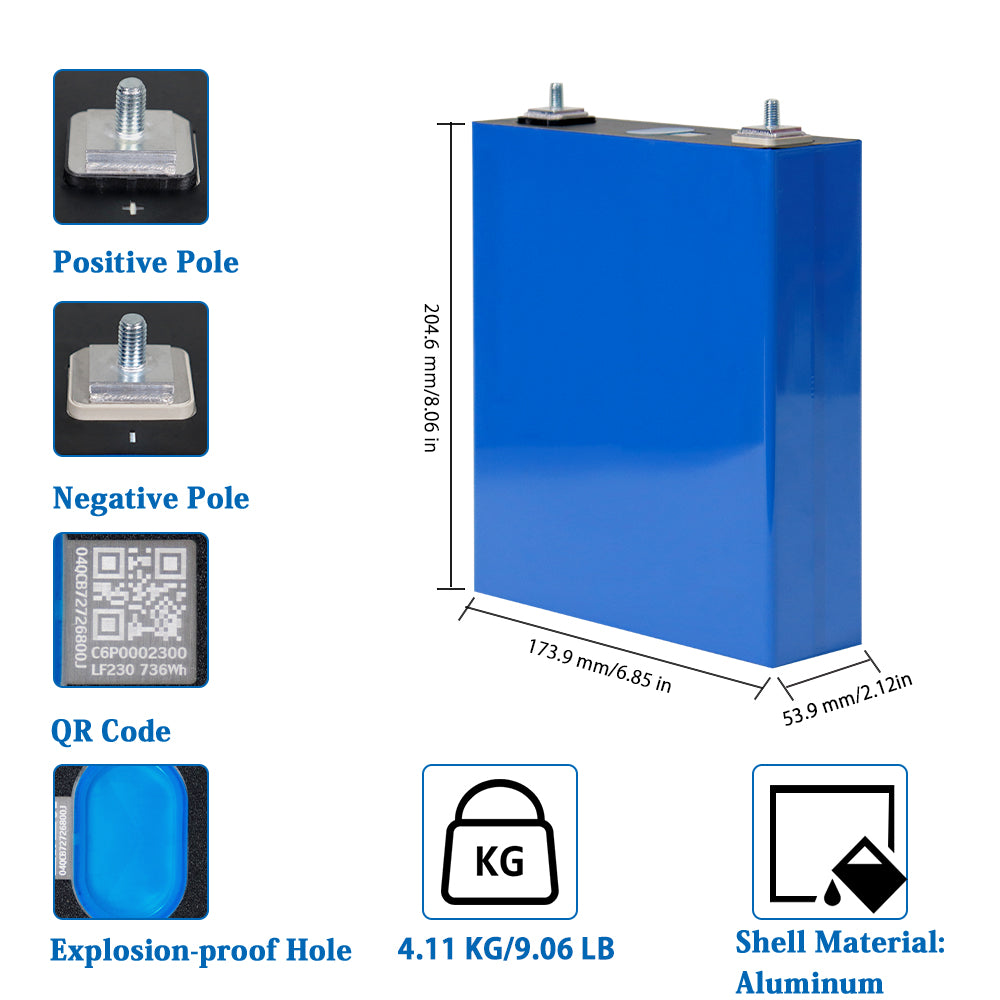

| Dimensions (L×W×H) | 207.3 (with Pole) × 173.93 × 53.85 mm |

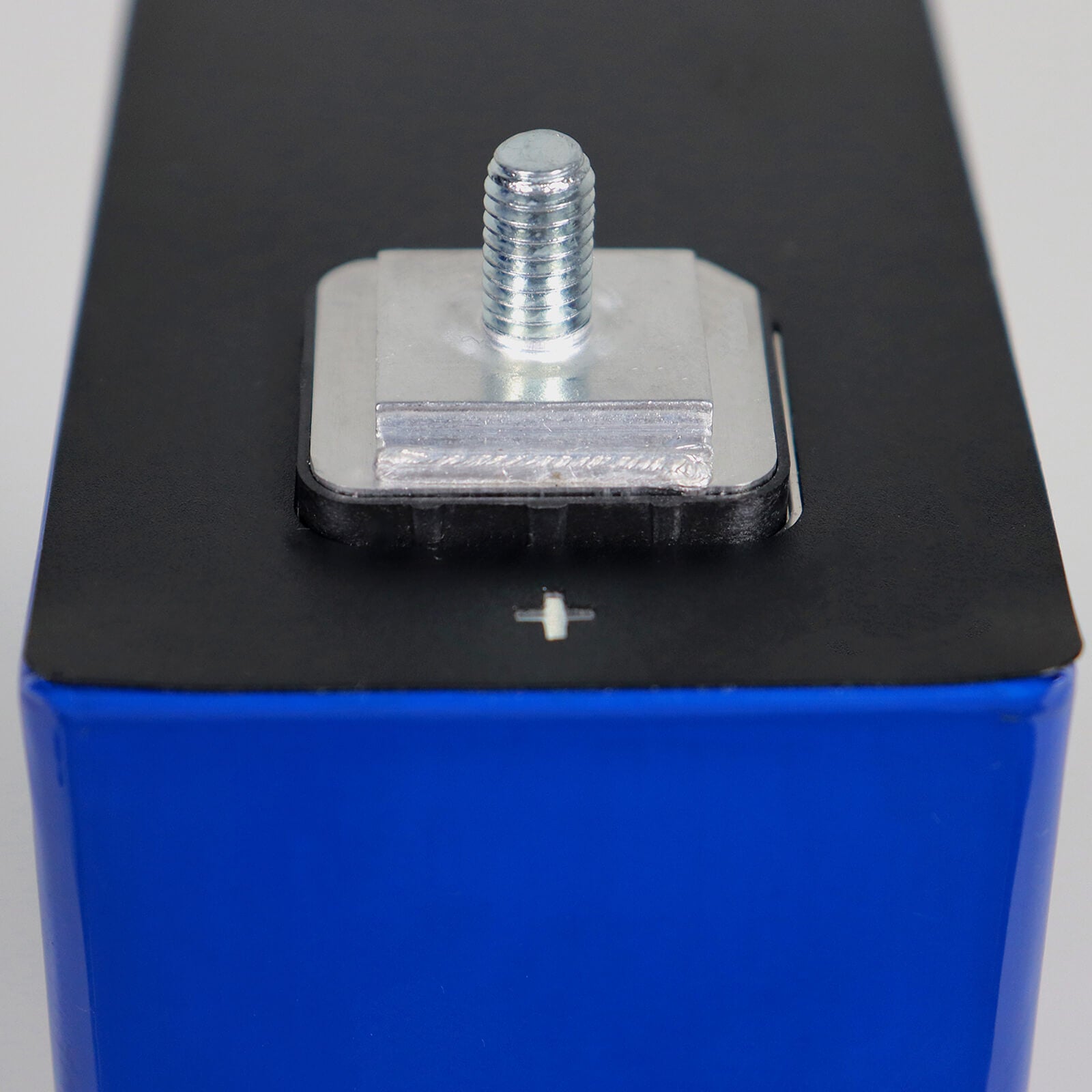

| Terminal | M6 Screw Hole |
| Cycle Life | ≥3500 Cycles (1C/1C, 25±2°C, SOC 80%) |
| Standard Charge/Discharge Current | 0.5C/0.5C |
| Standard Charge/Discharge Cut-off Voltage | 3.65V / 2.5V |
| Max Continuous Charge/Discharge Current | 1C / 1C |
| Max Pulse Charge/Discharge Current (30s) | 2C / 2C |
| Recommended SOC Window | 10% ～ 90% |
| Charging Temperature | 0℃ ~ 60℃ |
| Discharging Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -20°C ~ 45°C |
Q1: What are the environmental features of this battery?
The battery is made from lithium iron phosphate (LiFePO4), an environmentally friendly material that does not contain heavy metals or rare metals. It is safe and stable, not prone to burning or exploding under high temperatures, impacts, or short circuit conditions.
Q2: How should this battery be maintained to prolong its lifespan?
Regularly check the battery's exterior and connections to keep them clean and dry. Avoid keeping the battery in a state of overcharge or deep discharge for extended periods. Be mindful of the ambient temperature during use; avoid charging in extremely cold conditions.
Q3: What are the installation requirements for this battery?
The battery can be installed in any position as it does not contain acid. Ensure that the battery is securely mounted to prevent vibrations and impacts during movement.
Q4: How long do BetterESS batteries last?
Our LiFePO4 lithium iron batteries can provide 2000+ cycles, which is significantly more compared to the 300–500 cycles typically found in lead-acid batteries. The service life of LiFePO4 batteries is 8 to 10 times longer than standard lead-acid batteries.
Q5: Are your batteries safe?
Yes, our LiFePO4 batteries are designed with safety in mind. They are manufactured using Automotive Grade LiFePO4 Cells, offering higher energy density, no memory effect, and more stable performance. The stable chemical structure of LiFePO4 ensures they do not burn or explode, even under high temperatures, short circuits, impact, or drops.
Q6: Are there any special handling or maintenance tips for this battery?
The LiFePO4 battery requires minimal maintenance. However, it is recommended to regularly check connections and ensure the battery is kept in a dry and ventilated space. Avoid exposure to extreme temperatures to prolong battery life.
