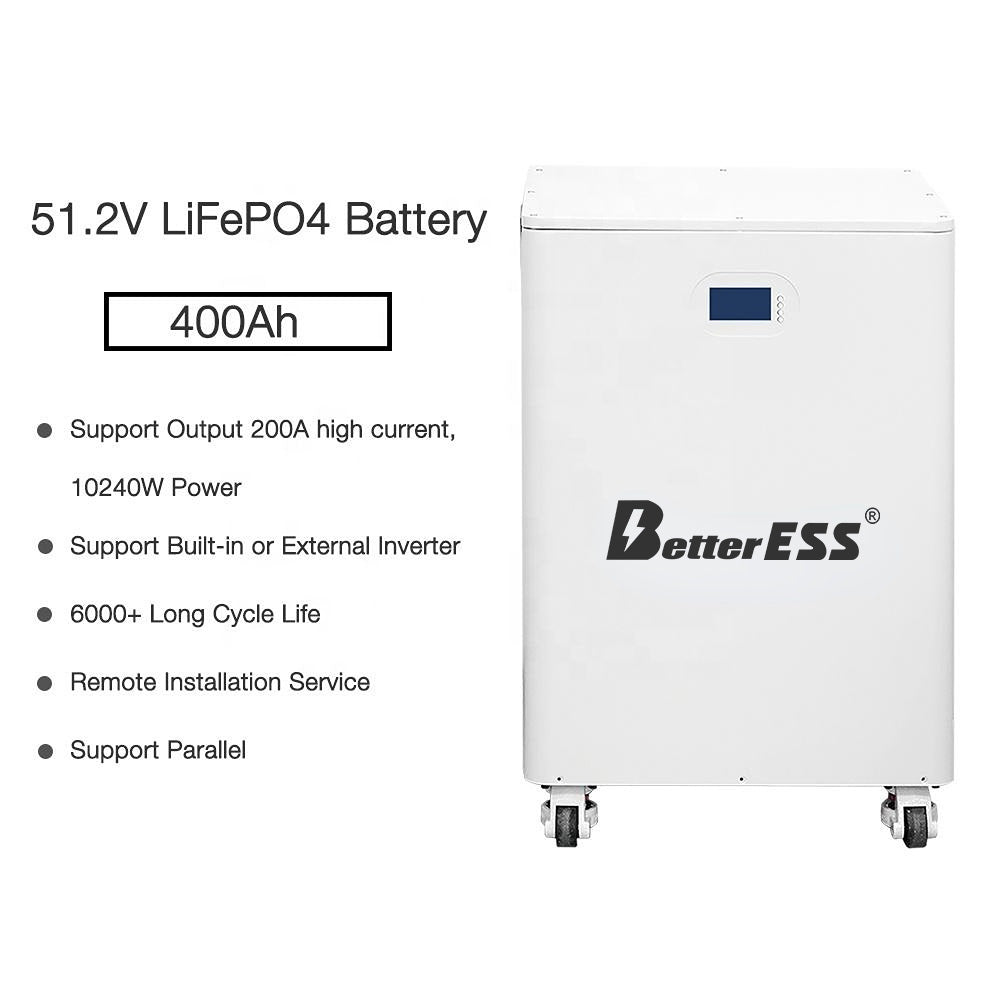

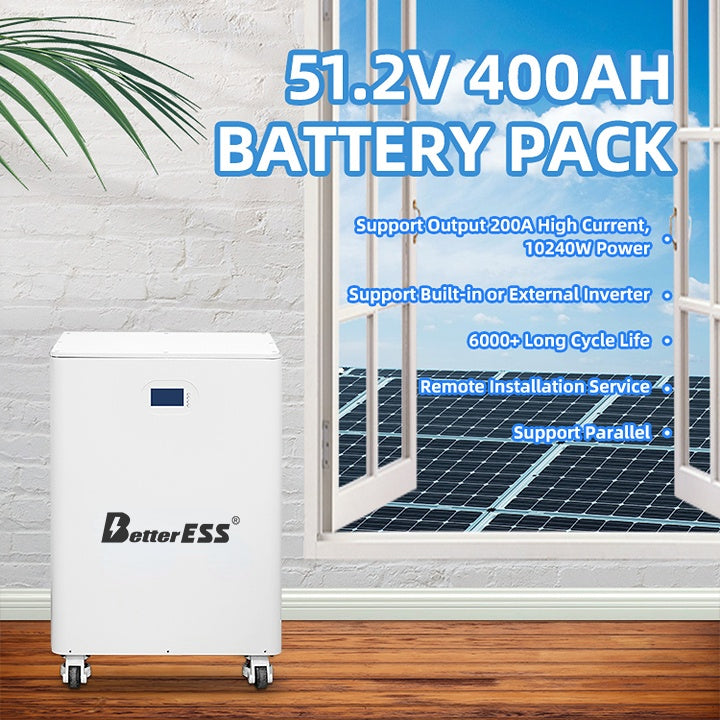

Better-ESS 51.2V 400Ah 20KWh LiFePO4 Mobile ESS With Active Balancer
Better-ESS 51.2V 400Ah 20KWh LiFePO4 Mobile ESS With Active Balancer
Couldn't load pickup availability
Free Shipping & TAX
Our current price is the final price, free shipping and tax, you don't need to pay any other fees.

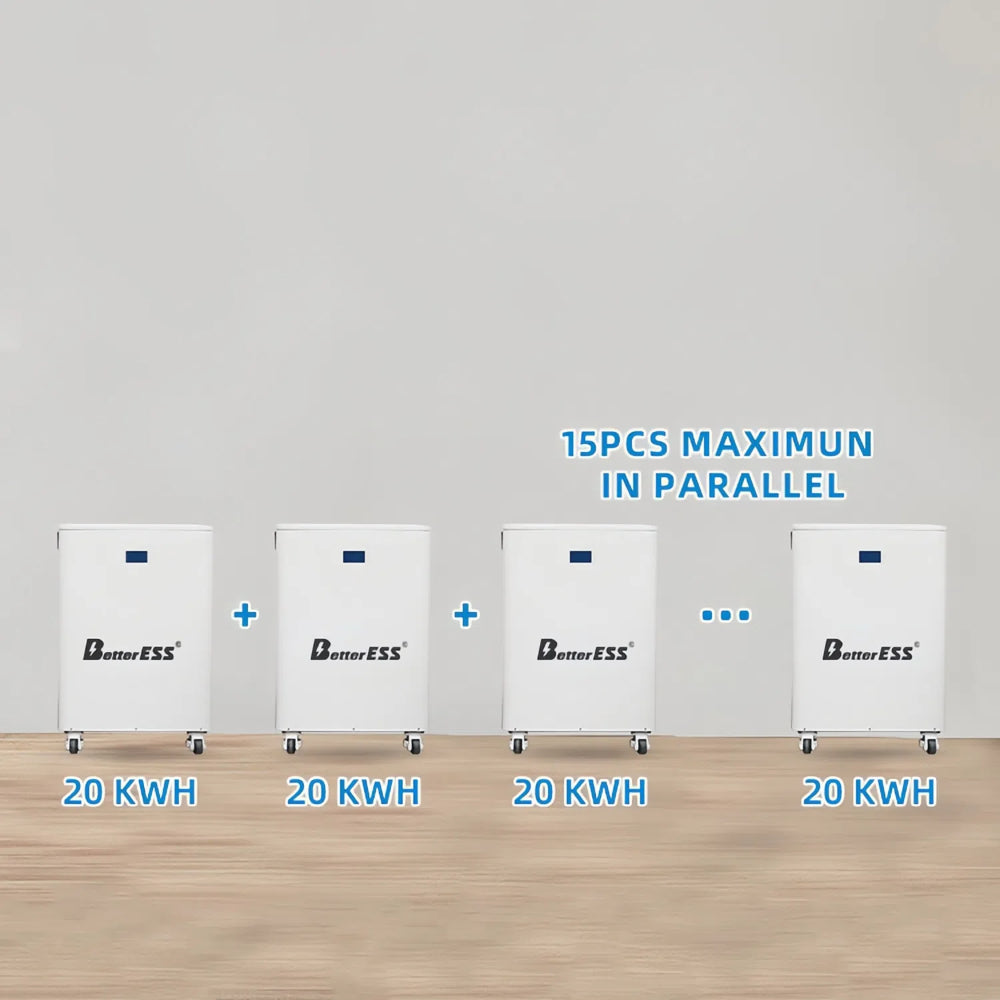

【Energy Expansion】: Better ESS 20KWh lifepo4 battery supports parallel connection to expand capacity

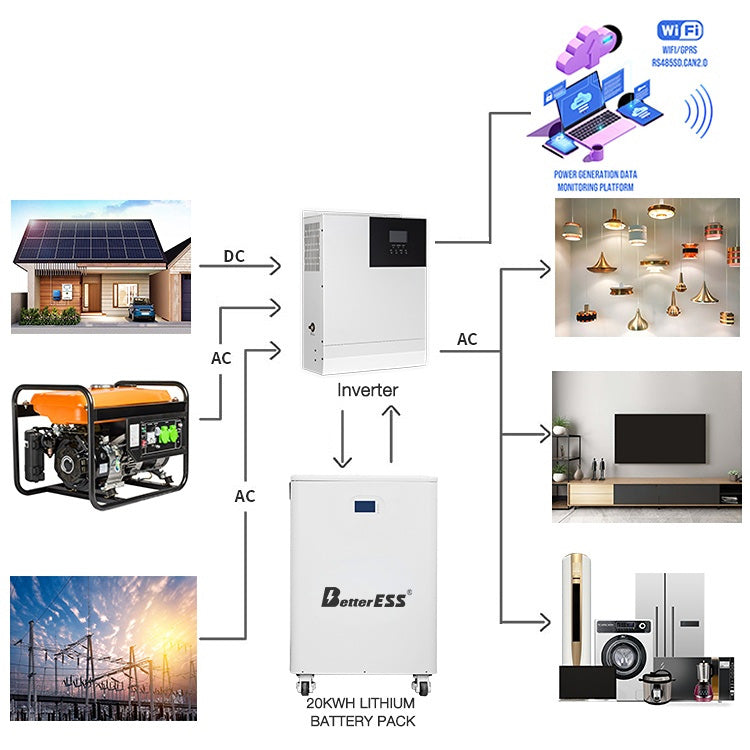

【Usage】: Better ESS lifepo4 mobile energy storage battery perfect for solar home systems, power outages, off-grid living.
【Feature】: Better ESS 400Ah 20KWh lithium battery built-in active balancer module and lifepo4 temperature-sensitive fire extinguisher. But only models shipped from China come with equalization modules.
| Project | ||||
| Model | BE-MB51600- 300A-HWB |
BE-MB51400- 300A-HWB |
BE-MB51600- 200A-HWB |
BE-MB51400- 200A-HWB |
| Nominal capacity |
600AH | 400AH | 600AH | 400AH |
| Nominal voltage |
51.2V | |||
| Charging voltage |
56.8-57.6V | |||
| Operating voltage |
43.2V~58.4V | |||
| Standard Charging current |
0.2C | |||
| Standard charging mode |
At a temperature of 25℃,charge to 58.4V with a constant current of 0.2C5A,and then change continuously with a constant voltage of 58.4V until the current is not greater than 0.02C5A. |
|||
| Max. charging current |
300A | 200A | ||
| Max. discharge current |
300A | 200A | ||
| Max.output power | 15000W | 10000W | ||
| Charging temperature |
0℃to 45℃(32F to113°F)@60±25%relative humidity | |||
| Discharge temperature |
-20℃to60℃(-4°F to 140°F)@60±25%relative humidity | |||
| Storage temperature |
-20℃to60℃(-4°F to 140°F)@60±25%relative humidity | |||
| Line joint | 350A Self-Locking Fitting Quick Release Connector |
250A Self-Locking Fitting Quick Release Connector |
||
| Net Weight Approx. |
268KG | 218KG | ||
| Communication protocol |

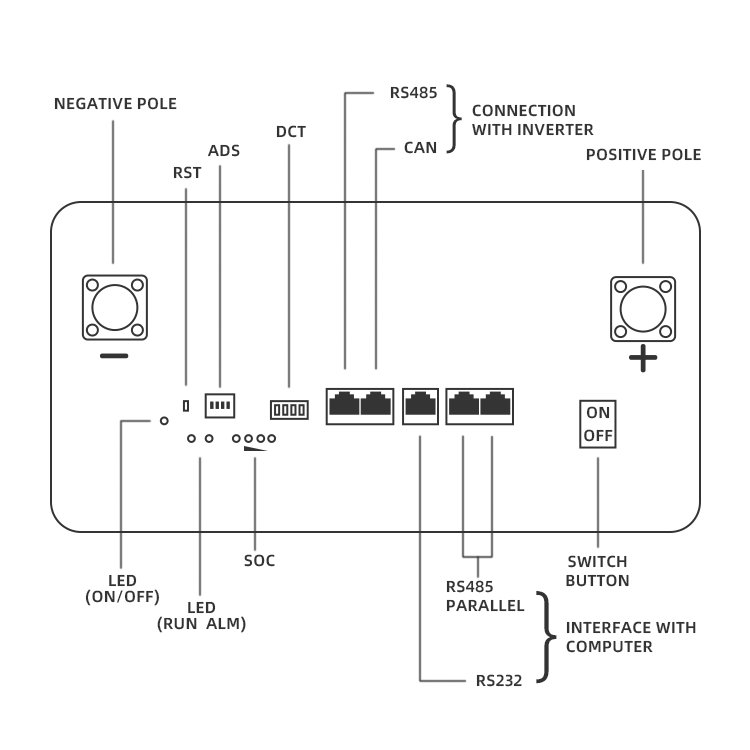

RS485、RS232、CAN、WiFi | RS485、RS232、CAN | ||
| Suppot inverter brand |
Growatt、Deye、Goodwe、voltronic、Sofar、VICTRON、 Megarevo、SRNE、PYLON、Luxpowertek、Sorotec、SMA、 GINLONG、MUST、TBB、STUDER |
|||
Precautions：
•No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
• Please check the orientation of the positive and negative terminals before packaging.
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Important Notes：
1. Do not charge beyond the maximum charging rate.
2. Do not disassemble or modify the battery.
3. Do not throw or hit the battery.
4. Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
5. Do not mix with other types of batteries or modular units.
6. Do not excessively squeeze the battery during use.
7. Do not place the battery in a high temperature greater than 60°C.
8. Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).
No certification available for this product.
