Note: This models shipped from China come with Active Balancer and Temperature controlled fire extinguisher
General Specifications
| Model | BE-WM51200-100A-HWB (5120W) | BE-WM51200-200A-HWB (10240W) | ||
| Nominal Capacity | 100Ah@0.2C | 200Ah@0.2C | ||
| Nominal Voltage | 51.2V（16S） | 51.2V（16S） | ||
| Energy | 5120Wh | 10240Wh | ||
| BMS | 100A | 200A | ||
| Internal Resistance | 40≤mΩ | 100≤mΩ | ||
|
Cycle Life |
>4000 Cycles @ 0.2C/25℃ Charging/Discharging at 100%DOD, Until 100% Capacity. | >4000 Cycles @ 0.2C/25℃ Charging/Discharging at 100%DOD, Until 100% Capacity. | ||
| >6000 Cycles @ 0.2C/25℃ Charging/Discharging at 80%DOD,Until 80% Capacity. | >6000 Cycles @ 0.2C/25℃ Charging/Discharging at 80%DOD,Until 80% Capacity. | |||
| Self Discharge | ≤3.5% per month at 25℃ | ≤3.5% per month at 25℃ | ||
| Charging Voltage | 56.8-57.6V | 56.8-57.6V | ||
| Charging Mode（CC/CV） | At 0℃~45℃ temperature, charged to 54.75V at a constant current of 0.2C5A, and then, changed continuously with a constant voltage of 54.75V until the current was not more than 0.02C5A. | At 0℃~45℃ temperature, charged to57.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 57.6V until the current was not more than 0.02C. | ||
| Charging Current | 40A | 40A | ||
| Max.Charging Current | 100A | 200A | ||
| Discharging Current | 40A | 40A | ||
| Max. Continuous Current | 100A | 200A | ||
| Max.Pulse Current | 200A(<30S） | 250A(<1S） | ||
| Discharging Cut-off Voltage | 43.2~44.8V | 43.2~44.8V | ||
| Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | ||
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | ||
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | ||
| Water Dust Resistance | IP55 | IP55 | ||
| Cell & Format | IFR N100,15S1P | IFR N100,16S1P | ||
| Casing | SPCC | SPCC | ||
| Dimension(L*W*H*TH) | 742*420*235mm | 700*420*235mm | ||
| Weight | 86Kg | 107Kg | ||

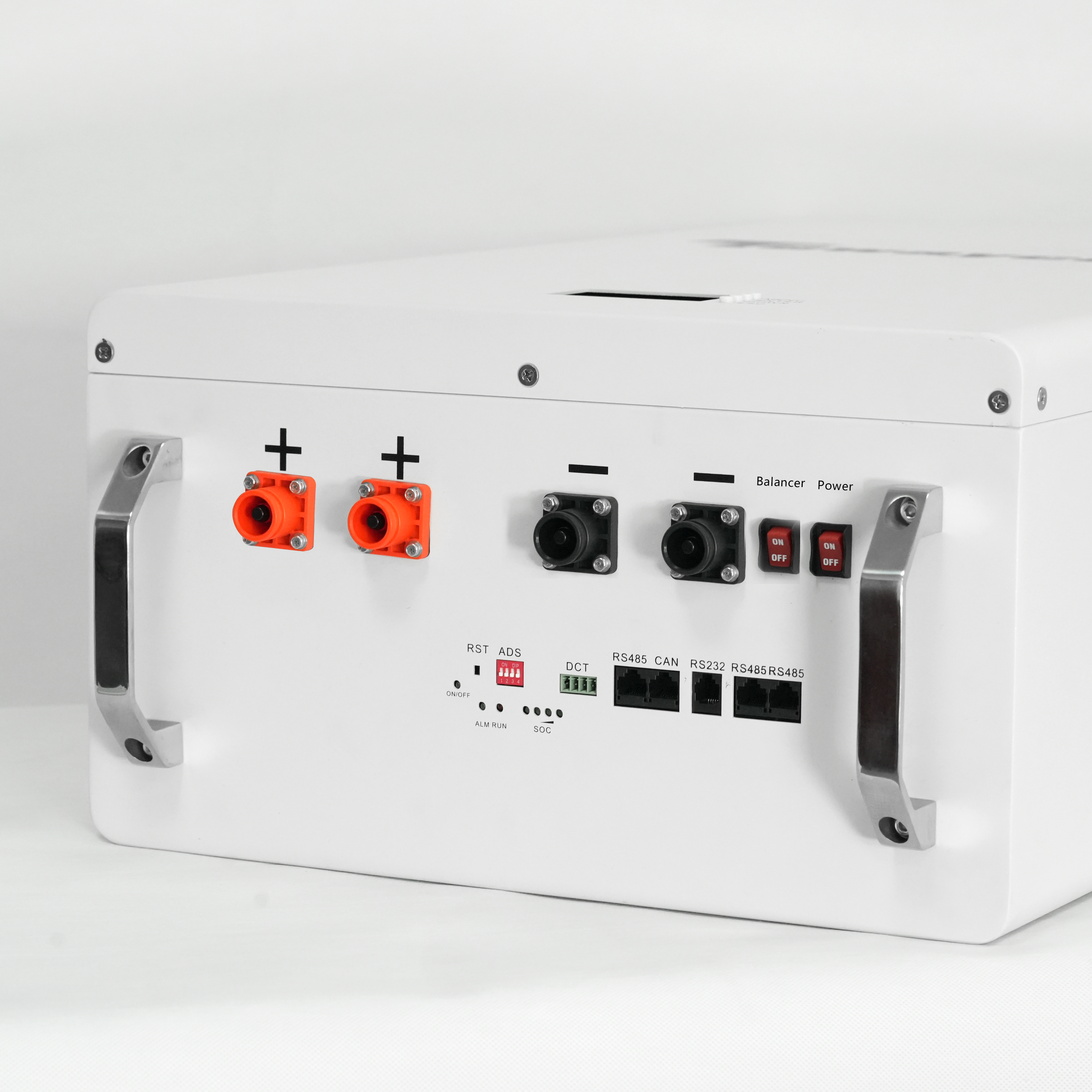

| Terminal | 120A quick plug self-locking plug*4 | 120A Quick-plug self-locking plug | ||
| Expand | 2-15 in Parallel | 2-15 in Parallel | ||

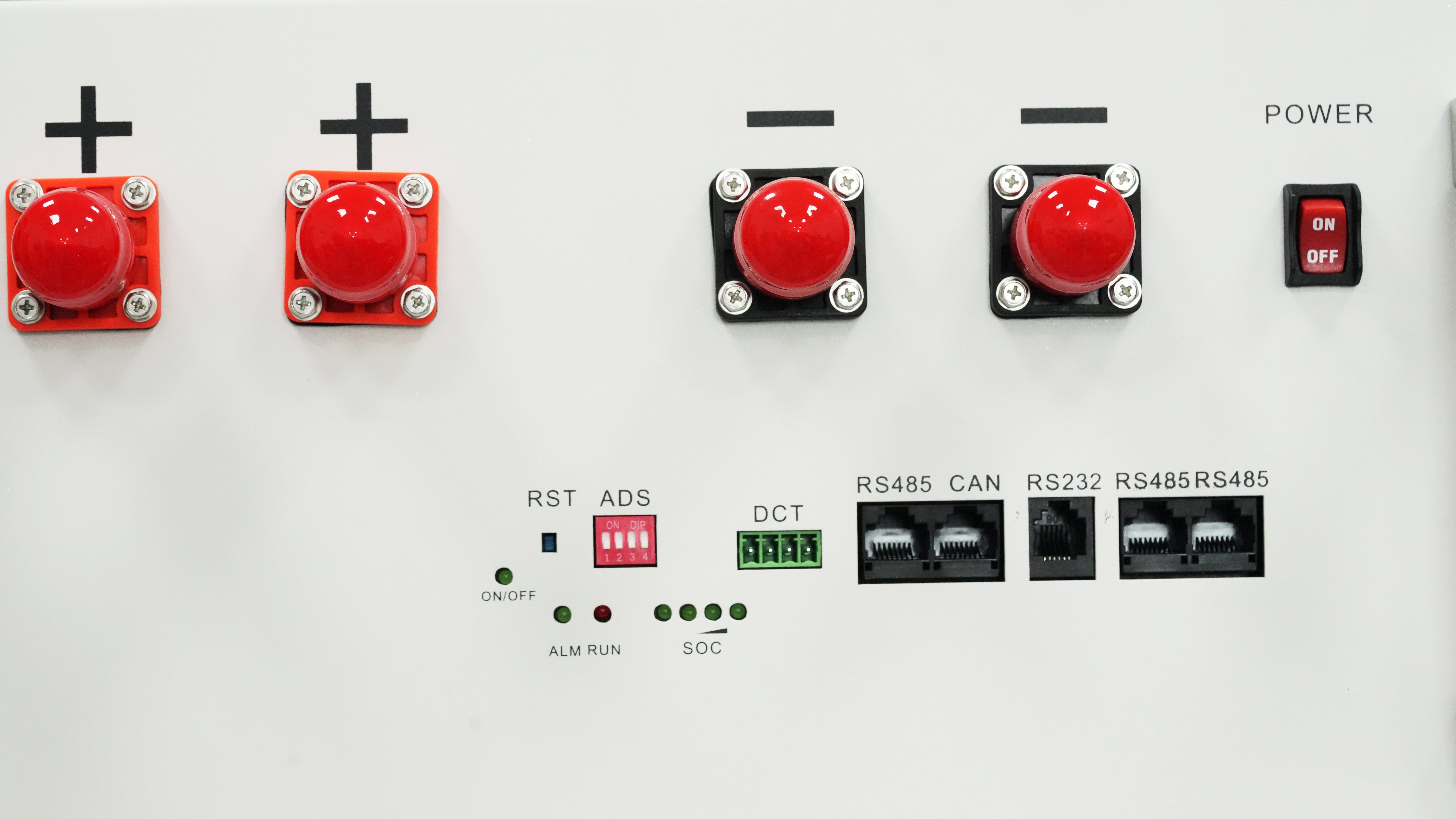

| Communication Ports: | RS485/CAN*2, RS232*1 | RS485、RS232、CAN | ||
| Compatible Inverter Brands | Growatt、Deye、Goodwe、voltronic、Sofar、vICTRON、Megarevo、SRNE、 PYLONTECH、Luxpowertek、Sorotec、SMA、GINLONG、MUST、TBB、STUDE | Growatt、Deye、Goodwe、voltronic、Sofar、vICTRON、Megarevo、SRNE、 PYLONTECH、Luxpowertek、Sorotec、SMA、GINLONG、MUST、TBB、STUDE | ||
Precautions:
•No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
• Please check the orientation of the positive and negative terminals before packaging.
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Important Notes：
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not place the battery in a high temperature greater than 60°C.
Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).
