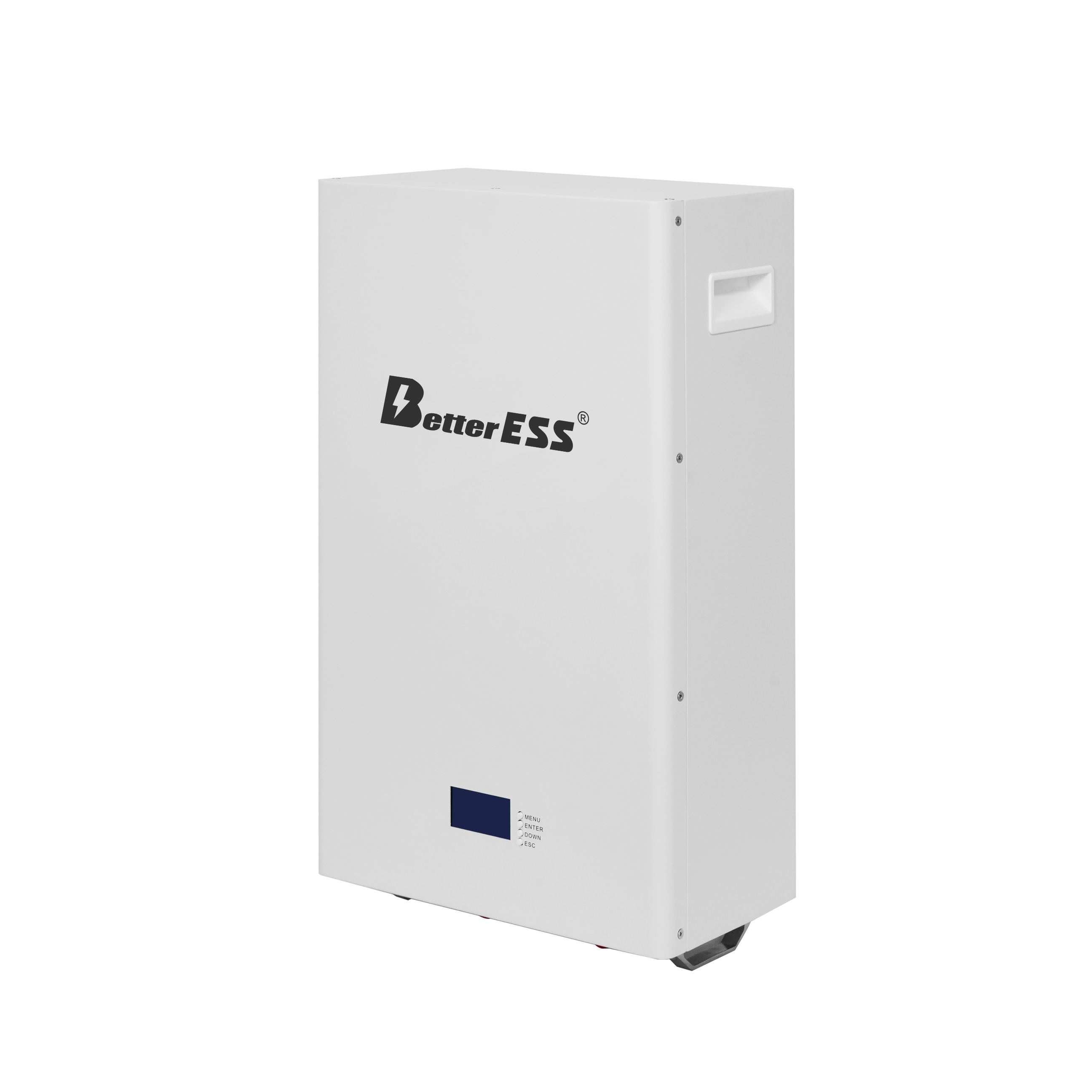

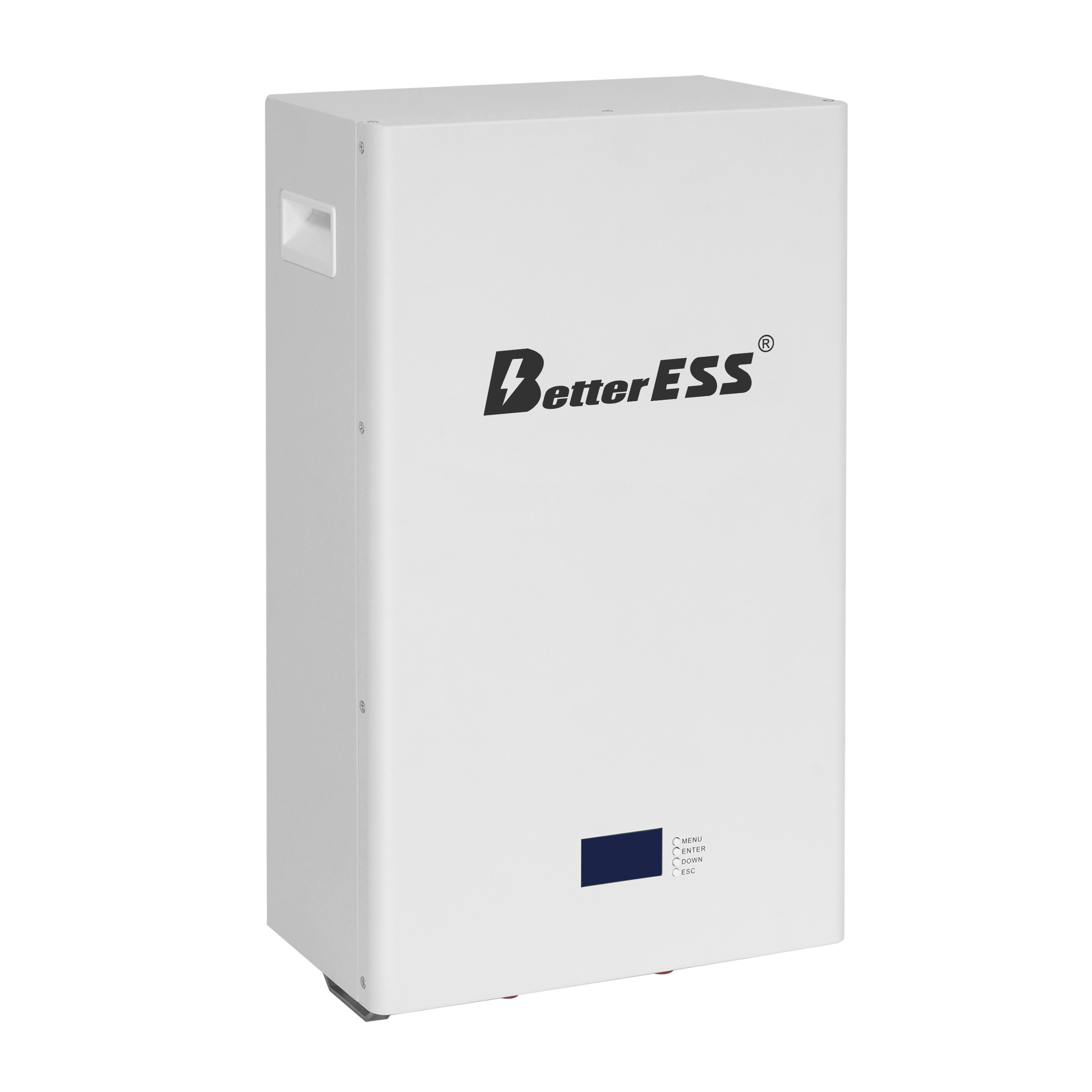

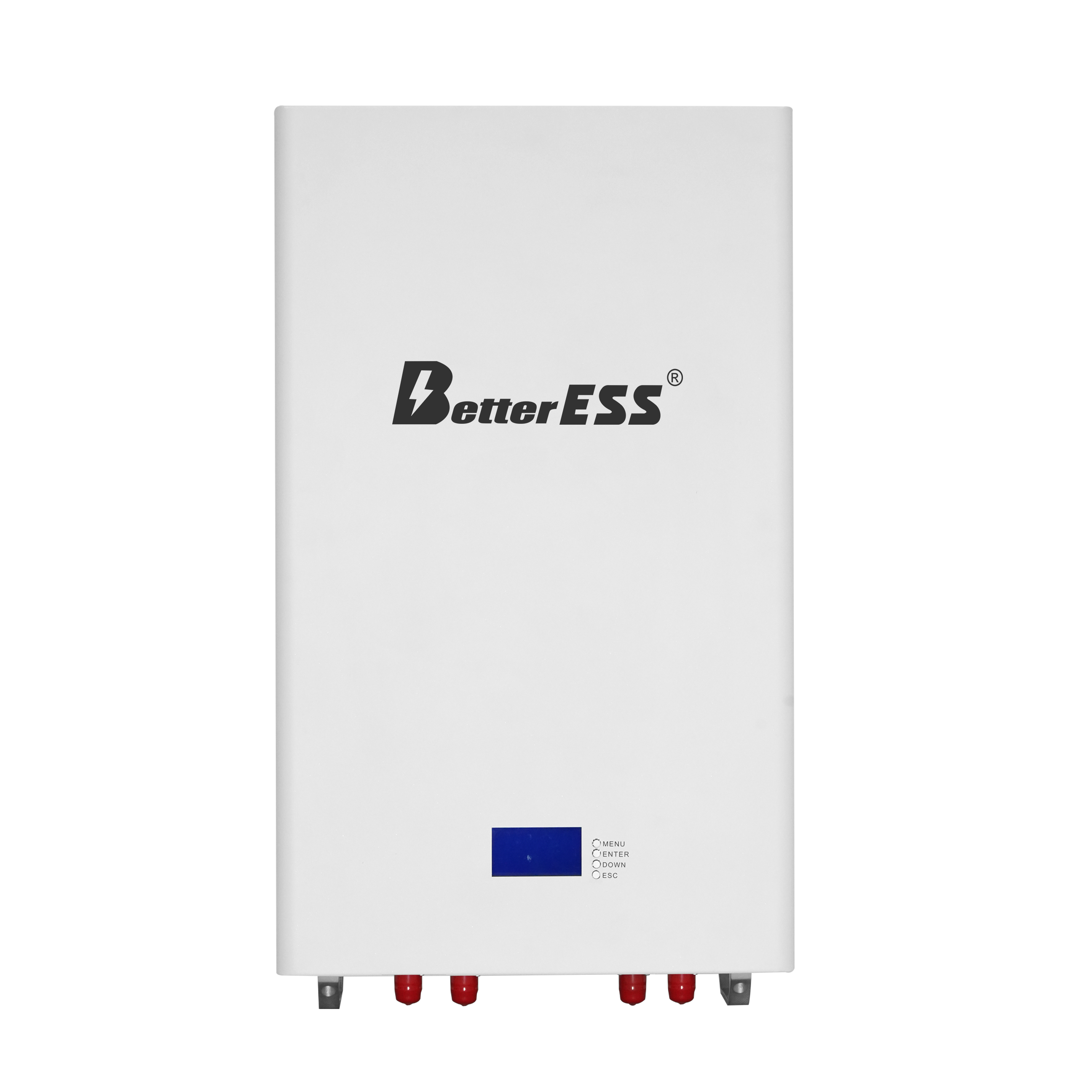

Better-ess 48V 51.2V 100Ah LiFePO4 Wall-Mounted ESS With Active Balancer

$1,229.99 USD

Sale Sold out

Shipping calculated at checkout.

MODEL 51.2V 100Ah 16S

Quantity

Our current price is the final price, free shipping and tax, you don't need to pay any other fees.

No tax is collected, and you don't need to pay any additional taxes.

Note: This models shipped from China come with Active Balancer and Temperature controlled fire extinguisher

Electrical Characteristics	Nominal Capacity	100Ah@0.2C
	Nominal Voltage	48V（15S）/51.2V (16S)
	Energy	4800Wh/5,120Wh
	Internal Resistance	100≤mΩ
	Cycle Life	>6000 Cycles @ 0.2C Charging/Discharging at 90%DOD,Until 70% Capacity.
	Self Discharge	≤3.5% per month at 25℃
	Charging Voltage	53.2-54V/56.8-57.6V
Standard Charging	Charging Mode（CC/CV）	At 0℃~45℃ temperature, charged to54.75V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 54.75V until the current was not more than 0.02C5A.
	Charging Current	40A/30A/20A
	Max.Charging Current	100A
	Discharging Current	40A/30A/20A
Standard Discharging	Max. Continuous Current	100A
	Max.Pulse Current	150A(<30S）
	Discharging Cut-off Voltage	40.5~42.0V
	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Operating Condition	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP55
	Cell & Format	IFR N100,15S1P
Structure	Casing	SPCC
	Dimension(LWH*TH)	420550190 mm
	Weight	48Kg

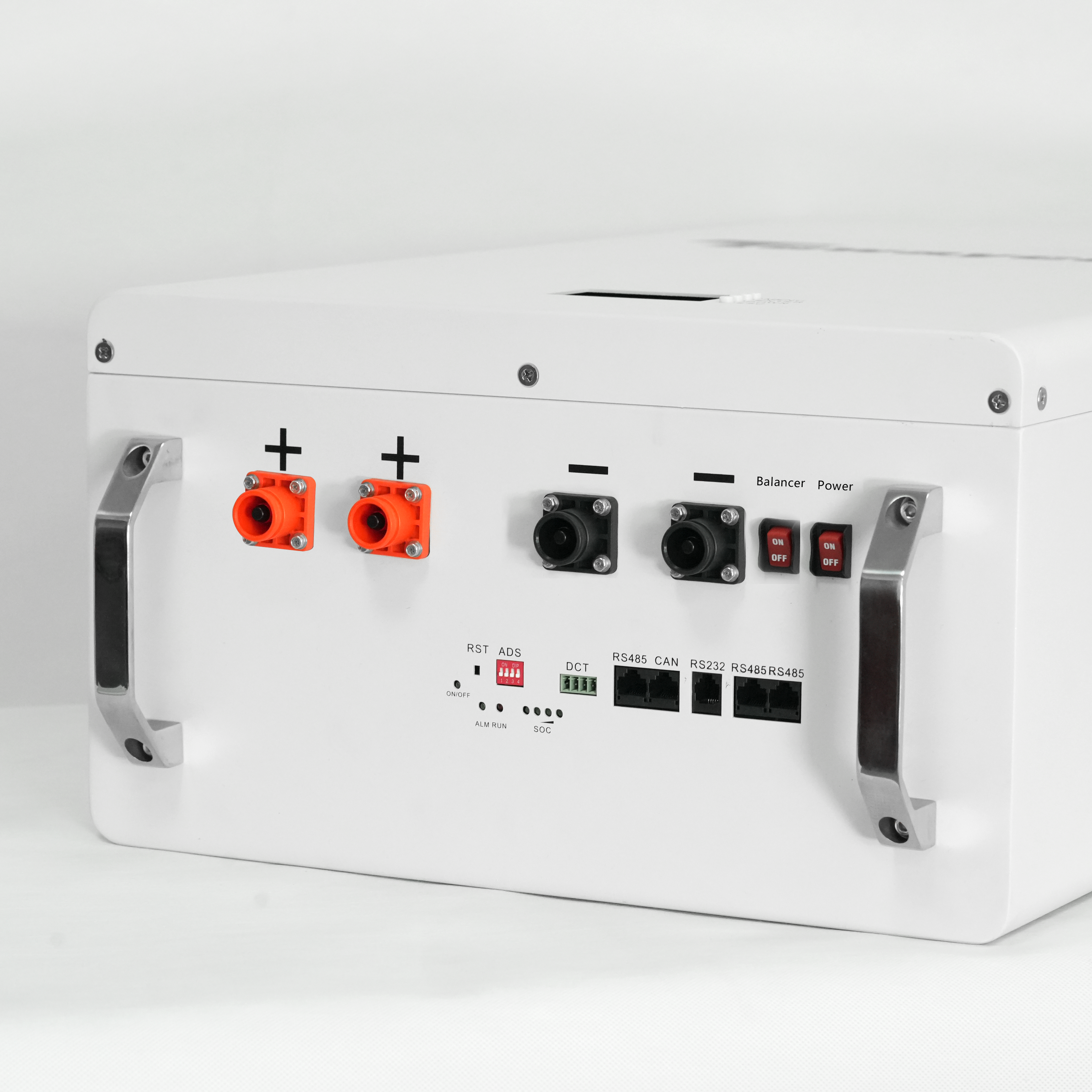

	Terminal	120A quick plug self-locking plug*4
	Expand	2-15 in Parallel
	Communication Ports:	RS485/CAN2, RS2321
	Comatible Inverter Brands(WIFI)	Growatt, Goodwe, SofarSolar, Deye, Voltronic, Victron, SRNE, PYLON, SMA, TBB, Luxpowertek, Megarevo, Sorotec, STUDER,MUST...
	Warrantty	10 years Life, 5 years Warranty

No certification available for this product.
