12V 100Ah LiFePO4 Battery User Manual
Regarding the activation and deactivation of Bluetooth functionality, if you do not use the battery, the Bluetooth function will automatically turn off, and it will not produce radiation for you. To reconnect Bluetooth, simply activate the battery after charging or discharging, and then you can reconnect Bluetooth.
|
Android-APP Download |
APPLE-APP Download |
 |
 |
Automatic Self-Heating Function: This BetterESS 12V 100Ah 1280Wh LiFePO4 battery model is equipped with an automatic self-heating function that will be activated by the BMS when the battery is connected to a charger at -4°F to 41°F (-20℃ to 5℃). The heating will be stopped when the battery temperature reaches 41°F (5℃) and then the battery will be formally charged. Plus, this function is powered by the Charger / Controller's current instead of the battery itself. More flexible and convenient to use.
Please note: The heating function is automatic and not manual. The heating module is an independent module that is not controlled by the Bluetooth app. Therefore, the heating function cannot be adjusted through the Bluetooth app. The heating function will only automatically activate when the battery temperature drops below 0°C (32°F).
Intelligent temperature control: The self-heating function automatically activates in environments between -20°C to 5°C (-4°F to 41°F).
Precise Adjustment: Automatically stops heating when the battery reaches 5°C/41°F and begins normal charging.
External Power Supply: Uses the charger/controller's current rather than consuming the battery's own energy for more flexibility and efficiency.
Notes on Use: The battery must be placed below 0°C for self-heating to activate.

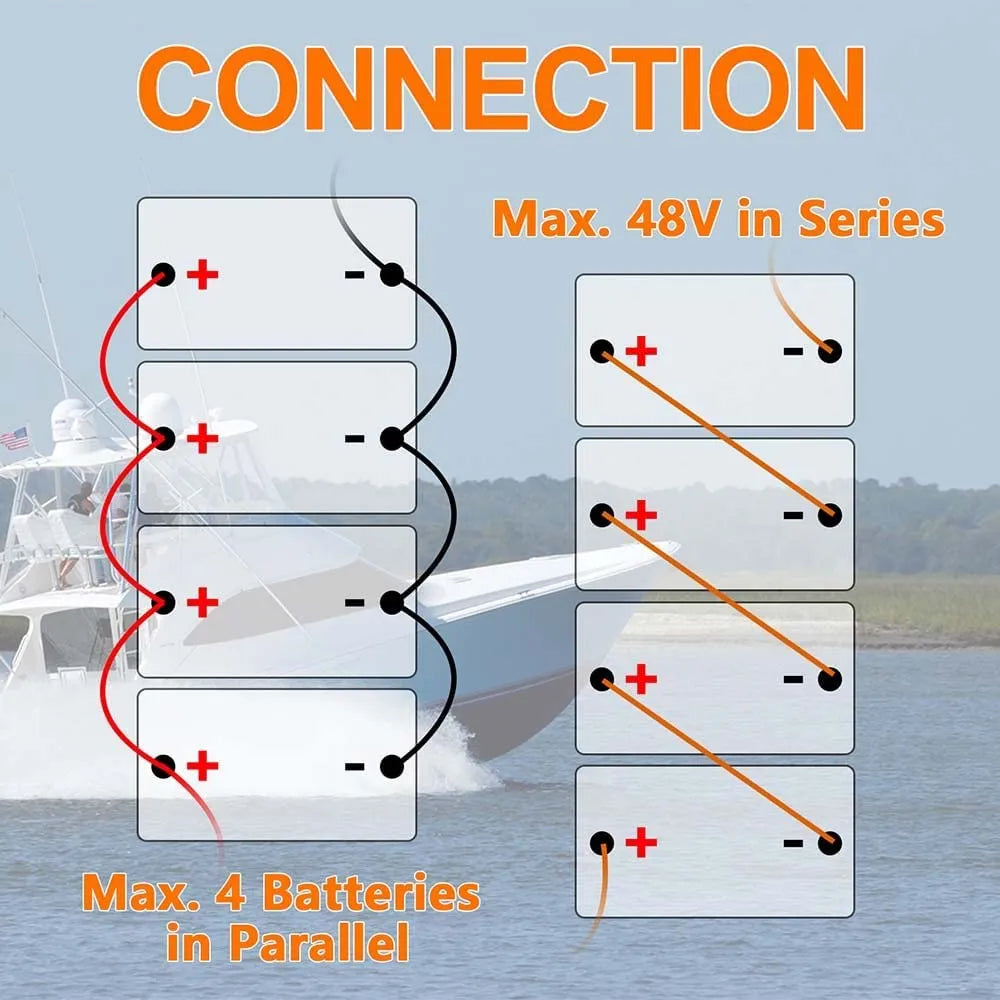

Auto-balancing Function: Easily connect multiple batteries in series and parallel (4S/4P) with the active balancing function, improving cell consistency and charging efficiency for your batteries in the long term.
Grade-A Cells And Upgraded BMS: BetterESS LiFePO4 Battery 12.8V 100Ah has built-in 200A BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, short circuits, and high-temperature cut-off for increased performance and longer life.
Deep Cycle & High Quality & Safe: Lithium iron phosphate batteries have CE certificates and pass UN 38.3 and MSDS tests. BetterESS LiFePO4 batteries are designed for long service life, high safety and stable performance. Compared with traditional lead-acid batteries, LiFePO4 batteries offer a longer cycle life, higher usable energy and lower maintenance requirements. With its excellent chemical stability and thermal stability, LiFePO4 chemistry is a reliable choice for RV, solar, backup power and off-grid applications.
Operating Temp:
No Self-Heating Functions:
Charge: 0°C to 50°C (32°F to 122°F);
Discharge: -20°C to 60°C (-4°F to 140°F).
Have Self-Heating Functions:
Charge: -20°C to 50°C (-4°F to 122°F);
Discharge: -20°C to 60°C (-4°F to 140°F).
IP65 Protection Class: The case is made with quality ABS plastic, [IP65] level waterproof protection, giving you more flexibility for indoor or outdoor installation.
Widely Used: The high-quality BetterESS LiFePO4 battery can be used in various fields, such as RVs, trailers, campers, solar systems, golf carts, trolling motors, boats, home backup systems, off-grid applications, DIY projects and more.
Warning:
(1) Please charge with a dedicated lithium battery charger;
(2) Do not reverse the positive and negative poles;
(3) There are safety devices in the battery pack. To ensure safety, do not dissect or change the structure of the battery;
(4) It is forbidden to directly connect the positive and negative terminals with metal;
(5) It is strictly forbidden to immerse the battery in water;
(6) It is strictly forbidden to drop, impact, squeeze, or puncture the battery;
(7) If the battery pack is not used for 3 months, please fully charge the battery pack according to the storage instructions. When it is not in use, it should be placed in a cool and dry environment.
Contact us:
More any questions about BetterESS Battery?
Email: service@better-ess.com
| Specification | LiFePO4 Battery – No Bluetooth & No Self-Heating | LiFePO4 Battery – With Bluetooth & Self-Heating |
|---|---|---|
| Battery Model | LiFePO4 Battery | LiFePO4 Battery |
| Nominal Capacity | 100Ah | 100Ah |
| Nominal Voltage | 12.8V | 12.8V |
| Energy | 1280Wh | 1280Wh |
| Max. Continuous Load Power | 1280Wh | 1280Wh |
| Charge Voltage | 14.6V | 14.6V |
| Max. Continuous Discharge Current | 100A | 100A |
| Max. Discharge Current (5 Seconds) | 200A | 200A |
| Preferred Charger | 14.6V20A | 14.6V20A |
| Charge Method | CC/CV | CC/CV |
| Smart Daly BMS (8S) | 100A | 100A |
| Bluetooth APP Name Download | / | SMART APP |
| Self-Heating Function | No | Yes |
| Terminal Type | M8 | M8 |
| Water Dust Resistance | IP65 | IP65 |
| Case Material | ABS | ABS |
| Cycle Life | 4000–8000 times | 4000–8000 times |

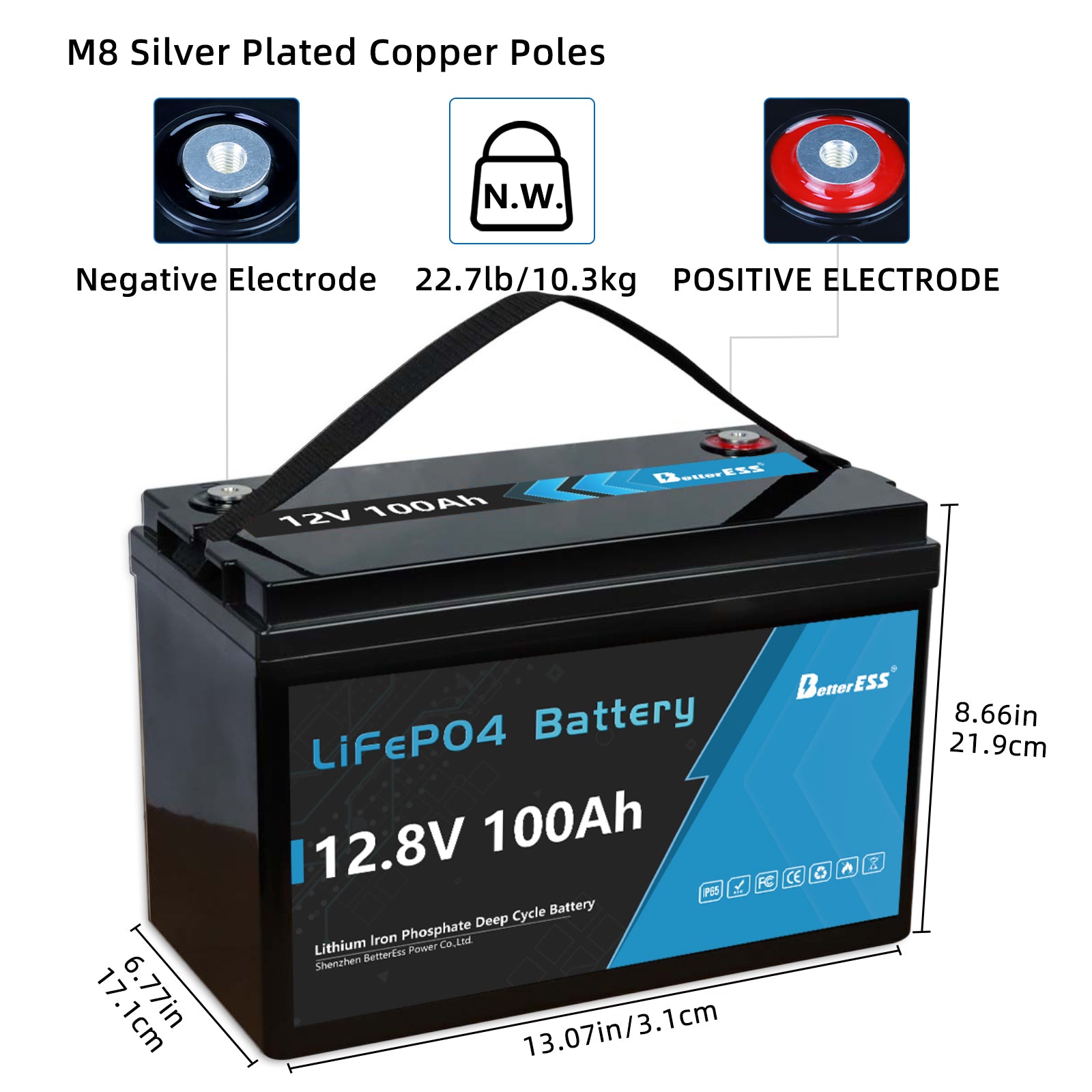

| Dimension (in/mm) | L12.99 × W6.77 × H8.46 in (L330 × W172 × H215 mm) |
L12.99 × W6.77 × H8.46 in (L330 × W172 × H215 mm) |
| Weight | Approx. 22.7lb / 10.3kg | Approx. 22.7lb / 10.3kg |
| Working Temp. Range (Charge) | 32℉–122℉ / 0℃–50℃ | -4℉–122℉ / -20℃–50℃ |
| Working Temp. Range (Discharge) | -4℉–140℉ / -20℃–60℃ | -4℉–140℉ / -20℃–60℃ |
| Storage Temperature | 14℉–122℉ / -10℃–50℃ | 14℉–122℉ / -10℃–50℃ |
| Series & Parallel | 4S / 4P | 4S / 4P |
Q1: What are the dimensions of the BetterESS 12V100Ah LiFePO4 battery?
The BetterESS 12V100Ah LiFePO4 battery measures 13.07 x 6.77 x 8.66 inches (332 x 172 x 220 mm).
These dimensions making it easy to fit into a wide range of battery compartments in RVs, boats, and other vehicles.
Q2: What safety features does the battery include?
The battery includes a comprehensive Battery Management System (BMS) that offers protections against over-charging, over-discharging, and over-current, ensuring safe and reliable operation.
Q3: What's the function of the Bluetooth?
The Bluetooth can track the status of the battery, including SOC, charging/discharging state, battery voltage, current, power, remaining capacity, battery temperature, cycle times etc.
It can also control the battery's discharge and shut down the battery.
Q4: Does the BMS have low temperature charging disconnect?
Yes, our BMS has low temperature protection cut-off function to protect the battery from low temperature damage and extend its life.
Low temp cut off protection (Charge): 0℃ ± 4℃ (32°F ± 7.2°F)
Low temp cut off protection (Discharge): -20℃ ± 4℃ (-4°F ± 7.2°F)
Q5: How to activate the battery when the BMS cuts it off for protection？
If the BMS has cut off the battery for protection, you will need to disconnect any loads connected to the battery and set it aside for approximately 30 minutes.
After this period, the battery will automatically recover to its normal voltage and can be used again after being fully charged.
Q6: How long do BetterESS batteries last?
Our LiFePO4 lithium iron batteries can provide 4000+ cycles, which is significantly more compared to the 300-500 cycles typically found in lead-acid batteries.
The service life of LiFePO4 batteries is 8 to 10 times longer than standard lead-acid batteries.
Q7: What are the installation requirements for this battery?
The battery can be installed in any position as it does not contain acid.
Ensure that the battery is securely mounted to prevent vibrations and impacts during movement.
Q8: Are there any special handling or maintenance tips for this battery?
The LiFePO4 battery requires minimal maintenance.
However, it is recommended to regularly check connections and ensure the battery is kept in a dry and ventilated space.
Avoid exposure to extreme temperatures to prolong battery life.
