Product Specification
|
MODEL |
BE-NaCP-AO-MB48200-5KW-EU-PV500V |
| Battery Model | BE-NaCP-MB48200-100A-HWB |
| Number of batteries | 1 |
| Battery Energy | 9.6KWH |
| Battery Capacity | 200AH |
| Weight(Approx.) | 175KG |

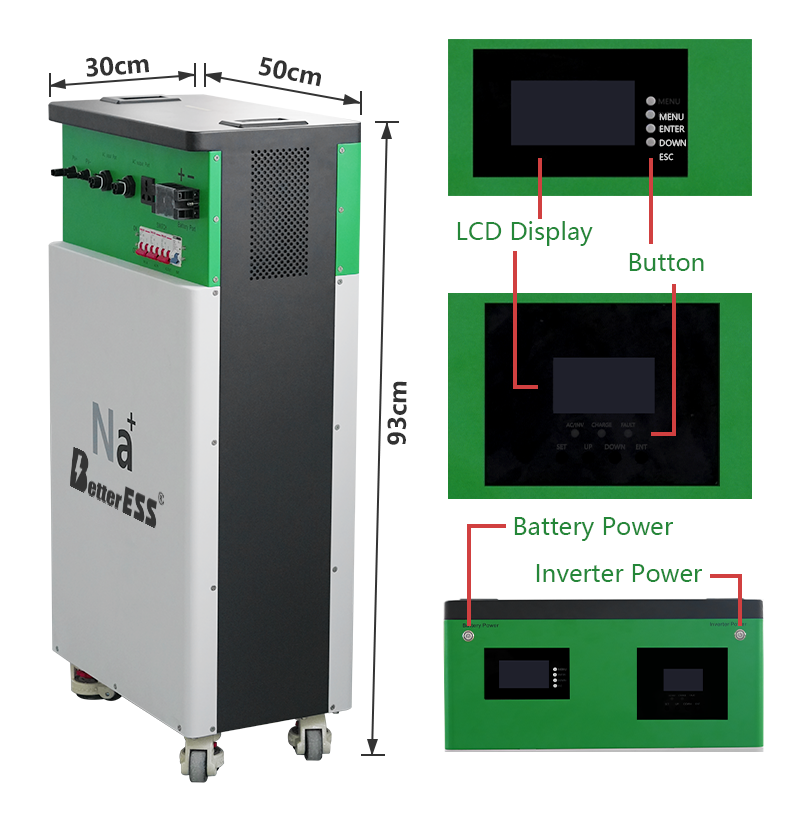

| Dimension L×D×H | 1005×520×300 |
| Battery Type | Sodium lon |
| Battery Rated Voltage | 48.0V |
| Battery Working Voltage Rang | 40.5 ~59.5V |
| Maximum Charging Current | 150A |
| Maximum Discharging Current | 150A |
| DOD | 80% |
| Designed Life-span | >3000 Cycles @0.2C/25℃ Charging/Discharging at 80%DOD,Until 80%Capacity. |
| INVERTER TECHNICAL SPECIFICATION | |
| Inverter Model | HSI 5500P |
| Solar Charge Type | MPPT |
| Maximum Output Power | 6000W |
| PV Charging Current Range | 0-100A |
| Maximum PV input current | 22A |
| PV Operating Voltage Range | 120-500Vdc |
| MPPT Voltage Range | 120-450Vdc |
| AC CHARGE | |
| Maximum charge current(can be set) | 60A |
| Charge current error | ±3Adc |
| Charge voltage range | 40-58Vdc |
| Short circuit protection | Circuit breaker and blown fuse |
| Circuit breaker specifications | 40A |
| Overcharge protection | Alarm and stop charging after 1 minute |
| AC OUTPUT | |
| Rated Output Power | 5500W |
| Maximum Output Current | 24A |
| Frequency | 50Hz±0.3Hz/60Hz±0.3Hz |
| Rated voltage | 230Vac |
| BATTERY INVERTER OUTPUT | |
| Rated Output Power | 5500VA |
| Max.Peak Power | 11000VA |
| Power Factor | 1 |
| Rated Output Voltage (Vac) | 230Vac |
| Frequency | 50Hz |
| Auto Switch Period | <15ms |
| THD | <3% |
| GENERAL DATA | |
| Communication | RS485/CAN/WIFI |
| Storage time/temperature | 6 months @25℃;3 months @35℃;1 months @45℃; |
| Charging temperature range | 0一45℃ |
| Discharging temperature range | -10一45℃ |
| Operation Humidity | 5%一85% |
| Nominal Operation Altitude | <2000m |
| Cooling Mode | Force-Air Cooling |
| Noise | 60dB(A) |
| Ingress Protection Rating | IP20 |
| Recommended Operation Environment |
Indoor |
| Installation Method | Vertical |
| System Voltage | 51.2 V |
| Output Power Range | 10kWh |
| Grid connection | Off grid |
| Battery Type | LiFePO4 |
| System Type | ESS |
| Model Number | 51.2V 200Ah |
| Brand Name | BetterESS |
| Place of Origin | Guangdong, China |
| Communication Port | CAN, RS232, RS485 |
| Product name | Home energy storage system |
| Cycle life | 6000 Times |
| Application | Solar Energy Storage Systems, Uninterruptible Power Supplies |
| Inverter Type | 5kw Off Grid Solar Inverter |
| OEM/ODM | Acceptable |
| Package | Wooden Box |
| Battery cell | Sodium ion battery 200Ah |
Q: What is the life expectancy of a Lithium battery?
A: Typical estimated lifetimes for LiFePO4 batteries are 5-15 years or 4000 to 8000 charge cycles. A charge cycle is a cycle of use from full charge to full discharge to full charge.
Q: What should l do when l receive cells?
A: After receiving the battery, please immediately check whether the insulating layer of the battery (usually a blue film) is damaged and whether the QR code is scratched. Also use a multimeter to check the voltage/internal resistance/capacity. Be sure to charge the battery to full voltage before using it for the first time.
Q: How are LiFePo4 batteries stored?
A:The most important thing is the temperature. LiFePO4 batteries are well stored at room temperature (15°C~25°C), but too low temperature may damage the battery. In an icy environment, you need to pay attention to the insulation of the battery. Alternatively, the battery can be stored in a dry and ventilated room at 50% SOC.
