BetterESS 51.2V 400Ah 20kWh All-in-one Mobile ESS Built-in 10kW or 12KW Hybrid off-grid Three Phase Inverter 220V/230V,BMS,Equalization Module

Free Shipping & TAX: Our current price is...
$5,551.00 USD
$5,843.00 USD
$5,551.00 USD
Speichern $292.00
Bitte beeilen Sie sich! 1000 noch auf Lager
Model: 51.2V 400Ah 20kw
Rated Power of Hybrid Inverter: 10kw
Wifi: Have
Zwischensumme: $5,551.00
10 Kunden sehen sich dieses Produkt an

Free Shipping

5 Years Warranty

Lifetime Customer Support

Free Shipping & TAX:

Our current price is the final price, free shipping and tax, you don't need to pay any other fees.

This model will be shipped from China, about 45-60 working days after shipment!

【Energy Expansion】: BetterEss 51.2V 20kWh All-in-one battery built-in 10KW or 12KW inverter, it can connect 20KWH battery (TW-MB51400-200A-HWB-CN) to expand capacity, and the battery model must be the same.

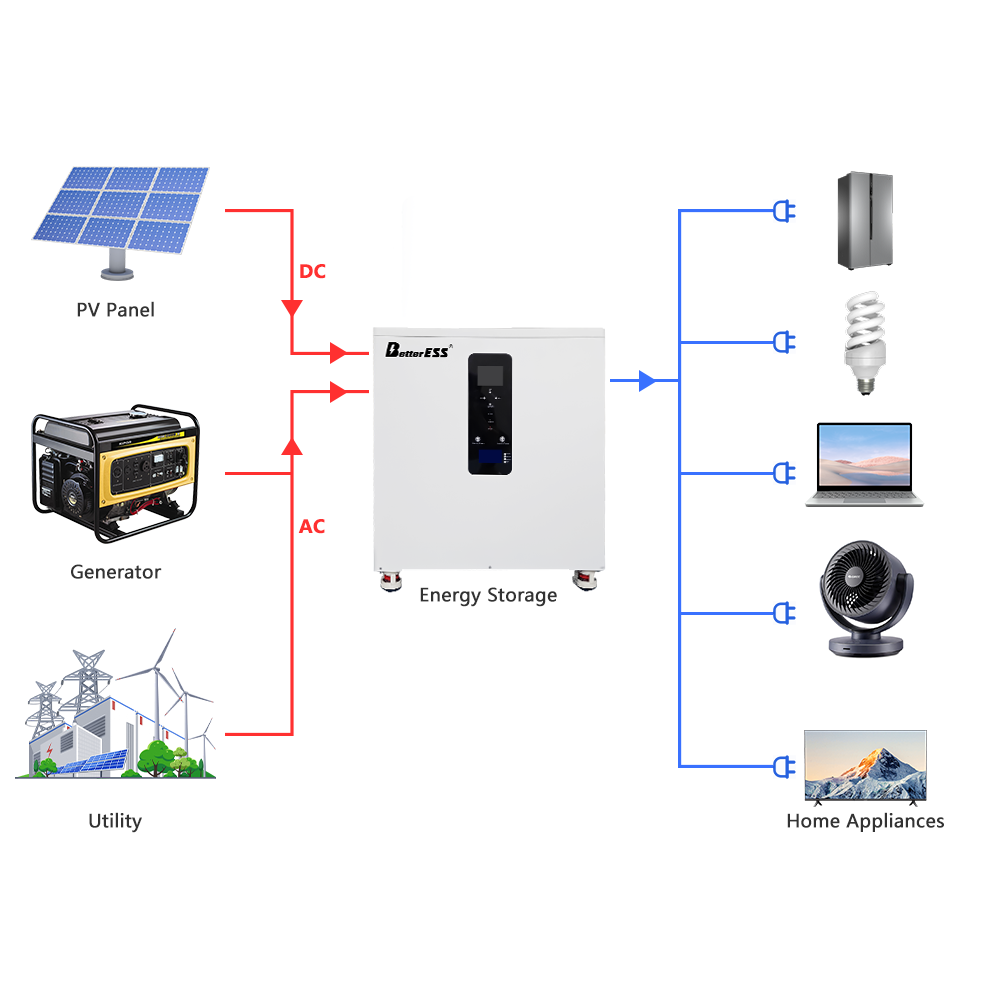

【Usage】: BetterEss 20kWh All-in-one lifepo4 lithium battery built-in 10kw inverter, and there are 2 options---single phase or three phase, perfect for  solar home systems, power outages, off-grid living.

【Feature】: BetterEss 20kWh All-in-one ESS offers outstanding safety, high energy density, long life, excellent temperature performance, and eco-friendly power generation.

Downloadable documents
User manuals



Product's Details:

Model BE-AO-MB51400-10KW-EU

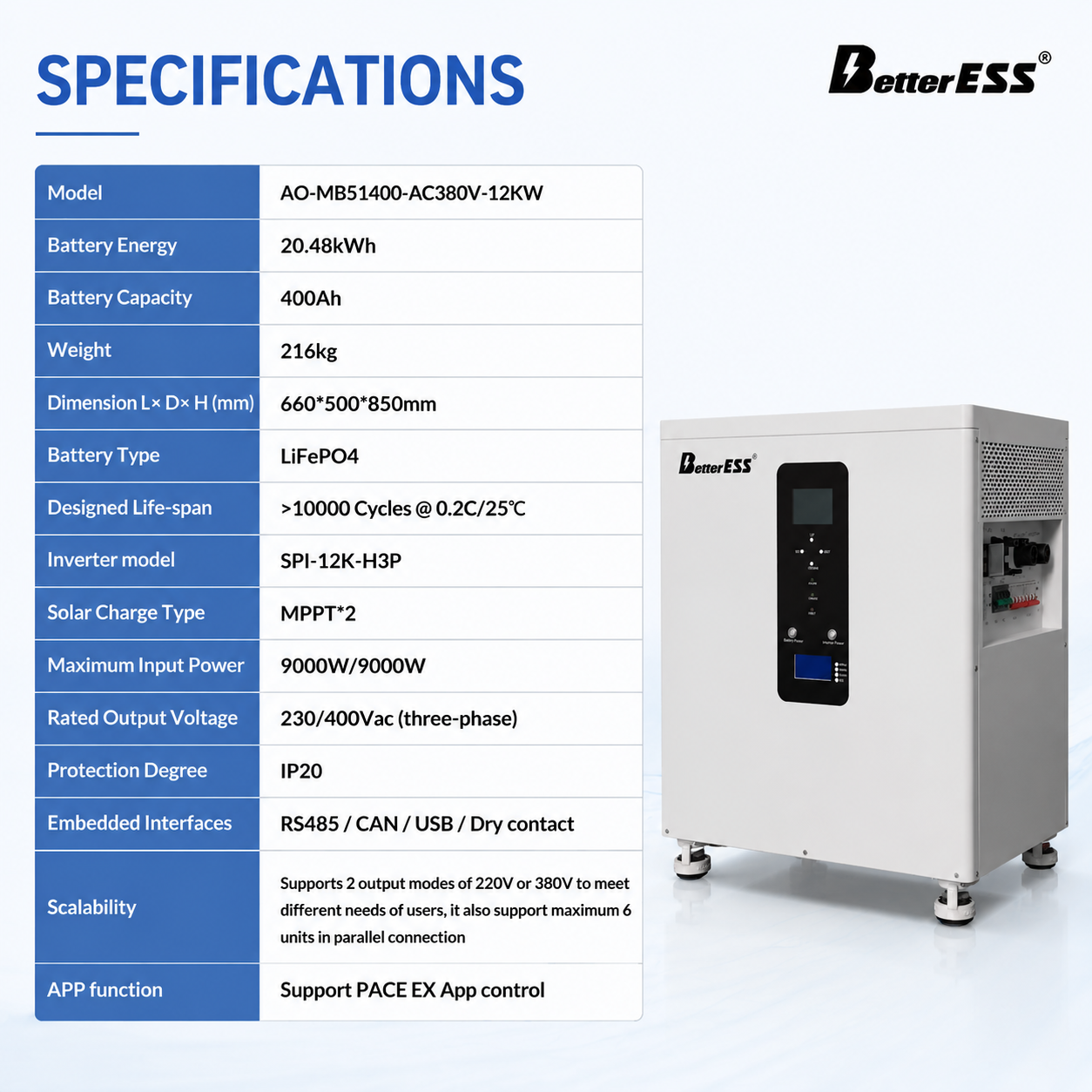

BATTERY TECHNICAL SPECIFICATION
Battery Energy 20480wh
Battery Capacity 400Ah
Battery Type LiFePO4
Battery Rated Voltage 51.2V
Battery Working Voltage Range 44.8~57.6V
Maximum Charging Current 200A
Maximum Discharging Current 200A
DOD Designed Life-span 80% >6000 Cycles @ 0.2c/25'℃; charging/Discharging at 80%DoD,Until 80%
INVERTER TECHNICAL SPECIFICATION
INVERTER TECHNICAL TW-ASF48100S200-H
PV CHARGE
Solar Charge Type MPPT*2
Maximum Input Power 5500W+5500W
Maximum PV Charging Current 22/22A
Maximum PV Operating Voltage 500Vdc+500Vdc
MPPT Voltage Range 125-425Vdc
AC CHARGE
Input Voltage Range 90-270Vac
Input Frequency Range 50/60H
Bypass Overload Phase Current 32A
ACOUTPUT
Rated Output Power 10000W
Frequency 50Hz+0.3Hz/60Hz+0.3Hz
Switching Time 10ms(Typical value)
GENERAL DATA
Communication RS485/CAN/WIFI
Storage Time/Temperature 6 months @25℃;3 months @35℃;1 months @45℃;
Charging Temperature Range 0〜45℃
Discharging Temperature Range -10〜45℃
Operation Humidity 5% 〜 85%
Nominal Operation Altitude <2000m
Cooling Mode Force-Air Cooling
Ingress Protection Rating IP20
Recommended Operation Environment Indoor
