【Feature】

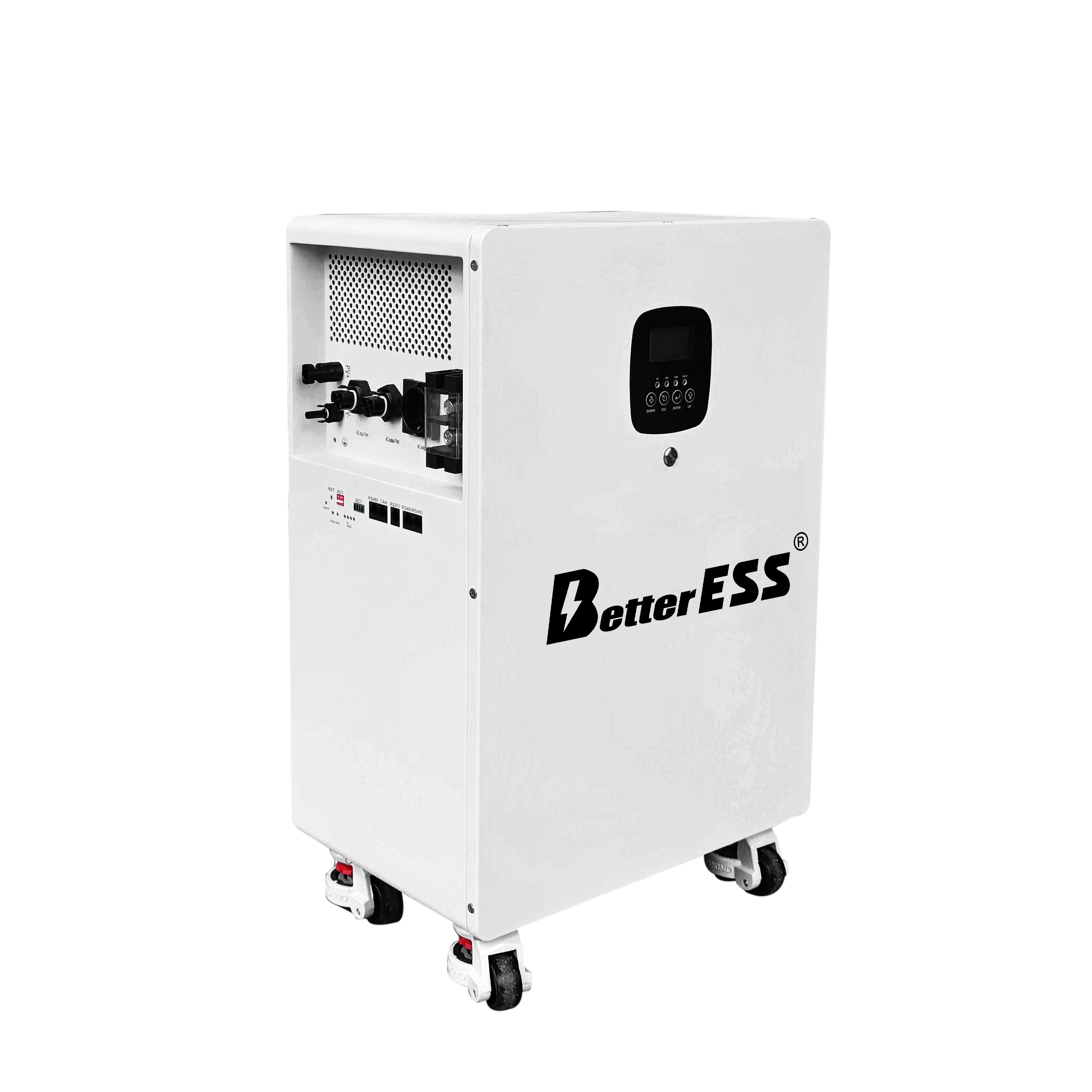

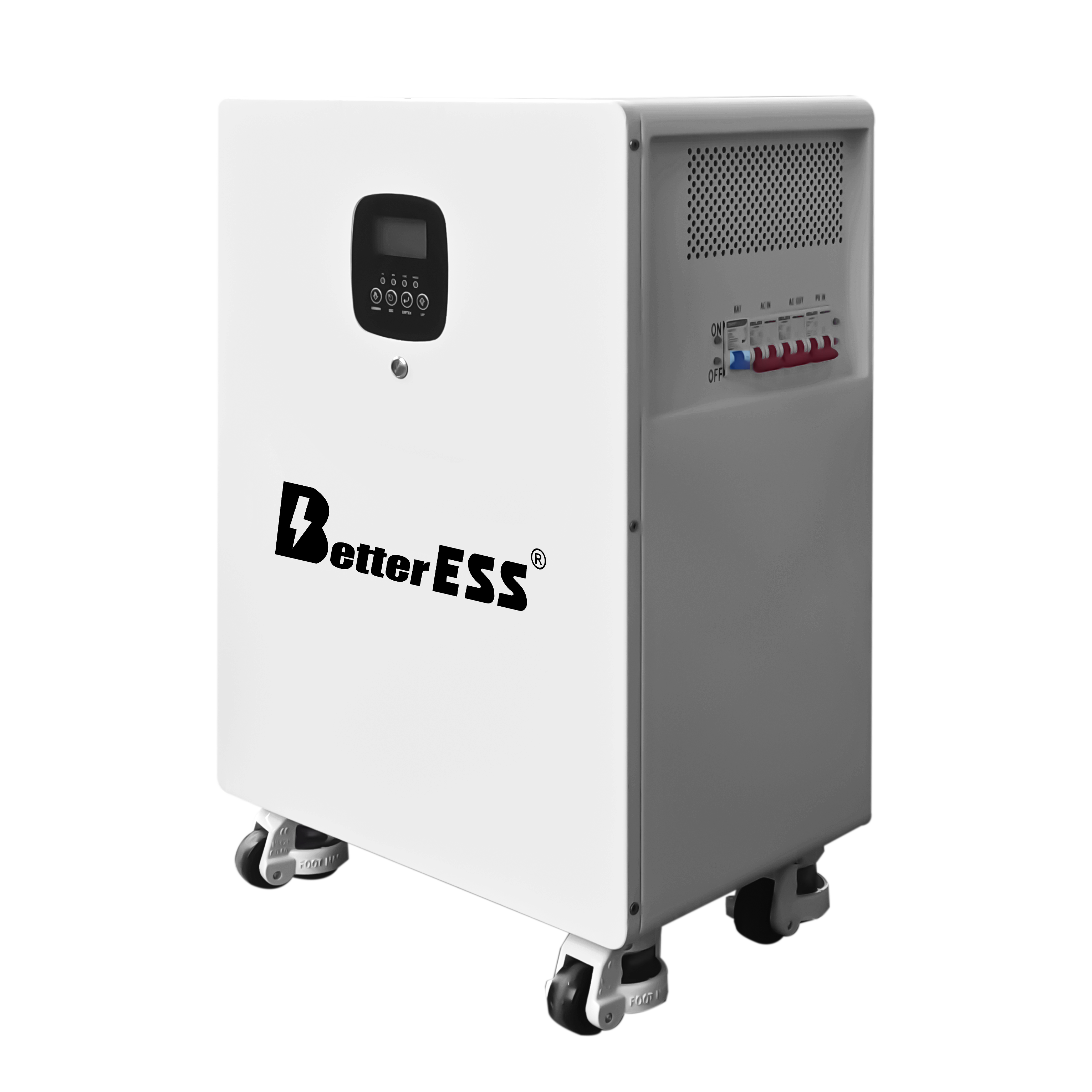

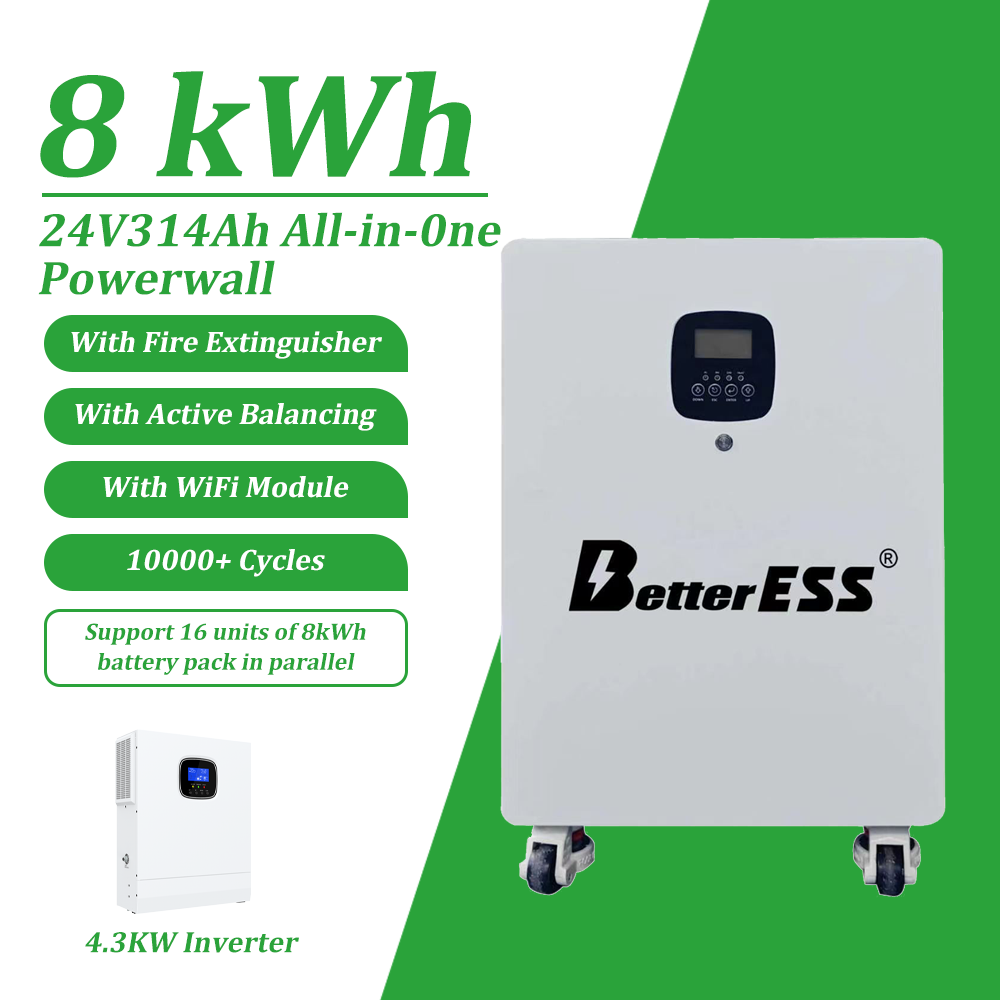

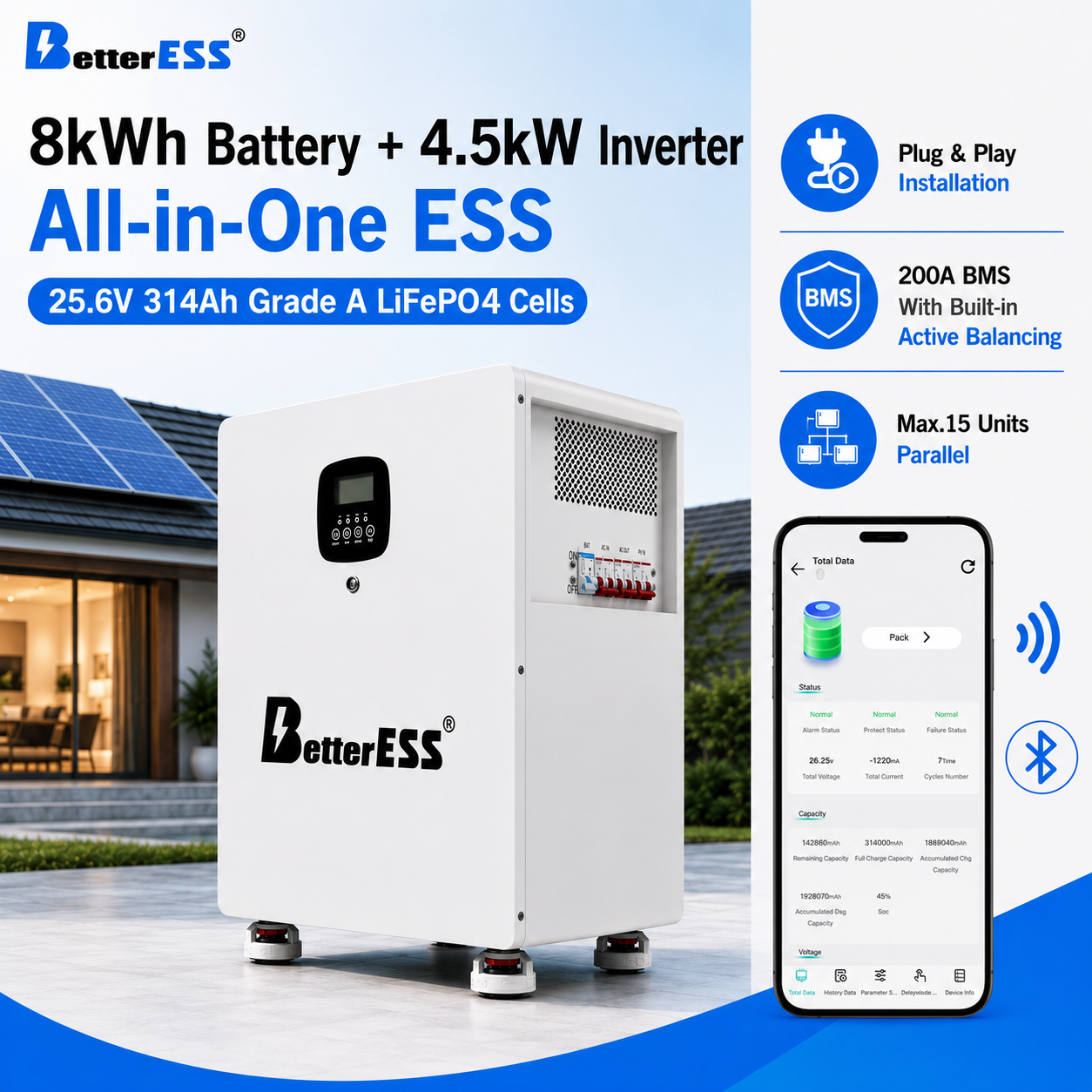

BetterESS 25.6V 314Ah 8kWh All-in-one battery built-in 4.3KW inverter with active balancer module and lifepo4 temperature-sensitive fire extinguisher; Battery and inverter integrated into one, easy to install, plug and play.
【Energy Expansion】

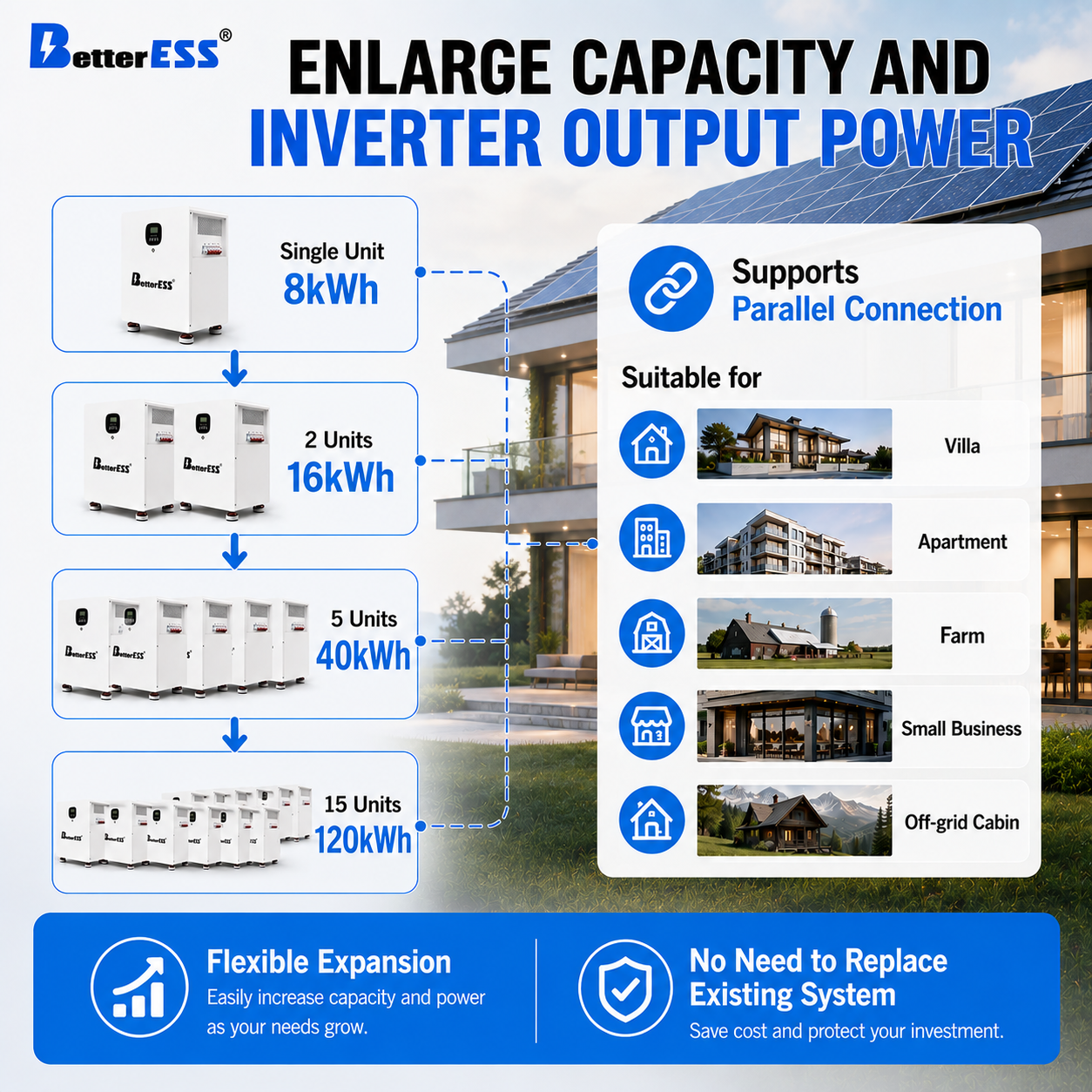

BetterESS 8Kwh All-in-one battery built-in 4.3KW inverter, it can connect all in one battery of the same model to form three phases system or just to expand capacity; It can also connect 8KWH battery (without inverter) to expand capacity，but the battery model must be the same.
【Usage】

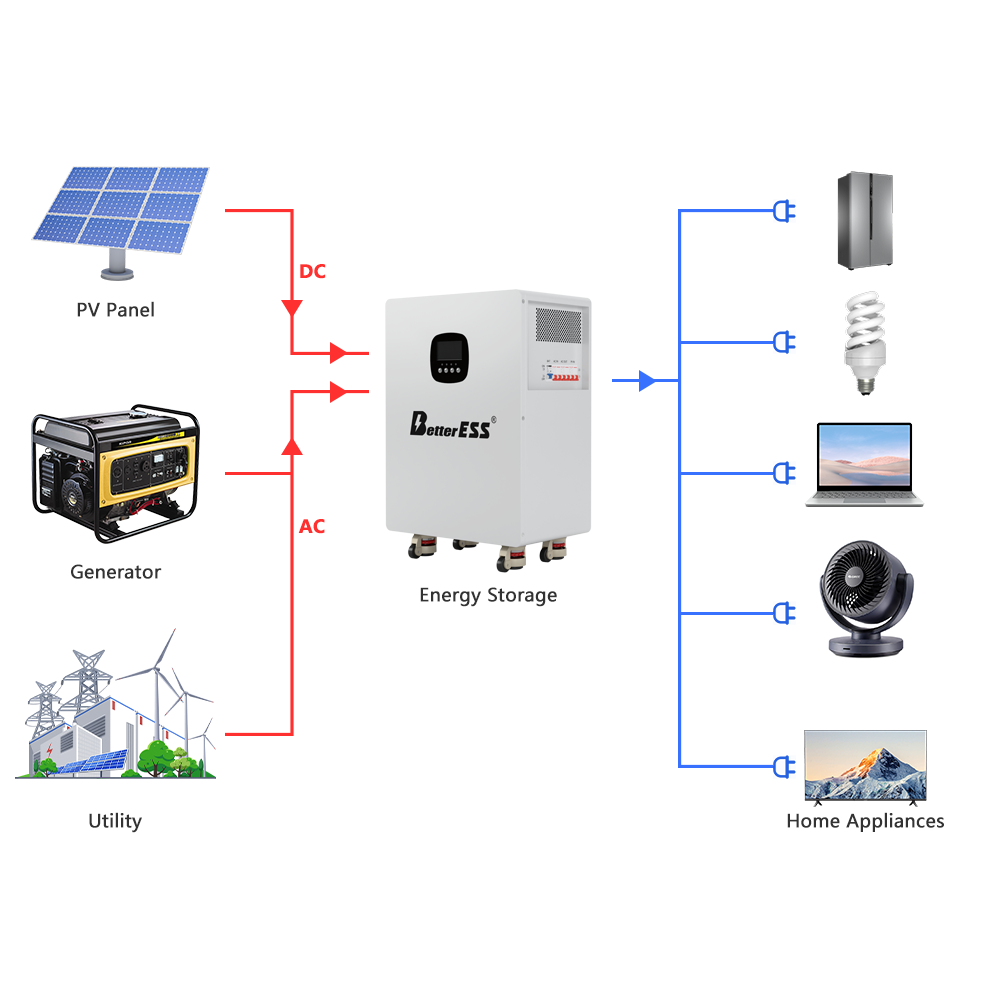

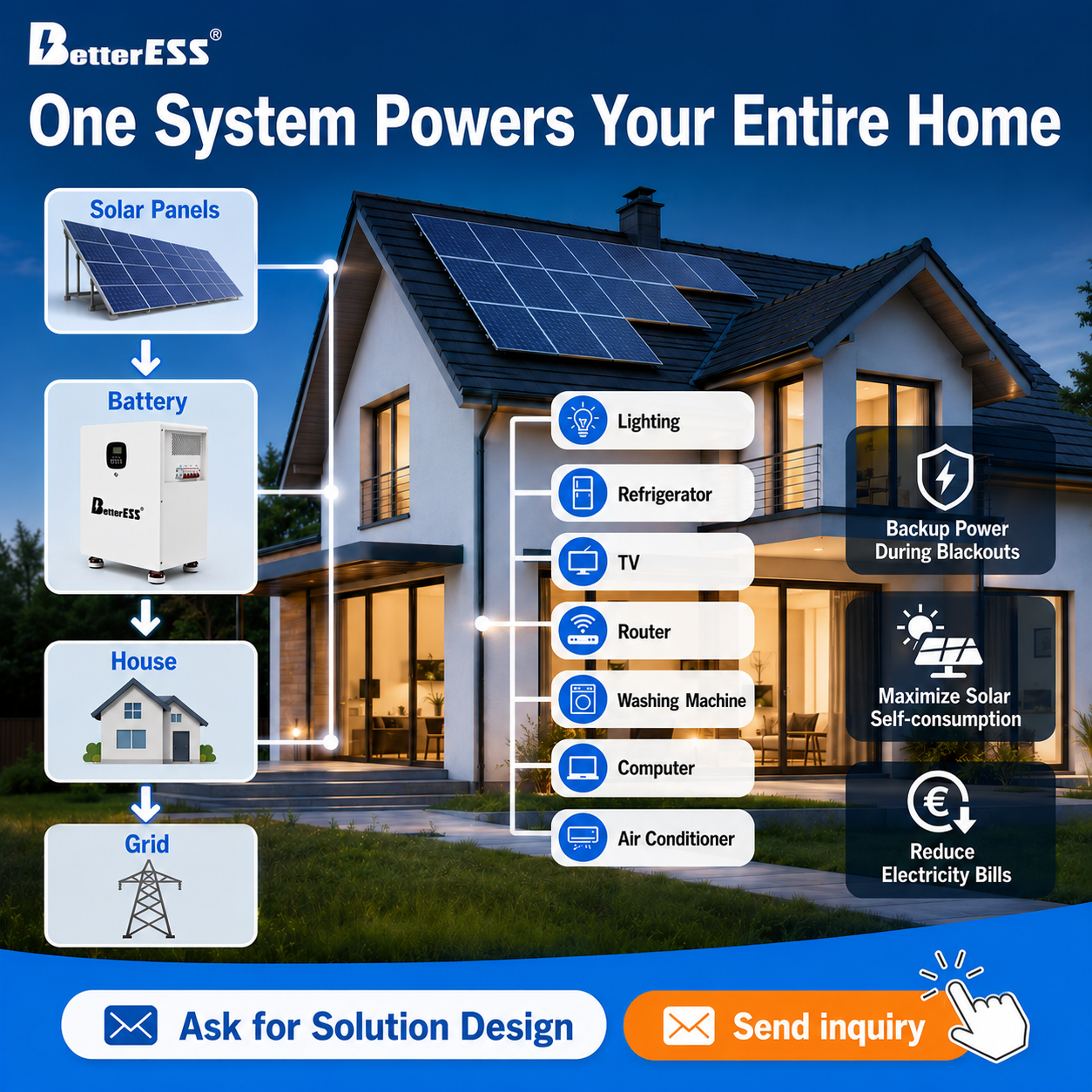

BetterESS 8Kwh All-in-one ESS perfect for solar home systems, power outages, off-grid living.
Precautions
• No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
• Please check the orientation of the positive and negative terminals before packaging.
• Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Prohibited Matters
1. Do not charge beyond the maximum charging rate.
2. Do not disassemble or modify the battery.
3. Do not throw or hit the battery.
4. Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
5. Do not mix with other types of batteries or modular units.
6. Do not excessively squeeze the battery during use.
7. Do not place the battery in a high temperature greater than 60°C.
8. Do not use conductive materials to connect the positive and negative terminals (such as metals, wires)
📧 Contact us :
More any questions about the BetterESS Power Battery?
Email: service@better-ess.com
| Model | 25.6V 314Ah 8kWh All-in-One Energy Storage System |
| Dimensions | 850 × 820 × 330 mm |
| Weight | 80kg |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Configuration | 8S1P (8 Cells in Series) |
| Nominal Capacity | 314Ah |
| Nominal Energy | 8.04kWh (Rated 8kWh) |
| Nominal Voltage | 25.6V |
| Battery Working Voltage Range | 22.4V - 28.8V |
| Max PV Input Power | 5000W |
| MPPT Tracking Voltage Range | 40VDC - 450VDC |
| Max PV Input Voltage (VOC) | 500VDC |
| MPPT Channels | 1 MPPT |
| Built-in Inverter Power | 4300W Hybrid Inverter |
| Rated Output Voltage | 220VAC / 230VAC / 240VAC |
| Grid Voltage Range | 187VAC - 264VAC |
| Rated Output Frequency | 50Hz / 60Hz |
| Rated Output Current | 19.5A / 18.7A / 17.9A |
| Power Factor | >0.98 (Rated Power) |
| Battery Rated Voltage | 24VDC |
| Battery Voltage Range | 21V - 30V (Default) |
| Max PV Charging Current | 150A |
| Max AC Charging Current | 100A |
| Max Charging Current | 150A |
| Battery Management System (BMS) | Built-in Intelligent BMS with Active Balancing |

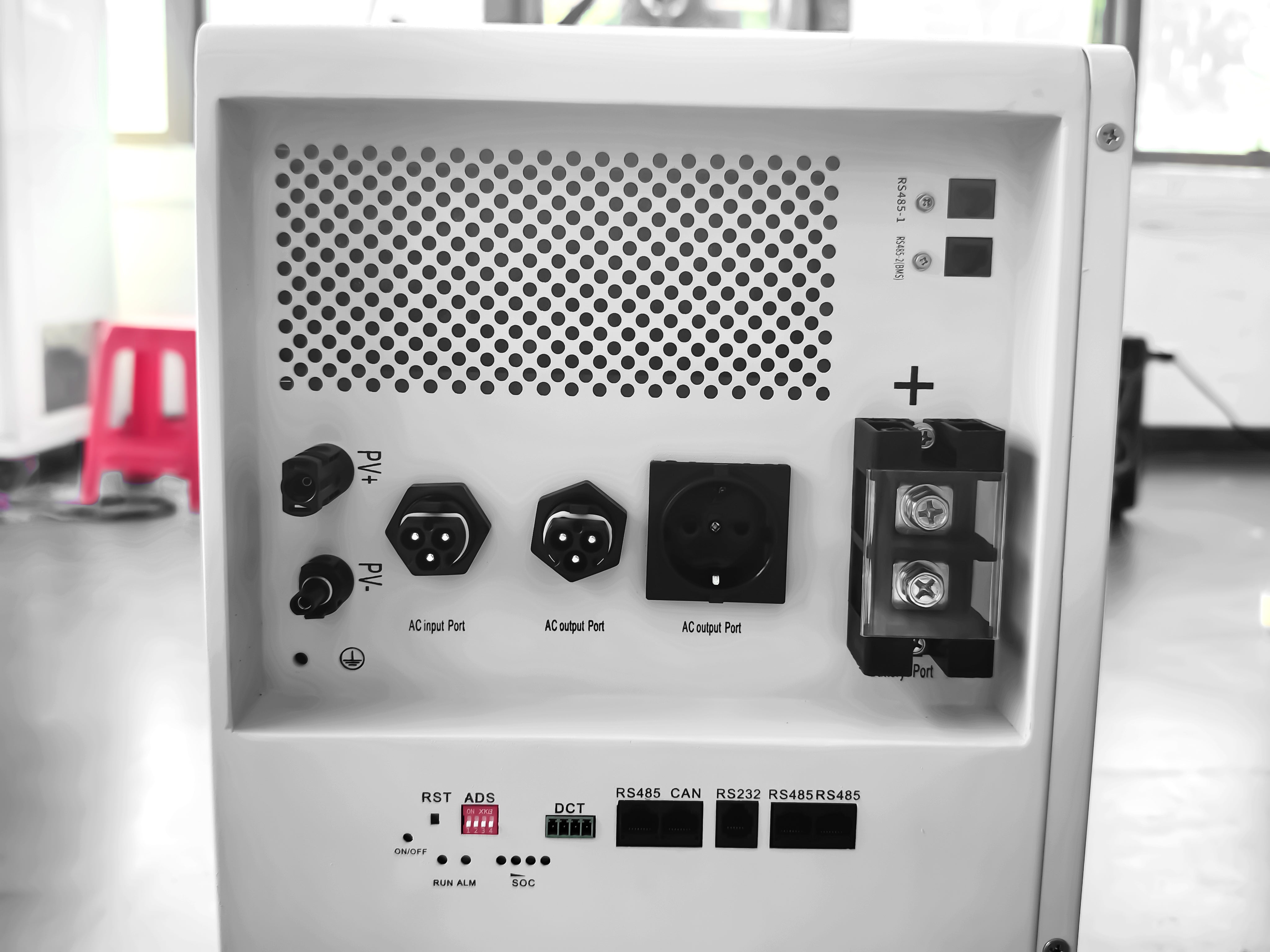

| Communication | RS485 / CAN / RS232 |

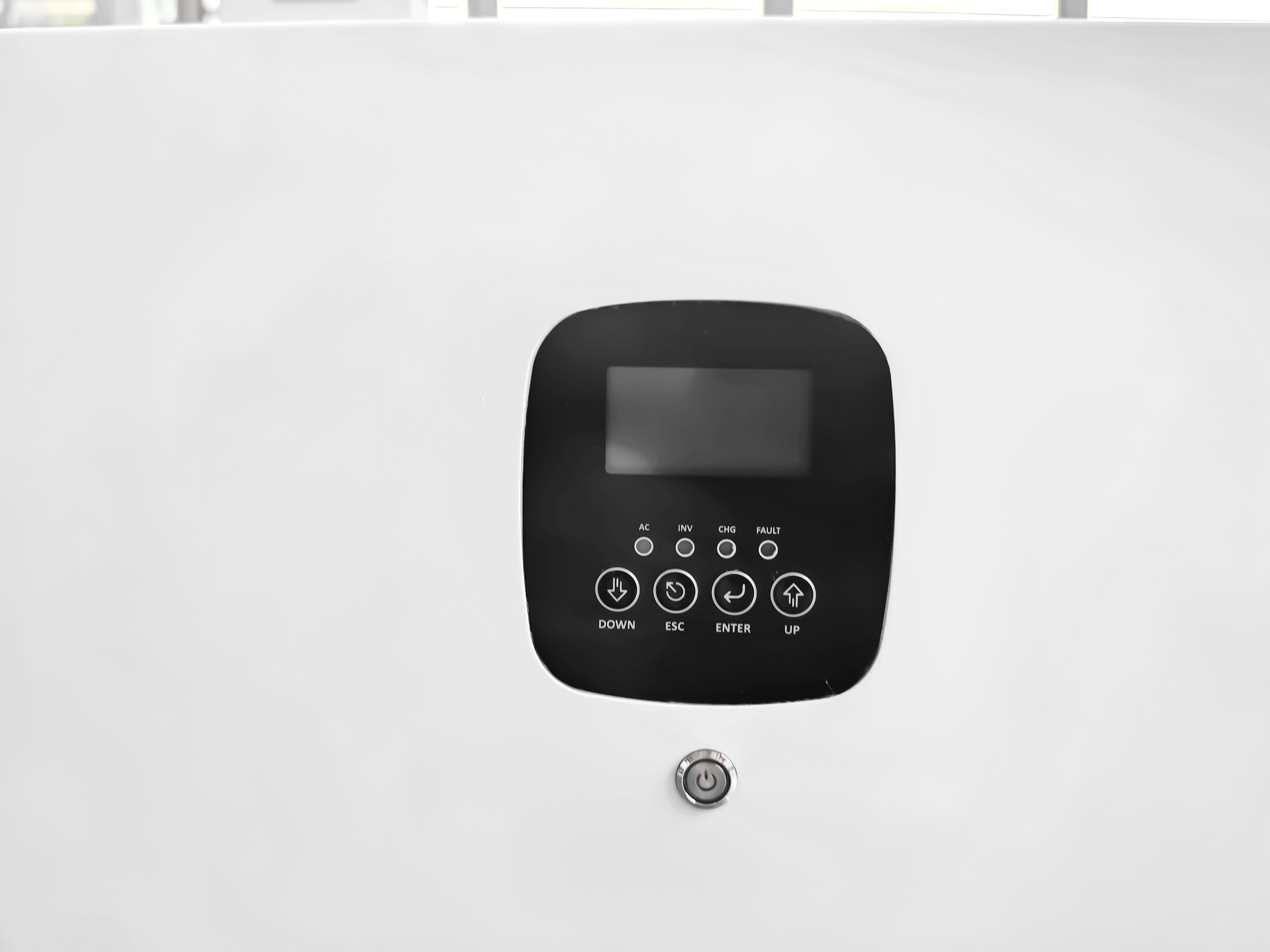

| Monitoring | LCD Display & Mobile APP (Optional) |
| Operating Temperature | Charging: 0℃ to 45℃ Discharging: -20℃ to 60℃ |
| Storage Temperature | -20℃ to 60℃ |
| Cycle Life | >6000 Cycles |
| Application | Home Solar Energy Storage / Backup Power / Off-grid System |
| Protection | Over Charge, Over Discharge, Over Current, Short Circuit, Over Temperature Protection |
